Model WPC-9000Owner’s manual
4
Assembly

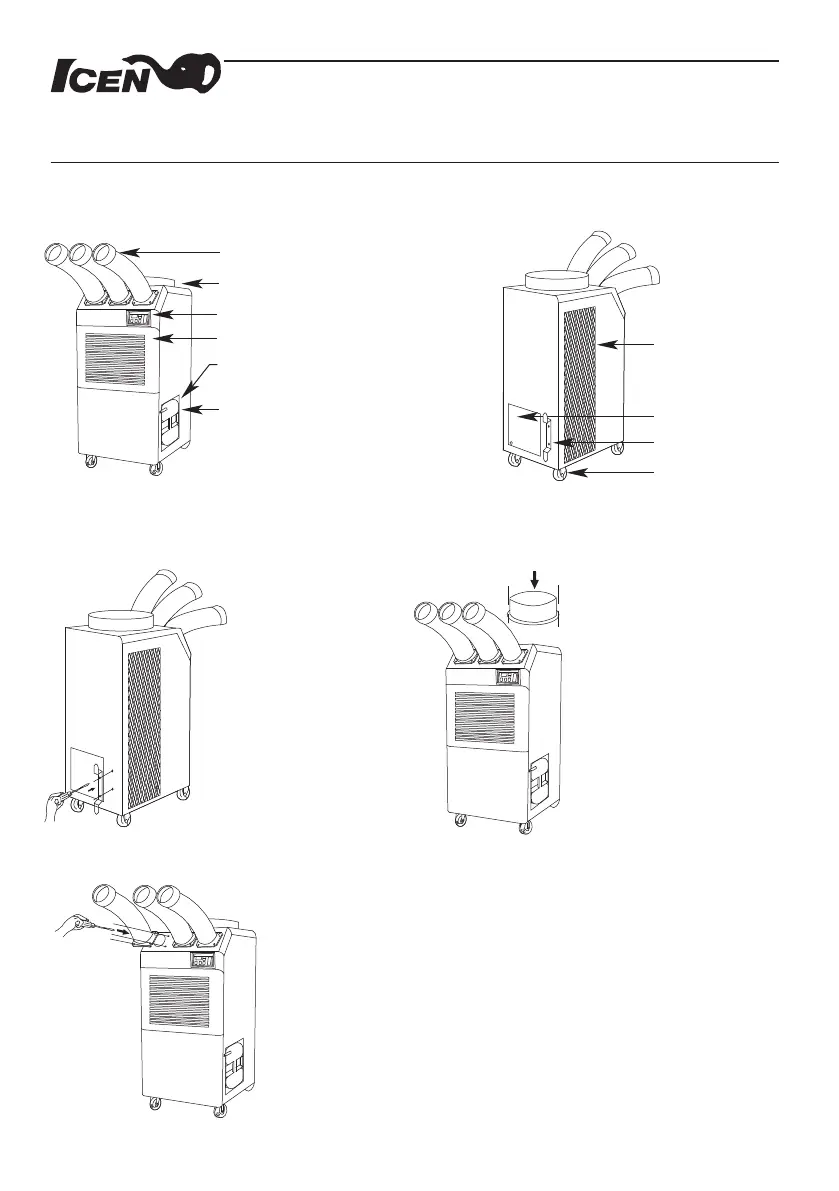

COMPONENT PARTS
Cool air outlet hose
Front and Right Side View
Display / Control board
Top fan exhaust flange
Evaporator / filter
Guide bar for condensate water tank
Condensate water tank (Water level is
sensed, and the unit operation is stopped
when tank is full. An alarm will be
displayed. Empty the tank and replace to
resume operation)
1.Take out the cord holder from
the accessory box.
2.Place the cord holder on the
back side of air conditioner.
3.Use screws (enclosed inside
of accessory box with cord holder)
to install the cord holder on the
air conditioner as shown in Figure 3.
1.Remove cool air outlet hose(s) from carton.
2.Place the cool air outlet hose(s) on the front top
of air conditioner.
3.Use screws (enclosed inside of box with
cool air outlet hose(s) to install the cool air outlet hose(s)
on the air conditioner as shown in Figure 5.
POWER CORD HOLDER
DISCHARGE DUCTS/SUPPLY AIR DUCT
Figure 2
Figure 3
Figure 5
Back and Left Side View
Condenser / filter
Power cord holder
Caster
Electrical access
panel
1.Remove the top fan exhaust
flange from carton.
2.Place the top fan exhaust flange
on the top of air conditioner.
3.Use screws (enclosed inside
of box with the top fan exhaust
flange) to install the top fan
exhaust flange on air conditioner
as shown in Figure 4.
TOP FAN EXHAUST FLANGE
Figure 4
