ASSEMBLY
In order to best protect the generator while in the package, this product comes with the wheels and
handles disassembled. Please complete the following assembly steps before proceeding to use the
generator. For ease of assembly, we recommend attaching the components in the order listed below.
If after reading this section, you are unsure about how to perform any of the steps, please call (800)
232-1195 M-F 8-5 CT for customer service.
WARNING: This generator is heavy. Some assembly procedures may require two people.
Attach Handles
The handles attach to the generator frame at the same side as the recoil starter. To attach the handles
to the generator frame, perform the following steps:
1. Take one handle and line up the holes in the handle bracket with the holes on the generator
frame as shown in figure 1.
2. Slide a bushing through the holes in the handle and generator frame to hold the handle onto
the frame.
3. Secure the bushing in place with a cotter pin.
4. Repeat steps 1-3 for the other handle.
LINE UP
HANDLE

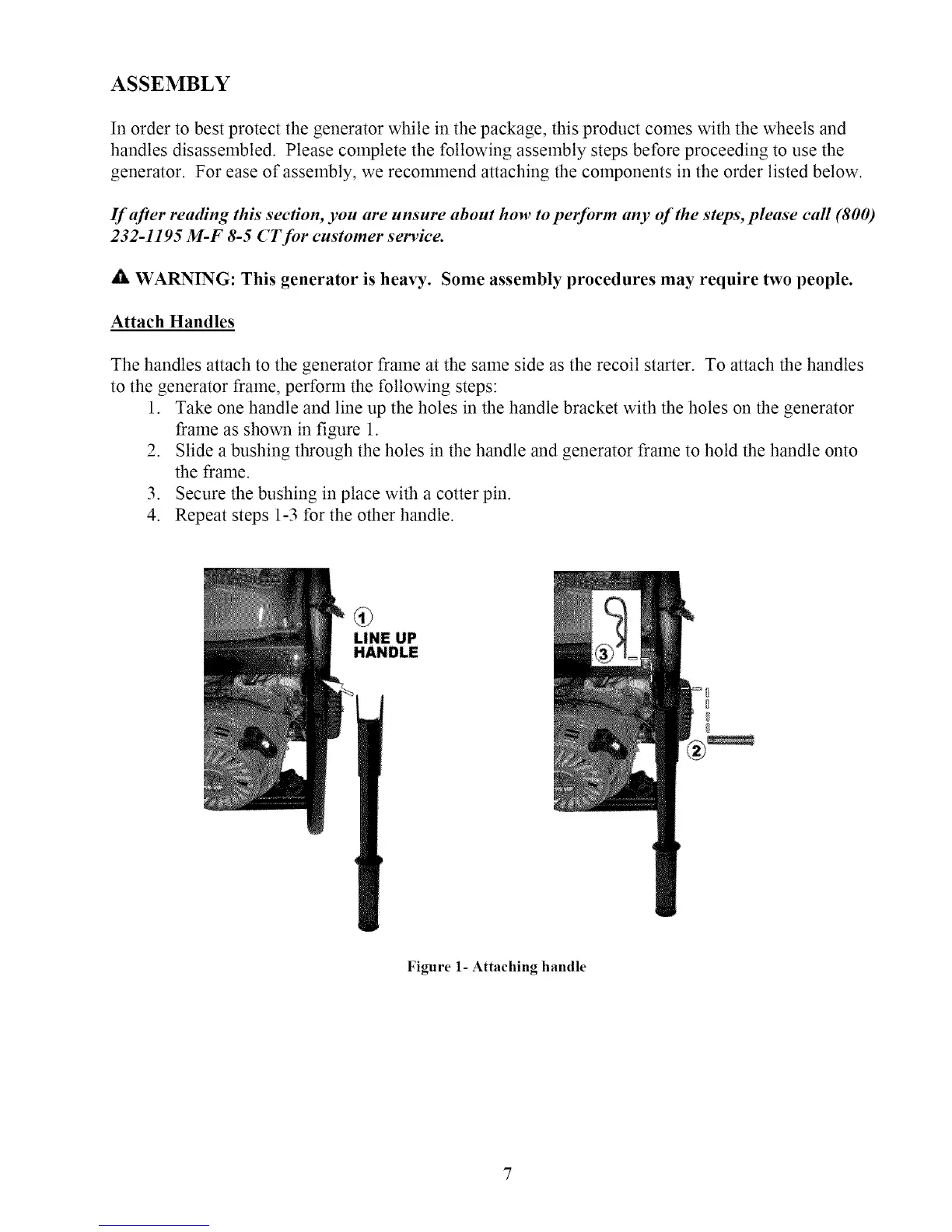

Figure 1- Attaching handle
