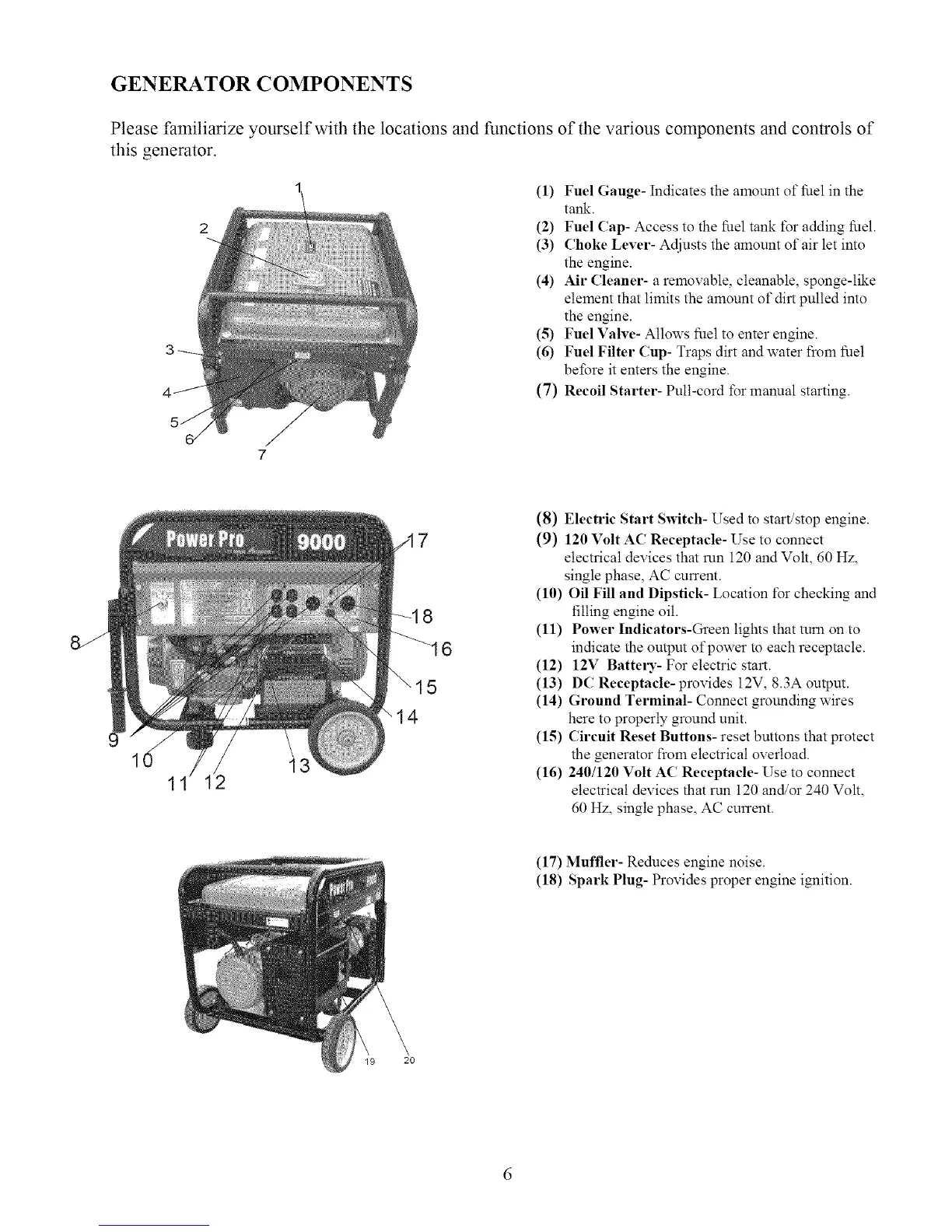

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and controls of
this generator.
(1) Fuel Gauge- Indicates the amount of fuel in the
tank.
(2) Fuel Cap- Access to the fuel tank for adding fuel.
(3) Choke Lever- Adjusts the amount of air let into
the engine.
(4) Air Cleaner- a removable, cleanable, sponge-like
element that limits the amount of dirt pulled into
the engine.
(5) Fuel Valve- Allows fuel to enter engine.
(6) Fuel Filter Cup- Traps dirt and water from fuel
before it enters the engine.
(7) Recoil Starter- Pull-cord for manual starting.
12
6
15
"14
(8) Electric Start Switch- Used to start/stop engine.
(9) 120 Volt AC Receptacle- Use to connect
electrical devices that run 120 and Volt, 60 Hz,
single phase, AC current.
(10) Oil Fill and Dipstick- Location tbr checking and
filling engine oil.
(11) Power Indicators-(heen lights that turn on to
indicate the output of power to each receptacle.
(12) 12V Barrel3- For electric start.
(13) DC Receptacle- provides 12V, 8.3A output.
(14) Ground Terminal- Connect grounding wires
here to properly ground unit.
(15) Circuit Reset Buttons- reset buttons that protect
the generator from electrical overload.
(16) 240/120 Volt AC Receptacle- Use to connect
electrical devices that run 120 and/or 240 Volt,
60 Hz, single phase, AC current.
(17) Muffler- Reduces engine noise.
(18) Spark Plug- Provides proper engine ignition.
19 20
