ASSEMBLY & ADJUSTMENTS
TAILSTOCK

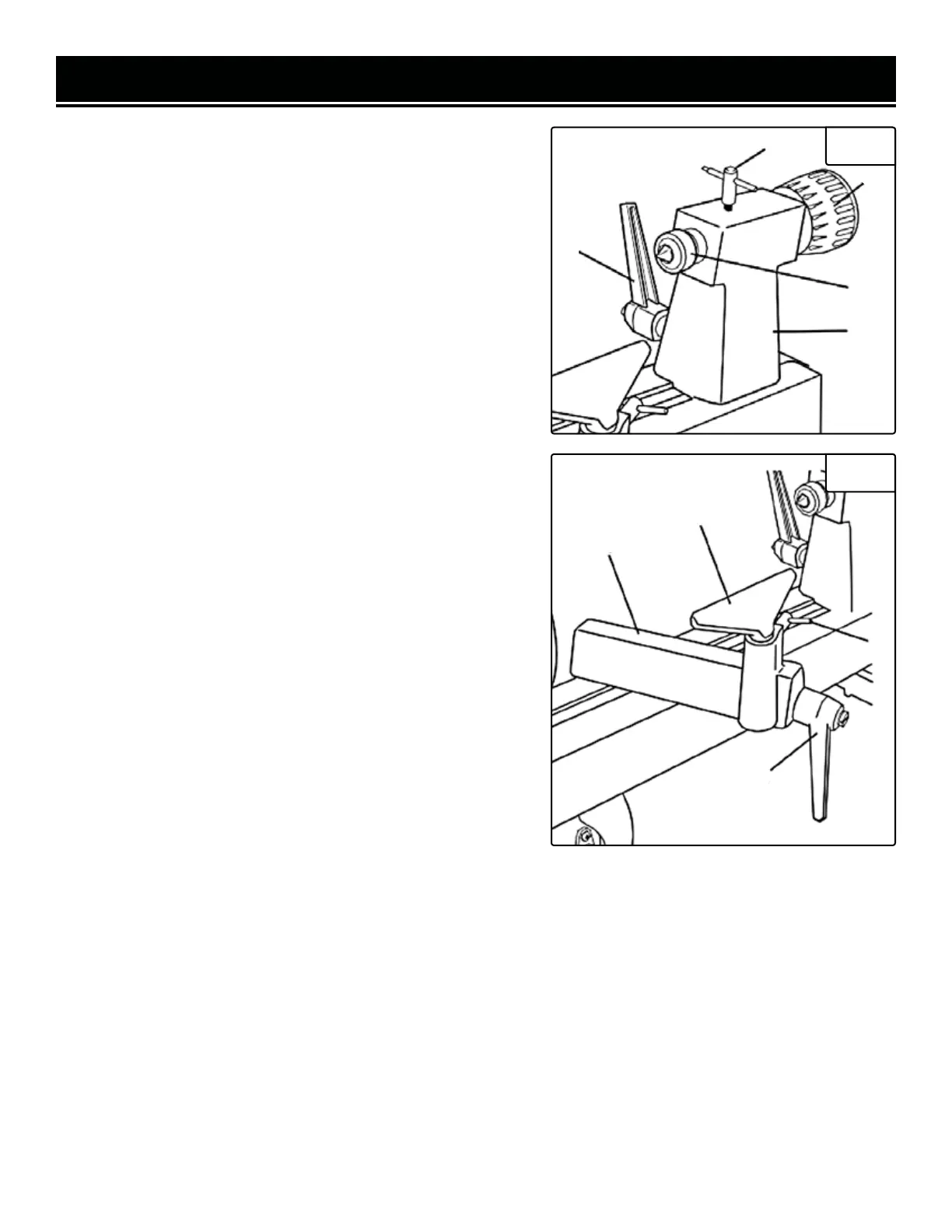

1. Move the tailstock (Fig. 8 - 5) by loosening the lock lever (Fig.
8 - 1) and pushing the tailstock to the desired position on the bed.
Lock it back in place by tightening the lock lever again.
2. The quill extends up to 2-1/2 inches from the tailstock housing.
Move the tailstock quill (Fig. 8 -4) by loosening the quill lock lever
(Fig. 8 - 2) and turning the hand wheel (Fig. 8 - 3). Turn the hand
wheel clockwise to extend the quill. Turn the hand wheel counter-
clockwise to retract the quill.
3. Lock the levers (Fig. 8 - 1 & 2) before operating the lathe.
4. The tailstock quill is hollow and can be accessed from the hand
wheel end. Use the knockout rod to remove the center cup or to
drill holes through the center of a workpiece on a flat plate.
TOOL REST
1. Loosen the lock lever (Fig. 9 - 4) to move the tool rest (Fig.
9 - 1) to the right or left, the back or front. Tighten the lever (Fig.
9 - 4) when the tool rest base is at the desired position on the
lathe bed.
2. To adjust the tool rest, loosen the lock lever (Fig. 9 - 3) to move
the tool rest (Fig. 9 - 2) to the desired position, then tighten the
lock lever.
3. To change the tool rest, loosen the lock lever (Fig. 9 - 3) and
pull the tool rest (Fig. 9 - 2) out of the tool rest base, then insert
the tool rest, adjust the rest to the desired position and tighten
the lock lever (Fig. 9 - 3)
NOTE: Make sure the tool rest is adjusted to be as close to the
workpiece as possible. Rotate the workpiece by hand to check the
clearance before turning on the lathe. Refer to Fig. 12 on p. 14 for
recommended tool rest placement.
Fig. 8
1
2
3
4
5
Fig. 9
1
2
3
4
12
