11
737mm
165mm
756mm
185mm
M8-1.25
Fig. J

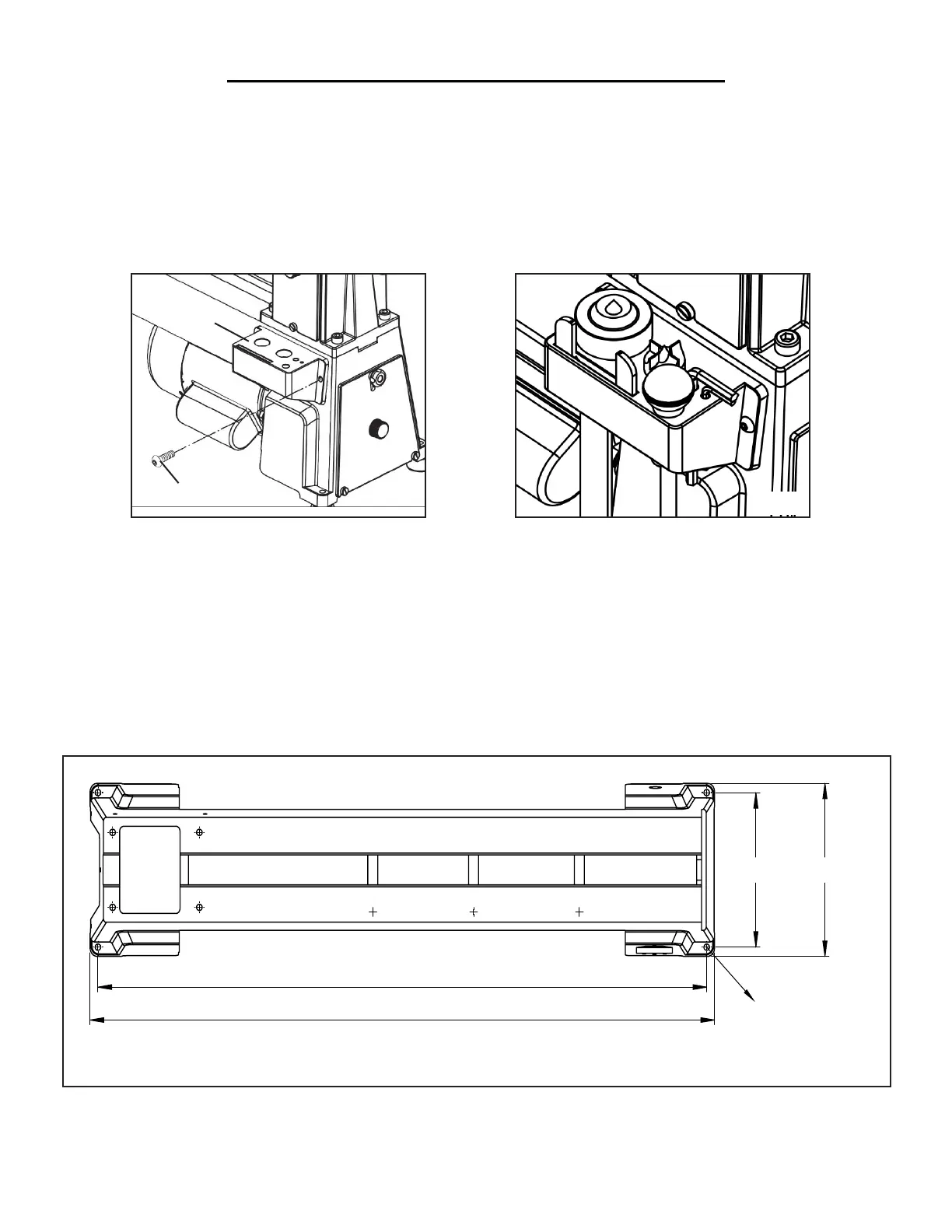

MOUNTING THE LATHE TO A BENCHTOP (Fig. J)
For effective and safe operation, the lathe must be mounted to a bench table. Place the machine on a stable, flat
work surface. Make sure there is sufficient open space around the machine for operation and adjustments. Route
the power cord so that it will not make contact with the lathe’s moving parts.
Refer to the graph below (Fig. J) for your lathe’s base dimensions. Mount the machine’s base to the benchtop with
rubber feet in between to help dampen the vibration. Threaded holes on the lathe’s base are M8-1.25. Mounting
hardware is not included.
ASSEMBLY
INSTALLING THE ACCESSORY HOLDER (FIG. H & I)
1. Position the accessory holder (Fig. H - 1) below the headstock on the back of the base. Align the holes and secure
the accessory holder using two M5×12 pan head screws (Fig. H - 2). Tighten the screws using the 3mm hex wrench.
You can organize your wrench, hex wrenches, knockout rod, live center and spur center into the accessory holder
as shown in Fig. I.
Fig. H
1
2
Fig. I
