ASSEMBLY AND ADJUSTMENTS (CONTINUED)
Tools needed for assembly
Adjustable wrench
Hammer and block of wood
Screwdriver

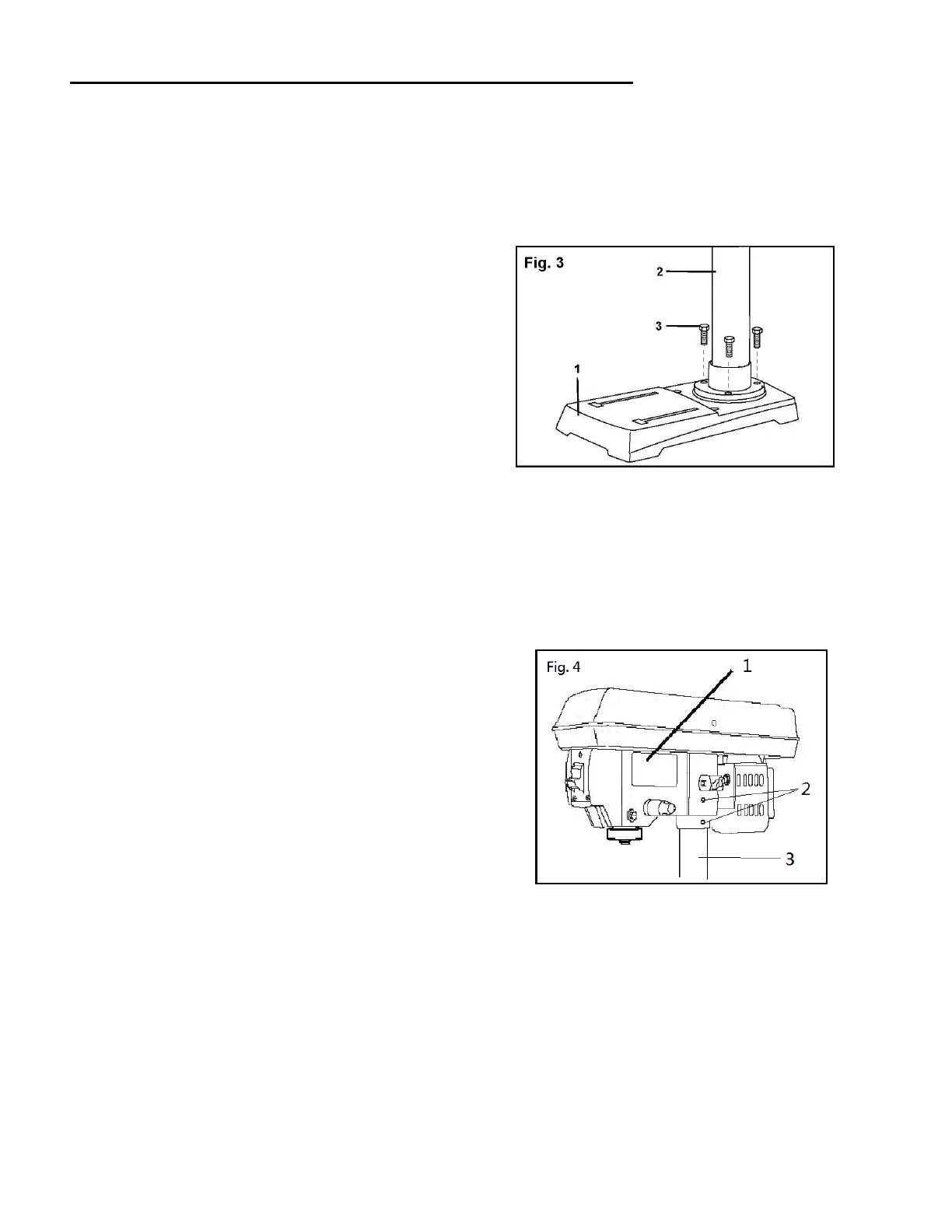

Base to column (Fig. 3)
1. Set the base (1) on the floor.
2. Place the column tube (2) on the base (1), align the
column support holes with the base holes.
3. Install a bolt (3) in each column support hole and
tighten with the wrench.
Table to column
1. Slide the table down onto the column, and install the table lock handle.
2. Position the table in the same direction as the base, and tighten the column lock handle (G).
Drill press head to column (Fig. 4)
1. Lift the drill press head assembly (1) carefully and place
the mounting hole of the drill press head onto the top of
the column (3). Make sure the head is seated properly on
the column.
2. Align the direction of the drill press head to the direction
of the base and the table.
3. Tighten the set screws (2) using an Allen wrench (H).
