10
ASSEMBLY AND ADJUSTMENTS

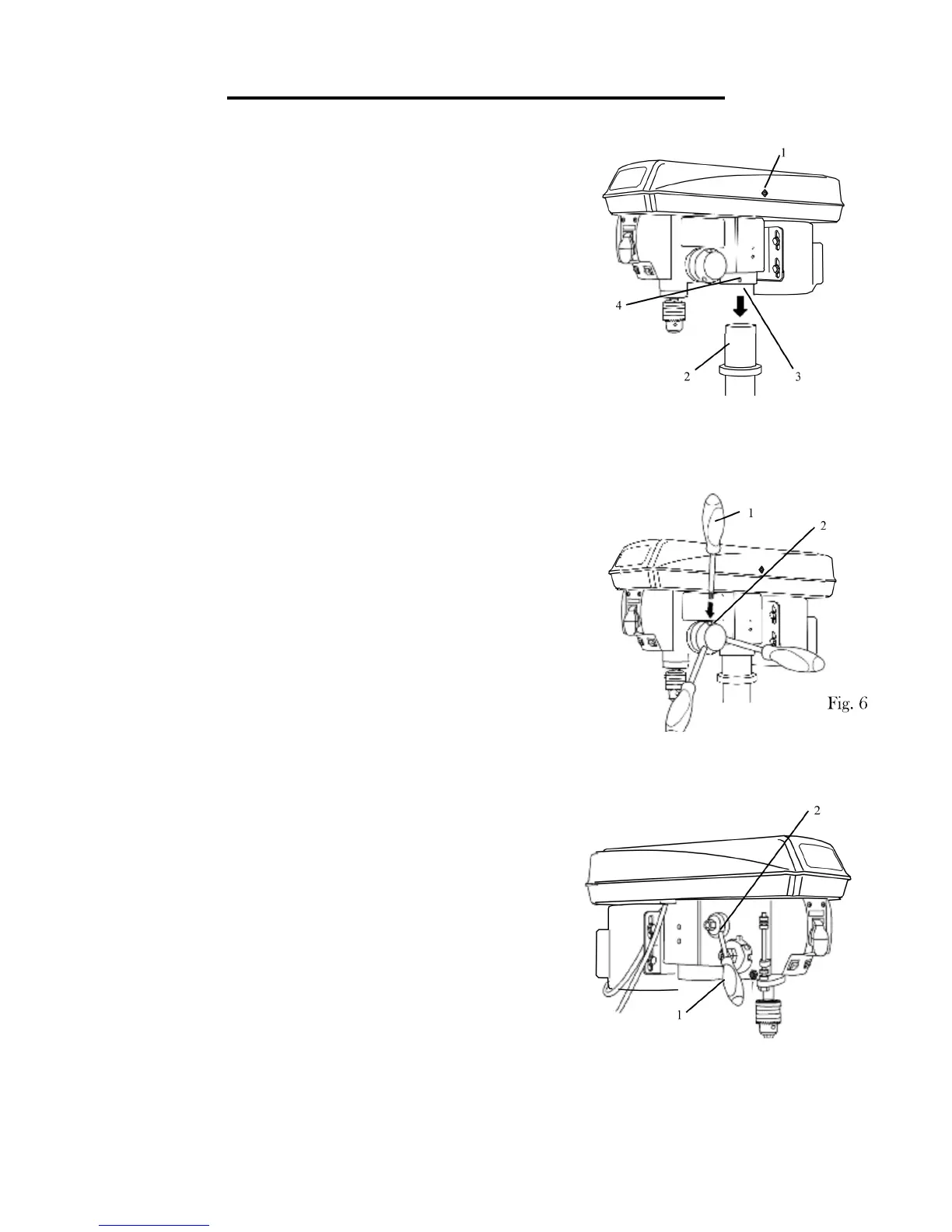

DRILL PRESS HEAD TO COLUMN (Fig. 5)
CAUTION: The drill press head is heavy. To avoid injury, two
people should lift it into position.
1. Carefully lift the drill press head assembly (1) and position it
over the column (2).
2. Place the mounting opening (3) on the drill press head over the
top of the column. Make sure the drill press head is seated prop-
erly on the column.
3. Align the direction of the drill press head with the direction of
the base and the table.
4. Tighten the set screw (4) using a hex key.
FEED HANDLES (Fig. 6)
1. Insert the three speed handles (1) into the threaded openings on
the feed hub (2).
2. Manually tighten the handles into the openings.
Note: When using the drill press, one or two of the feed handles
may be removed if an unusually-shaped workpiece interferes with
handle rotation.
SPEED HANDLE (Fig. 7)
1. Insert the feed handle (1) into the threaded opening on the
speed hub (2).
2. Manually tighten handle into opening.
Fig. 5
Fig. 7
