CLEANING THE WORK TABLE SURFACE
Your drill press comes protected with a layer of anti-rust coating on its exposed (non-painted) metal surfaces.
Clean the rust-protected surfaces using a soft cloth, moistened with kerosene. Do not use gasoline, or
cellulose-based solvents such as paint thinner or lacquer thinner, as these will damage the painted surfaces.
After cleaning, apply a light coat of good-quality paste wax to the table and column to prevent rust. Wipe all
parts thoroughly with a clean, dry cloth.

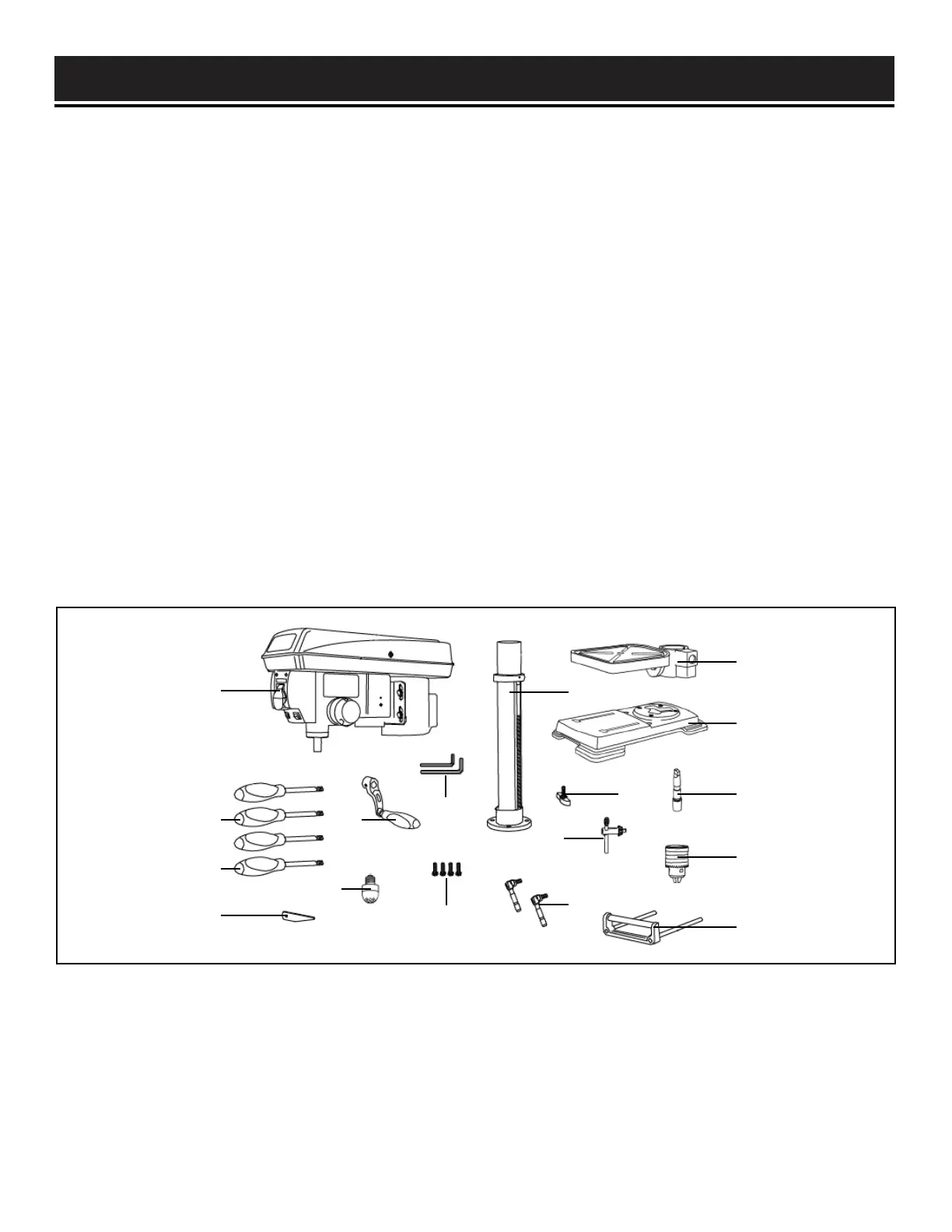

PACKING LIST
Check your packing list against the diagram below. If any part is damaged or missing, please contact
our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com
and DO NOT plug the drill press in or turn ON.
ASSEMBLY & ADJUSTMENTS
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the drill press from the packaging. Make
sure to take out all contents and accessories. Do not discard the packaging until the drill press is
completely assembled.
Before using the drill press, you must assemble the unit using the instructions in this section. Check
your packing list against the diagram below. If any part is damaged or missing, please contact our
customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.
1 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
13
17
Extension Wing with
Integrated Rollers
Chuck Key
Wing Knobs (2)
Table Lock Handles (2)
Hex Head Bolts (4)
Table Crank Handle
Hex Wrenches (3mm & 4mm)
Feed Handles (3)
LED Bulb
Wedge
Speed Handle
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
Head / Motor Assembly
Column Assembly
Table
Base
Chuck Arbor
Chuck
