1
2 3
Screw
Right Shield
Arm
1
2
Locking
Knob

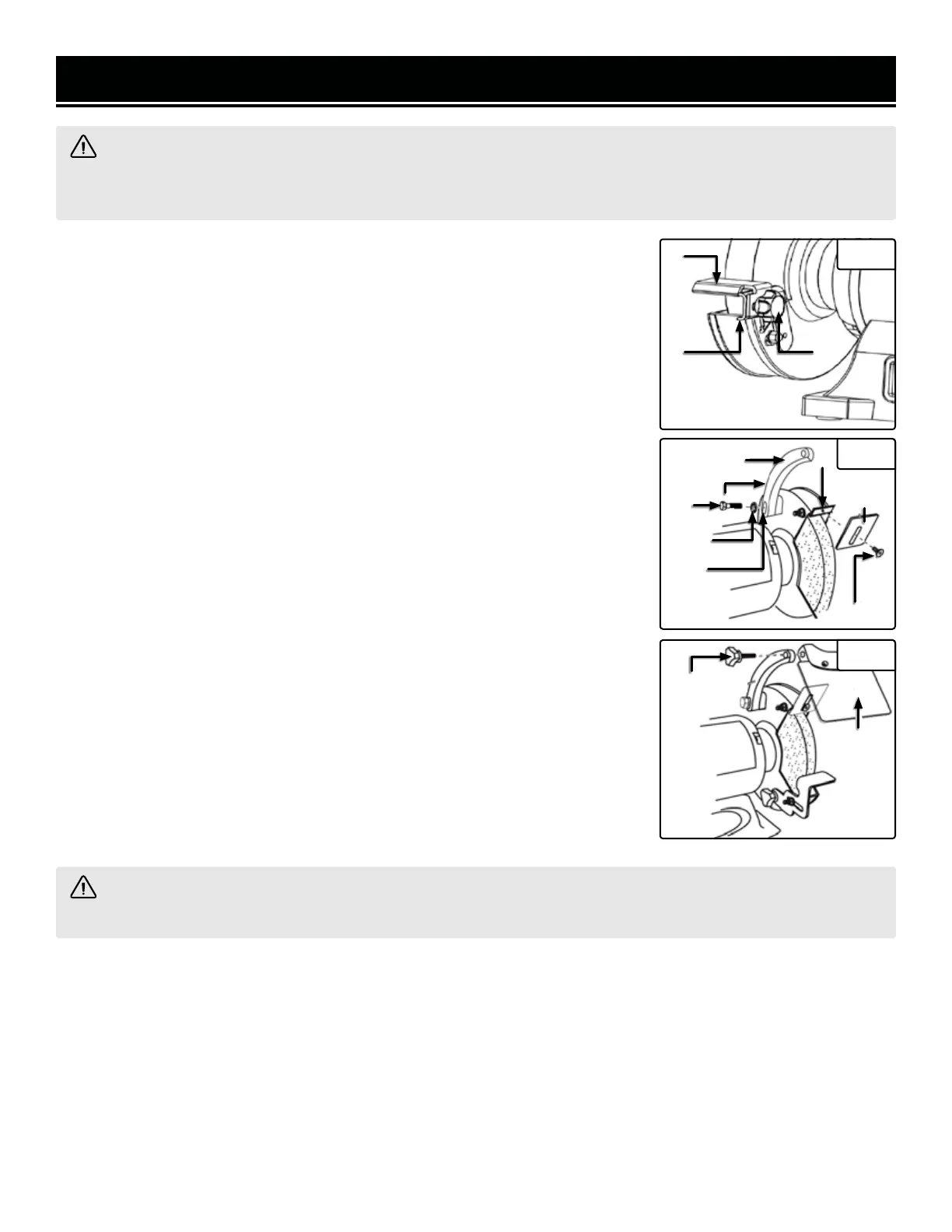

ASSEMBLY & ADJUSTMENTS
TOOL REST ASSEMBLY
1. Place the left tool rest (Fig. 1 - 1) over the tool rest bracket (Fig. 1 - 2).
2. Align the left tool rest with the hole on the bracket and slide the carriage head
screw through from the left side.
3. Screw the tool rest knob into place (Fig. 1 - 3)
4. Adjust the tool rest within 1/16 in. of the grinding wheel. To adjust this dis-
tance, loosen the knob and move the tool rest.
5. Assemble the right tool rest in a similar manner.
SPARK DEFLECTOR AND EYESHIELD ASSEMBLY
1. Place the spark deflector against the right wheel guard and secure into place
using a screw (Fig. 2 - 1). Adjust the spark deflector within 1/16” (0.0625”) of
the right grinding wheel and tighten the screw.
2. Attach right shield arm to the right wheel guard using a bolt and washer and
secure into place (Fig. 2 - 2).
3. Attach the right eye shield to the right shield arm and tighten the locking knob
into place (Fig. 3).
4. Attach spark deflector and eye shield to the left guard in a similar manner.
WORK LIGHT
The bench grinder is provided with a flexible work light to assist in visibility of
the workpiece. The bench grinder is NOT provided with a light bulb for the flex-
ible work light. To reduce the risk of fire, use a 120V 40W (or less) track light
bulb, type R20, medium base or equivalent (not included). DO NOT use a light
bulb that extends past the end of the light housing.
WARNING! To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a
source of power during unpacking and assembly. This cord must remain unplugged whenever you are adjusting/
assembling the grinder.
CAUTION! The flexible work light housing will remain hot for a few minutes after turning it OFF. Avoid contact
with housing until it cools.
11
Washer
Bolt
Spark
Arrestor
Eye
Shield
Fig. 1
Fig. 2
Fig. 3
