OPERATION
WARNING! Read and thoroughly understand all instructions and safety information before operating this
log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter
who has not read this manual.
As with all power equipment, a log splitter can be dangerous if assembled or used improperly. Do not
operate this log splitter if you have doubts or questions concerning safe operation. Call our customer service
department at 1-800-232-1195 to address these concerns.

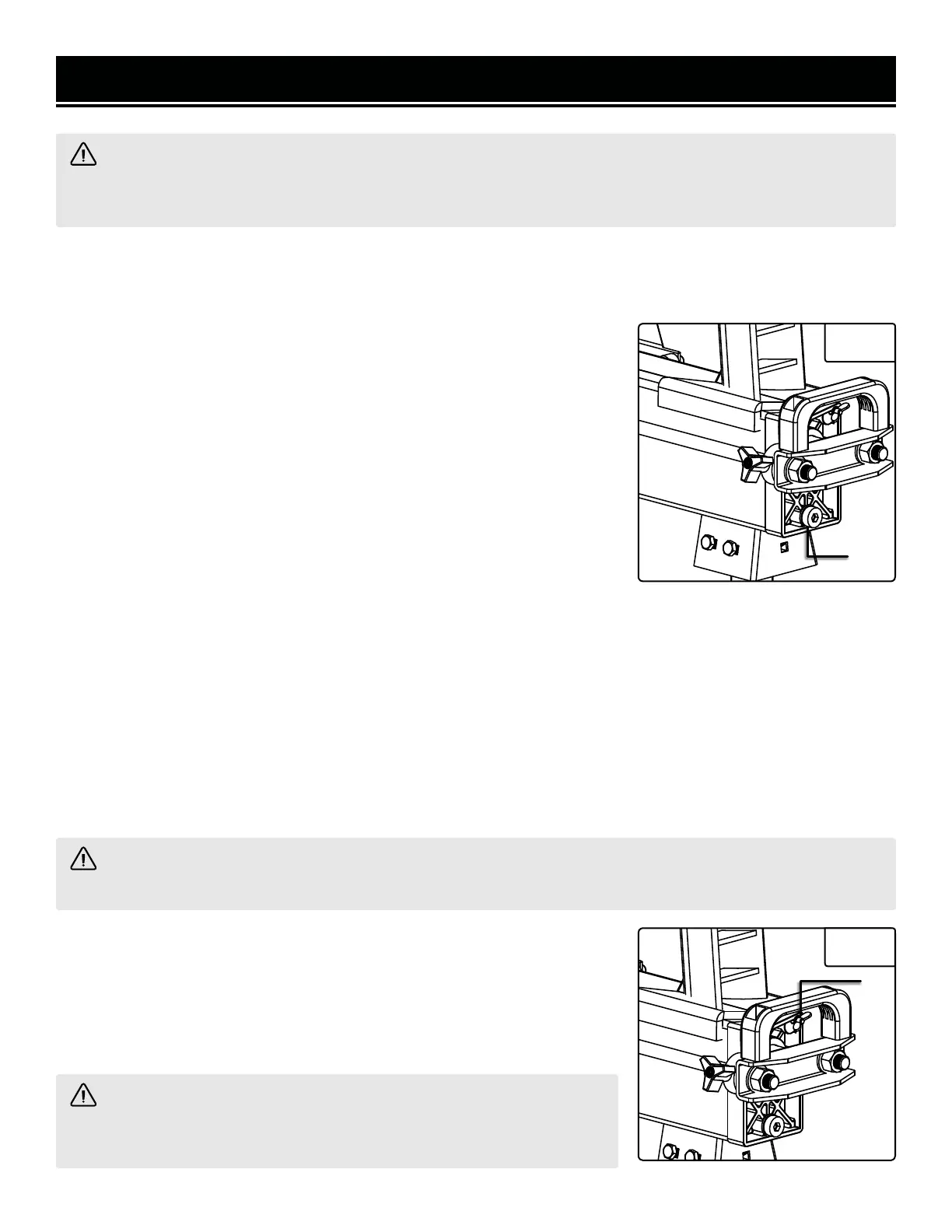

CHECKING THE LEVEL OF HYDRAULIC FLUID
The hydraulic system is a closed system consisting of the fluid tank,
fluid pump and control valve. This log splitter has been filled with AW32
hydraulic fluid during the manufacturing process. Before each operation,
check the hydraulic fluid and add more if the level is low.
1. Carefully lift up on the handle of log splitter so it is in the vertical
position. Make sure machine is stable and will not fall. Let it rest in this
position for about 2 minutes so the fluid level can be checked properly.
2. Remove the fluid drain bolt (Fig. 5 - 1) and use a clean rag to wipe the
dipstick clean of fluid. CAUTION: Hydraulic fluid might flow out.
3. Put dipstick back in the tank (without screwing) and pull it out again.
4. Check the fluid level on the dipstick. It should be between the two notches on the end of the dipstick and
within about 1/4 inch of the upper notch.
5. Add fluid if the level is low. Wipe off the dipstick and check the fluid level again. Do not overfill. Replace
the dipstick and tighten the fluid drain bolt.
6. Lower the log splitter back into the horizontal position. Check hydraulic connections and fittings regularly
for airtightness. Tighten when necessary.
Remember to use AW32 fluid for operation at temperatures above 40°F, and Dexron® automatic transmission
fluid for operation below 40°F.
Fig. 5
OPENING/CLOSING THE BLEED SCREW (FIG. 5)
1. Before operation: Always loosen the bleed screw prior to operation.
Turn the bleed screw (Fig. 6 - 1) counterclockwise one or two turns to
allow air to be released from the hydraulic system. While the log splitter
is in use, there should be a detectable flow of air through the bleed
screw.
WARNING! Failure to release the bleed screw to release air from the
hydraulic system may damage the hydraulic seals, permanently damaging
the log splitter.
Fig. 6
1
1
WARNING! Lifting the log splitter is a two person operation. Once raised, make sure the log splitter is stable
before performing any maintenance.
