PREPARATION
1. Prepare the workplace where the machine will be
located. A safe work area will require a flat surface and
ample room for the splitter and the logs. Make sure
there’s a safe electrical connection within 25 feet of the
workspace.
2. Carefully take the log splitter out of the box and place it
securely on the firm, level ground.
3. The log splitter comes assembled with the support leg
and handle. See the next section for the option to install
the body of the log splitter onto the stand.

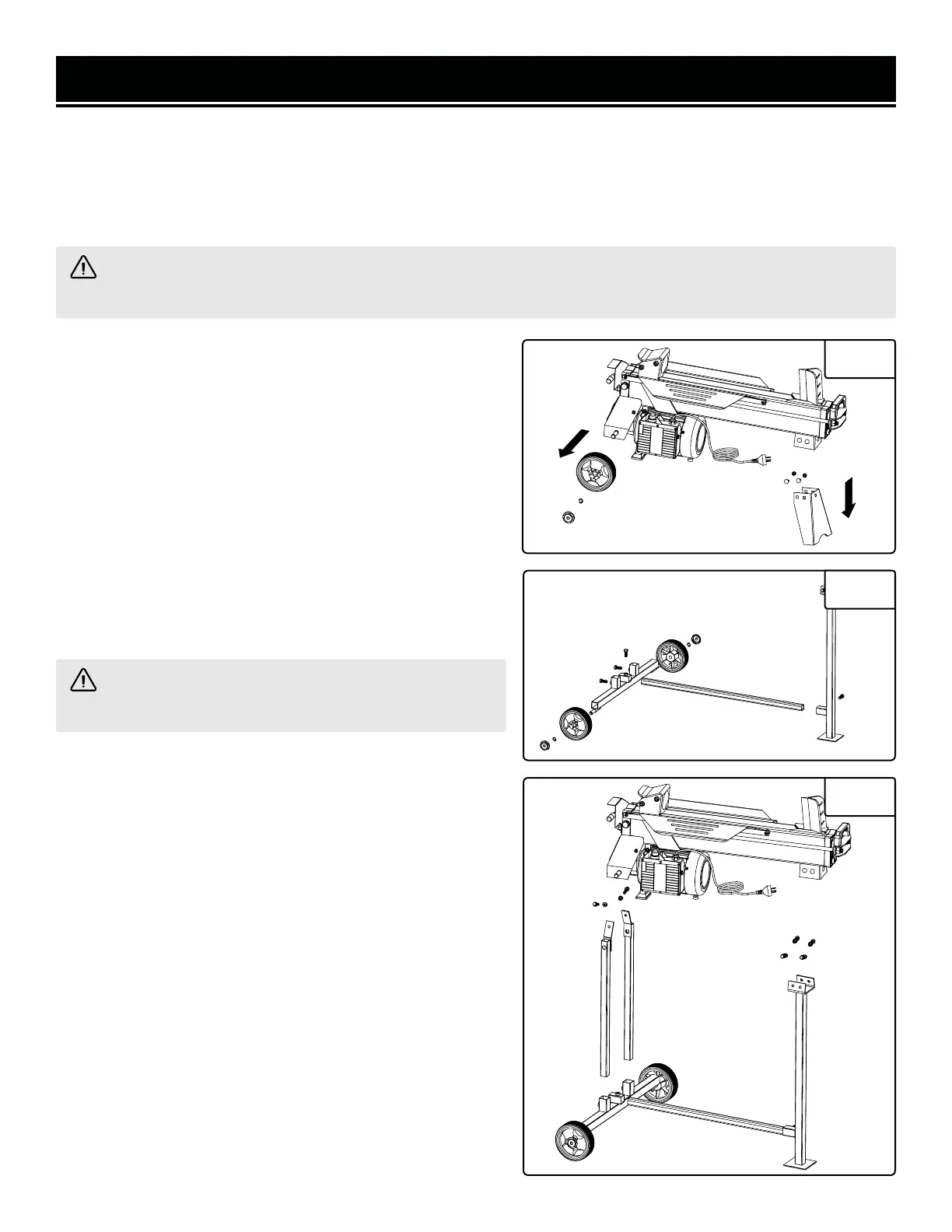

INSTALLING THE STAND
PREPARATION & ASSEMBLY
NOTE: Do not discard the box or any packing material until all parts are examined and accounted for. Inspect
the unit for shipping damage.
If any part of the log splitter is missing or damaged, do not plug in or operate the unit until the damaged part
is repaired or replaced. Please call 1-800-232-1195 for assistance.
WARNING! Lifting the log splitter is a two person operation. Once raised, make sure the log splitter is stable
before performing any assembly or maintenance.
WARNING! Installing the stand requires two people.
Do not attempt alone.
1. Two people are required for this job. Convince a good
friend or even a trustworthy foe to help before starting.
2. Place the log splitter horizontally on the floor. Prepare a
piece of padding for underneath the splitter.
3. Disassemble the wheels and support leg. Remove the
hub cap, and take off the wheels and support leg from the
machine’s body by removing the cotter pins (Fig. 2).
4. Assemble the stand. Using the cotter pins, attach the
wheels onto the wheel axis of the stand. Connect and
secure the stand together using M10x25 bolts (Fig. 3).
5. Install the log splitter onto the stand with M8x25 bolts,
nuts and washers (Fig. 4).
NOTE: Alternatively, you can carefully flip the unit over
and install the stand upside down. Make sure the bleed
valve and all seals are tight before you flip the log splitter.
This will help you insert the bolt for the rear legs as the
space is very tight.
Woodster GmbH - D-89335 Ichenhausen - Tel. 08223/4002 0 - Fax 08223/4002 20
1
2
3
4
390 5202 003
Fig. 2
Woodster GmbH - D-89335 Ichenhausen - Tel. 08223/4002 0 - Fax 08223/4002 20
1
2
3
4
390 5202 003
Fig. 3
Woodster GmbH - D-89335 Ichenhausen - Tel. 08223/4002 0 - Fax 08223/4002 20
1
2
3
4
390 5202 003
Fig. 4
9
