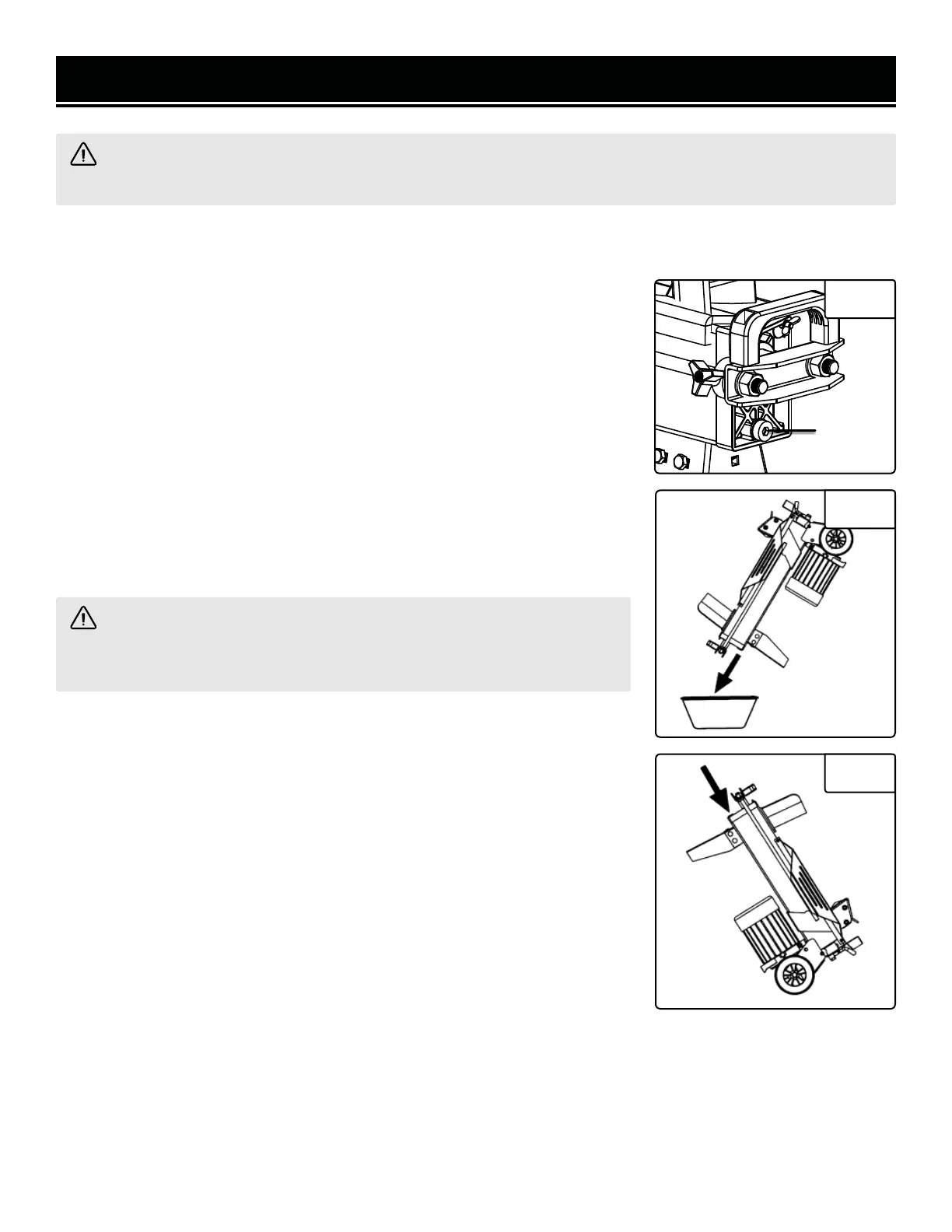

MAINTENANCE
Repair and maintenance work on the electrical system may only be carried out by a qualified electrician.
All protective safety devices must be reattached immediately after repair and maintenance work have been
completed.
WARNING! Make sure the log splitter is disconnected from the power source before performing any repair
or maintenance.
WARNING! Lifting the log splitter is a two person operation. Once
raised, make sure the log splitter is stable before performing any mainte-
nance.
4. Raise the splitting edge end of the log splitter and make sure it is secure
before refilling the hydraulic fluid (Fig 12).
5. Pour approximately 3.7 quarts (0.9 gallons) of approved hydraulic fluid
(AW32 hydraulic fluid for operation over 40°F or Dexron® automatic
transmission fluid for operation below 40°F) into the tank.
6. Check the fluid level with the dipstick. Make sure the level of the refilled
fluid is between the bottom two rings grooved into the base of the dipstick.
Add more fluid as necessary.
7. Replace the fluid drain knob (Fig. 10 - 1) and tighten securely. Return
the log splitter to horizontal position.
8. Periodically check fluid level and refill as needed.
TO REPLACE THE HYDRAULIC FLUID
The hydraulic fluid should be replaced after 150 hours of use or every six
months.
1. Place a one gallon (or larger) pan under the splitting wedge end of the
log splitter.
2. Loosen the fluid drain knob (Fig. 10 - 1) and remove it. Be prepared for
hydraulic fluid to flow out.
3. Raise the motor end of the log splitter to allow the fluid to drain into the
pan (Fig. 11). Return the log splitter to horizontal position when the fluid
is empty.
NOTE: Responsibly dispose of collected fluid at a public collection facility.
Fig. 10
Fig. 11
SPLITTING WEDGE
The splitting wedge is a wearing part that may need to be sharpened or replaced after prolonged use. Keep
the splitting wedge clean of dirt, wood shavings, bark, etc. Use a fine-toothed file or rasp to remove burrs or
refresh crushed areas to ensure optimal operation
LUBRICATION
Make sure all moving parts run smoothly. Lubricate with a few drops of oil when necessary. Lubricate the
slide rails with grease.
Fig. 12
1
13
