KNOW YOUR INVERTER GENERATOR

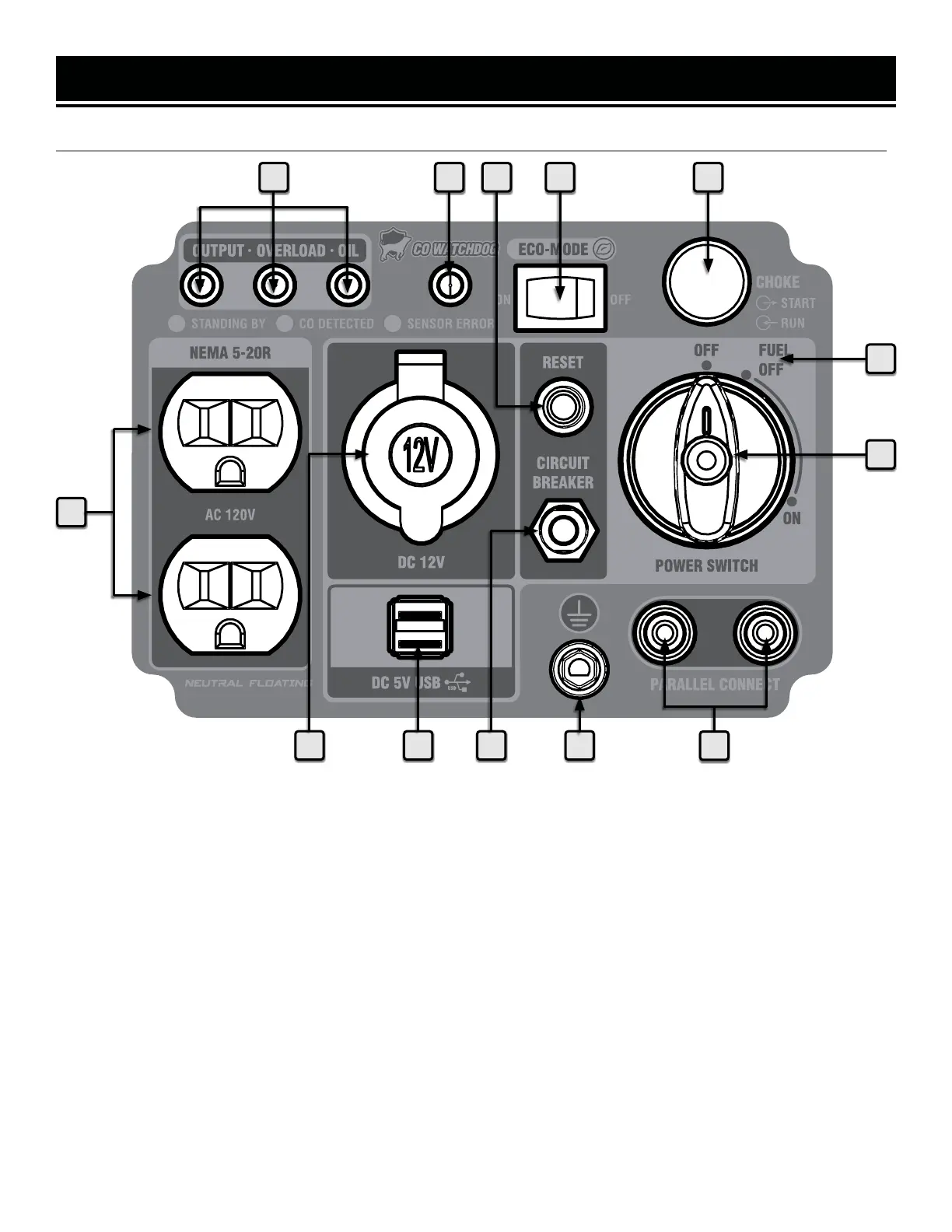

CONTROL PANEL
2
3 4
8
5 6
1. Indicator Lights
Output, Overload, & Low Oil
2. AC 120V NEMA 5-20R Duplex Receptacles
Standard household outlets provide 120V 60Hz power.
3. 12V DC Outlet
Cigarette-style outlet provides DC power.
4. 5V USB Port
1A & 2.1A for charging various electronic devices.
5. Circuit Breaker
Press to reset.
6. Grounding Nut
Ground the generator to reduce the risk of electric shock.
Refer to “Ground the Generator” section on page 14.
7. Parallel Connection
Connect to share wattage between inverter generators.
1
7
9
101112
8. On / Off Switch
Used to turn on or shut down the generator.
9. Fuel Off
Turn the ON / OFF Switch to this position to burn off the
fuel in the carburetor. See p. 23.
10. Choke Lever
Used to start the engine.
11. Eco-Mode Switch
Maximizes fuel economy & run time.
12. Reset Button
Press to reset the circuit incase of overload.
13. CO WATCHDOG Carbon Monoxide Monitor
Measures the accumulation of poisonous CO gas while
the generator is running. If the level of CO gas gets too
high, the CO Watchdog system will automatically shut
down the generator. See p. 22 for more information.
13
To Next Page
