KNOW YOUR INVERTER GENERATOR

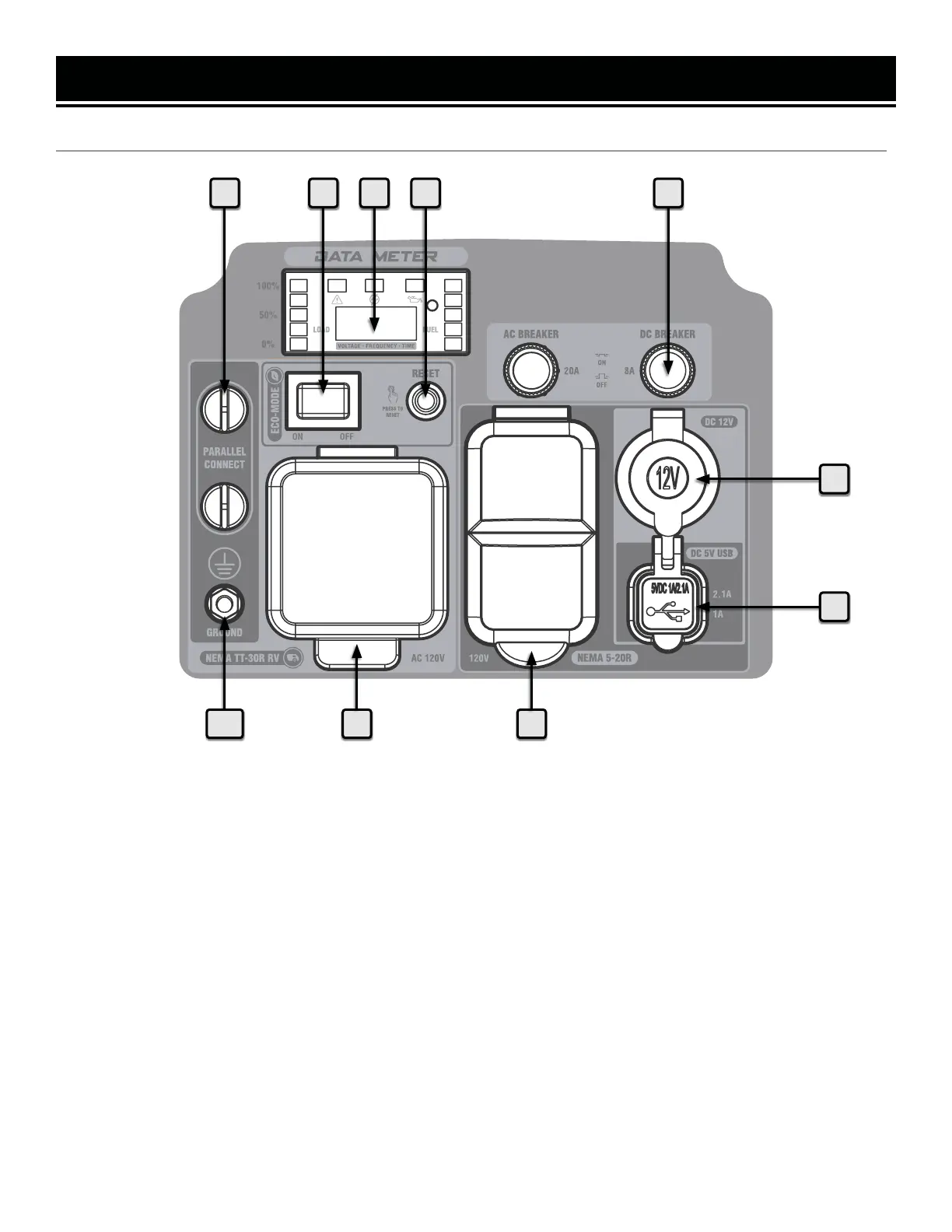

CONTROL PANEL
8
1 2 3 4 5
6
7
10
1. Parallel Connection
Connect to share wattage between inverter generators.
2. Eco-Mode Switch
Maximizes fuel economy & run time.
3. Data Meter with Indicator Light
4. Reset Button
Press to reset the circuit incase of overload.
5. Circuit Breaker
Press to reset.
6. 12V DC Outlet
Cigarette-style outlet provides DC power.
7. 5V USB Port
1A & 2.1A for charging various electronic devices.
8. AC 120V NEMA 5-20R Duplex Receptacles
Standard household outlets provide 120V 60Hz power.
9. AC 120V NEMA TT-30R RV Receptacle
Standard RV connector.
10. Grounding Nut
Ground the generator to reduce the risk of electric shock.
