Wen 56360i

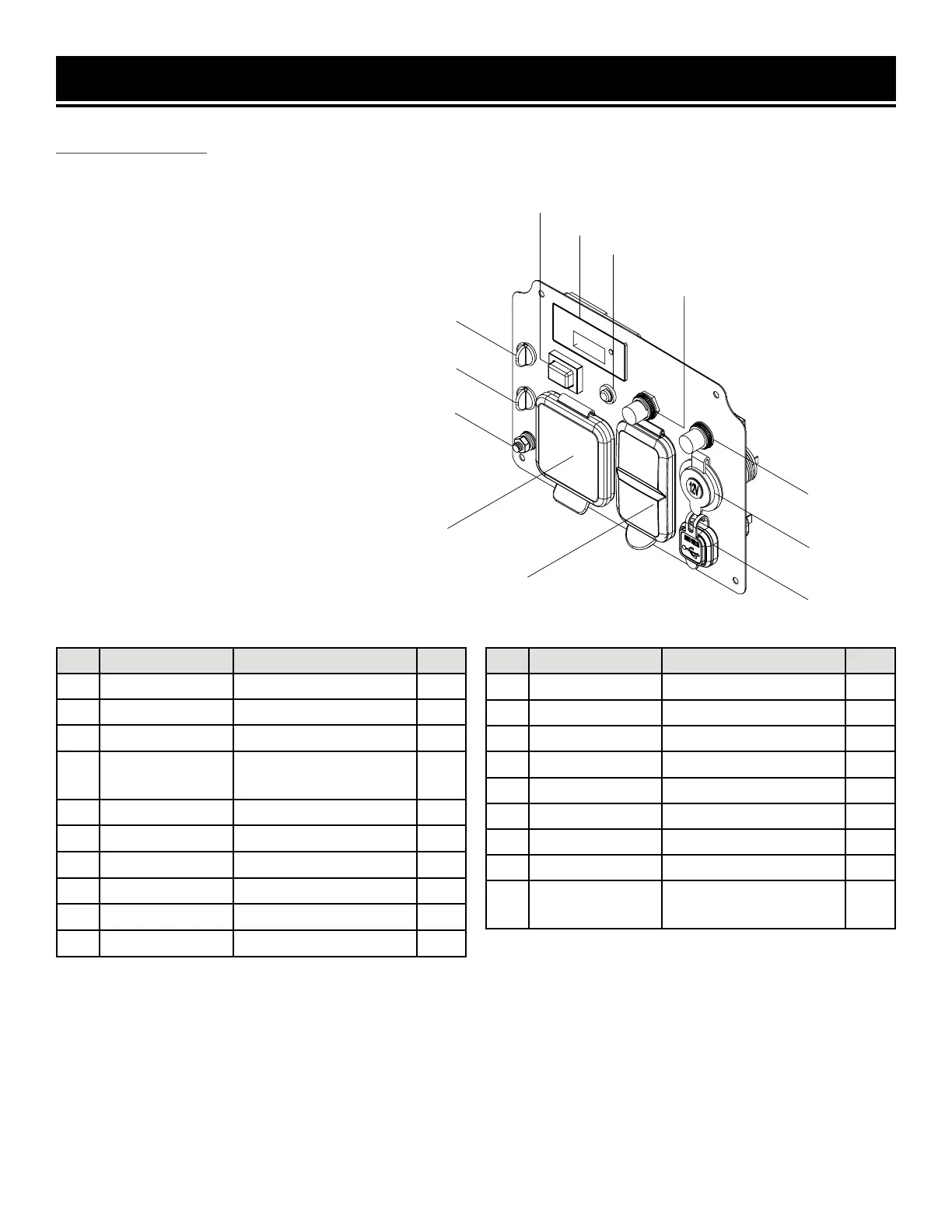

EXPLODED VIEW & PARTS LIST
CONTROL PANEL
NO. PART NO. DESCRIPTION QTY.
1 56203i-005.14B Parallel Outlet (Black) 1
2 56203i-005.14R Parallel Outlet (Red) 1
3 56360iX-203 Digital Meter 1
4 DG4500iX-208
NEMA 5-20R 120V
20A AC Duplex Outlet
1
5 56360iX-205 Nut, M6 1
6 56203i-005.11
Washer, ɸ6
1
7 56203i-005.12
Washer, ɸ6
1
8 56360iX-208 Grounding Stud 1
9 56360iX-209
Washer, ɸ6
1
10 56360iX-210
Washer, ɸ5
1
NO. PART NO. DESCRIPTION QTY.
11 56360iX-211
Washer, ɸ5
1
12 56360iX-212 Nut, M5 1
13 56203i-005.4 Stop Switch 1
14 56203i-005.5 Reset Button 1
15 56500-208 Breaker 20A 1
16 56360iX-216 Breaker 8A 1
17 56203i-005.2 DC 12V Outlet 1
18 56360iX-218 USB 1
19 DG4500iX-207
NEMA TT-30R 120V
30A AC Outlet
1
1
2
3
5,6,7,8,9,10,11,12
19
13
14
15
16
17
18
4
35
