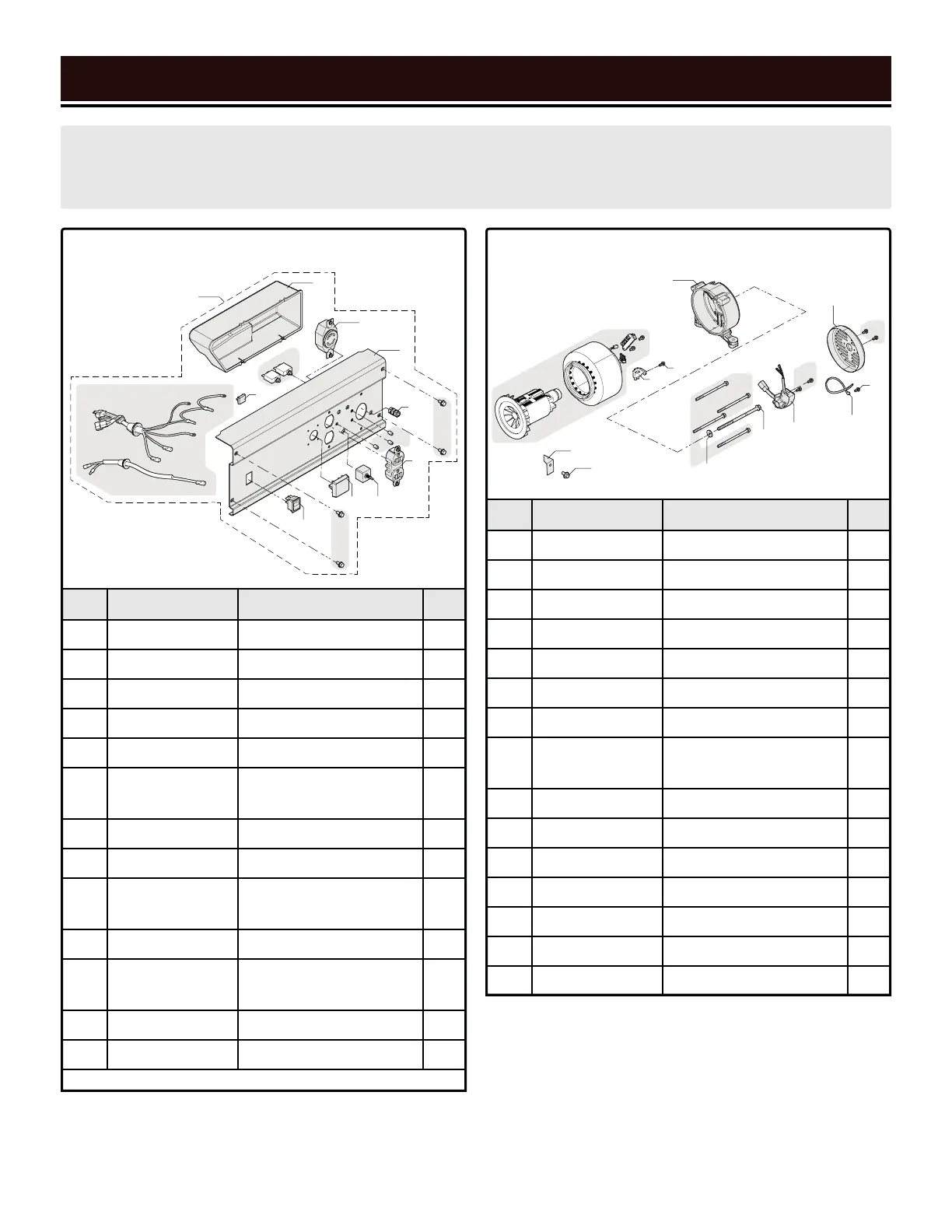

EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at
(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not
covered by the two-year warranty.
No. Part No. Description Qty.
1 Control Panel 1
2 P54296 Ignition Switch 1
3 56400-1603 Voltmeter 1
4 P54826 Switch 1
5 56400-1605 Indicator Light 3
6 P54454
NEMA 5-20R 120V
Duplex Receptacle
1
7 P54262 Grounding Terminal 1
8 P54838 Circuit Breaker, 30A 2
9 P54272
NEMA L14-30R
120/240V Receptacle
1
11 P56400-1611 Panel Rear Case 1
12 P56400-1612
Control Panel
Assembly
1
13 P54304 Bolt 4
14 56400-1614 Rectification Bridge 1
13
12
11
14
8
10
9
43
2
1
7
5
6
13
ASSEMBLY 1 - CONTROL PANEL
No. Part No. Description Qty.
1 P54329 Alternator Assembly 1
4 P54336 Motor Housing 1
5 P54350 Bolt 4
6 P54348 Washer 1
7 P54354 Rotor Bolt 1
8 P54342 Voltage Regulator 1
9 P54360 Bolt 2
10 P54332
Carbon Brush
Subassembly
1
11 P54360 Bolt 1
12 P54337 End Cover 1
13 P54340 Bolt 2
14 56400-1714 Band 1
15 P54340 Bolt 1
16 56400-1716 Stopper 1
17 P54340 Bolt 1
4
1
5
9
7
10
11
8
14
12
13
15
6
16
17
ASSEMBLY 2 - ROTOR & STRATOR
