33

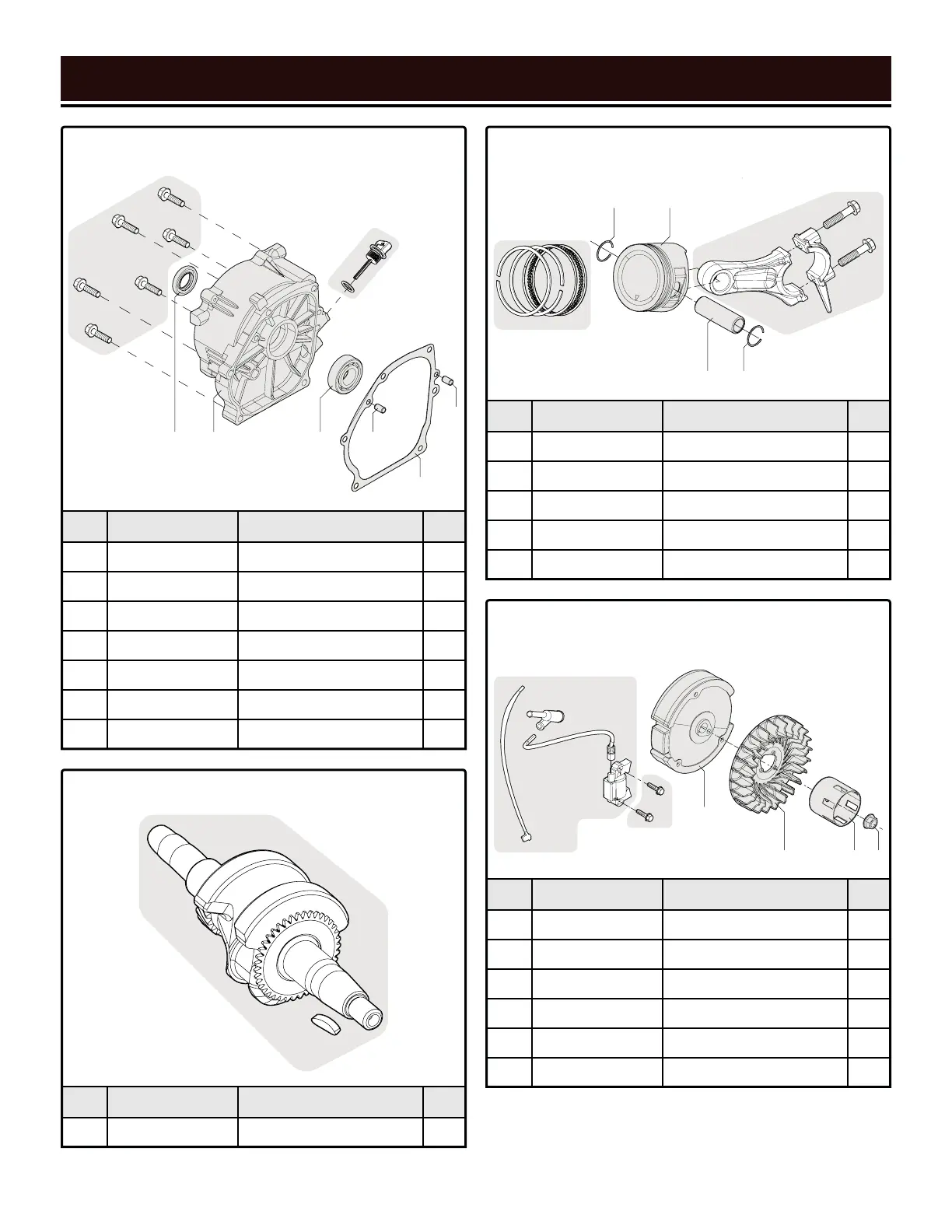

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 P54075 Crankcase Cover 1
2 P54004 Bearing 1
3 P54088 Oil Seal 1
4 P54080 Crankcase Gasket 1
5 P54082 Pin 2
6 P54086 Oil Dipstick Assembly 1
8 P54092 Bolt, M8x32 6
ASSEMBLY 3 - CRANKCASE COVER
No. Part No. Description Qty.
1 P54123 Crankshaft Assembly 1
1
ASSEMBLY 4 - CRANKSHAFT
No. Part No. Description Qty.
1 P54105 Piston Ring Assembly 1
2 P54106 Piston Pin Clip 2
3 P54109 Piston 1
4 P54112 Piston Pin 1
5 P54121 Connecting Rod 1
2
5
4
1
2
3
ASSEMBLY 5 - PISTON RING &
CONNECTING ROD
No. Part No. Description Qty.
1 P54630 Nut, M14-1.5 1
2 P54362 Starting Flange 1
3 P54634 Flywheel Fan 1
4 P54636 Flywheel 1
5 P54638 Ignition Coil Assembly 1
6 P54628 Bolt 2
4
3 2 1
5
6
ASSEMBLY 6 - FLYWHEEL &
IGNITION COIL
To Next Page
