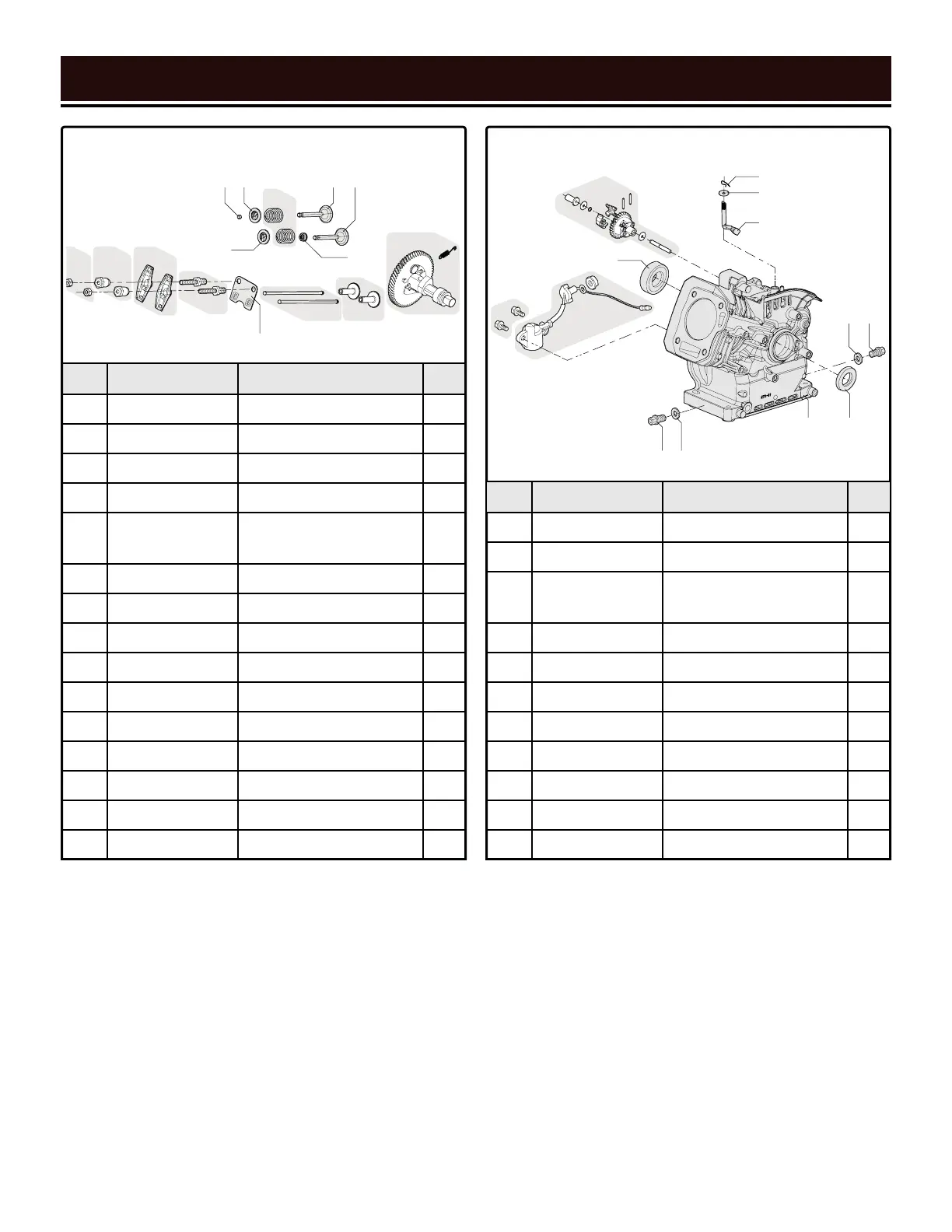

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 P54146 Camshaft Assembly 1
3 P54150 Exhaust Valve 1
4 P54152 Intake Valve 1
5 P54156 Valve Spring Seat 1
6 P54158
Exhaust Valve Spring
Seat
1
7 P54160 Cap 1
8 P54161 Seal Guide 1
9 P54142 Tappet 2
10 P54140 Lifter 2
11 P54138 Push Guide 1
12 P54134 Valve Adjusting Bolt 2
13 P54132 Valve Rocker 2
14 P54130 Sleeve 2
15 P54128 Lock Nut 2
16 P54154 Valve Spring 2
3 46
5
8
7
11
1
910
16
12
1314
ASSEMBLY 7 - VALVE & CAMSHAFT
No. Part No. Description Qty.
1 P54011 Crankcase 1
2 P54020 Oil Sensor 1
3 P54031
Regulating Gear
Assembly
1
4 P54024 Bolt 2
5 P54018 Pin 1
6 P54016 Washer 1
7 P54014 Regulating Sway Bar 1
8 P54000 Oil Drain Plug 2
9 P54002 Washer 2
10 P54008 Oil Seal 1
11 P54004 Bearing 1
ASSEMBLY 8 - CRANKCASE
2
3
5
6
7
89
98
10
11
4
1
