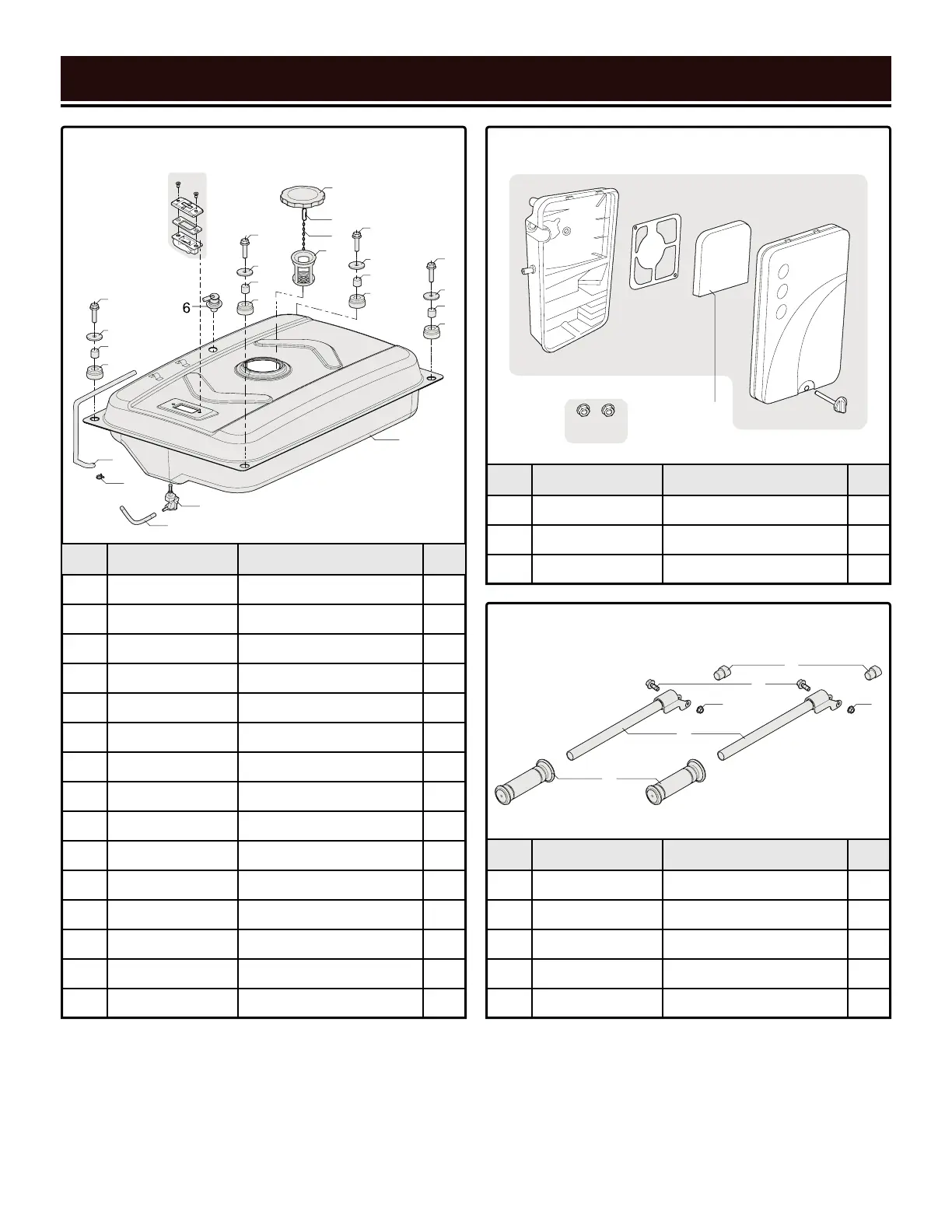

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 P54178 Air Cleaner Assembly 1
2 P54179 Nut 2
3 P54178-1 Air Cleaner Element 1
12
5
4
3
2
5
4
3
2
5
4
3
2
5
4
3
2
14
13
15
1
16
9
10
7
8
No. Part No. Description Qty.
1 56400-141 Fuel Tank 1
2 P56400-142 Cushion 4
3 P56400-143 Fitting Bush 4
4 P56400-144 Washer 4
5 P56400-145 Bolt 4
6 P56400-146 Valve 1
7 P56400-147 Clip 1
8 P56400-148 Chain 1
9 P56400-149 Fuel Cap 1
10 P56400-150 Fuel Filter 1
12 P56400-151 Fuel Gauge Assembly 2
13 P56400-152 Clamp 1
14 P56400-153 Rubber Hose 1
15 P56400-154 Fuel Cock 1
16 P56400-155 Fuel Tube 1
ASSEMBLY 9 - FUEL TANK
1
2
3
ASSEMBLY 10 - AIR CLEANER
No. Part No. Description Qty.
1 56475-2001 Rubber Seat 2
2 56475-2002 Bolt 2
3 56475-2003 Nut 4
4 56475-2004 Tube 2
5 56475-2005 Rubber Sleeve 2
4
1
2
3 3
5
ASSEMBLY 11 - HANDLE KIT
