3736

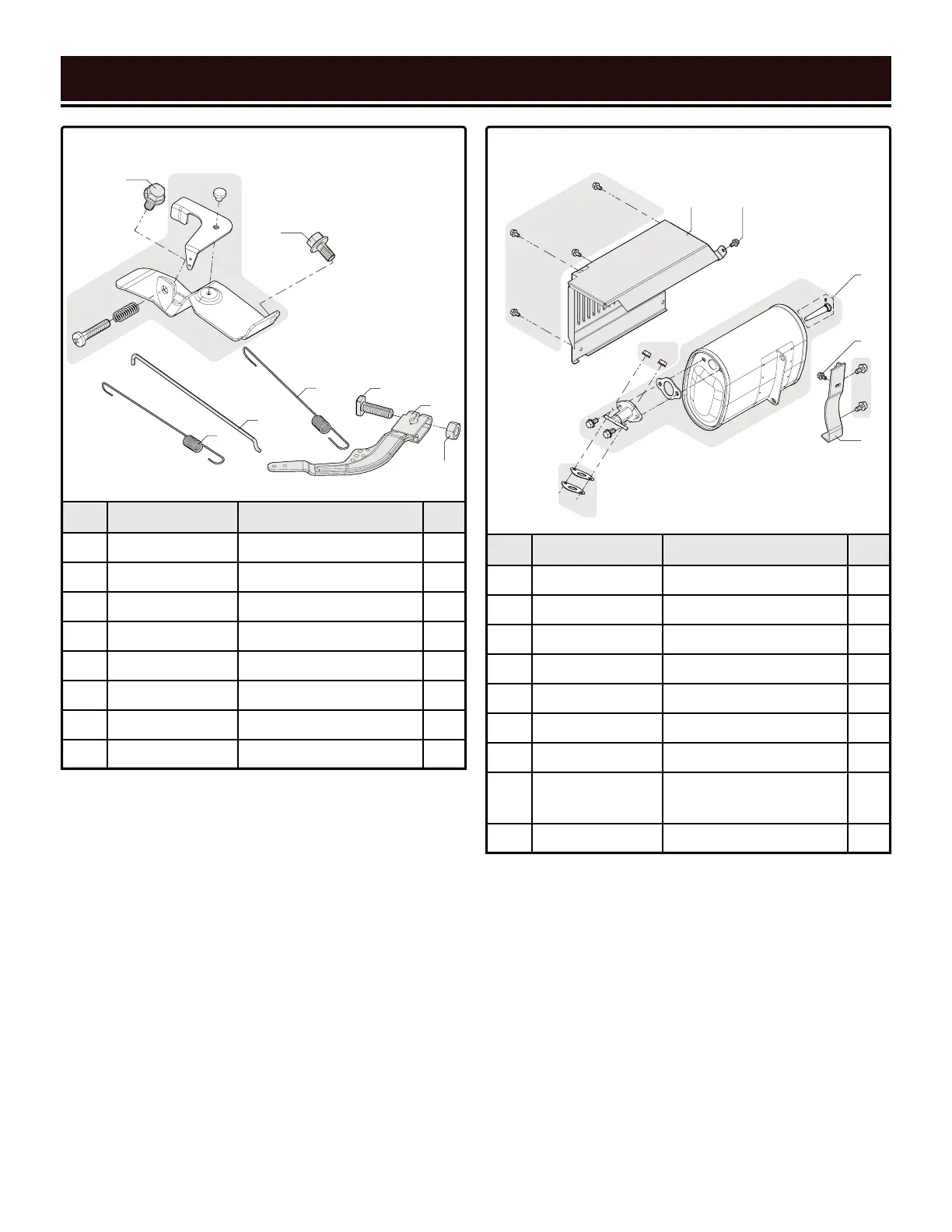

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 P54624 Regulating Arm 1
2 P54176 Nut, M6 1
3 P54622 Lock Bolt 1
4 P54616 Back Spring 1
5 P54620 Pulling Rod 1
6 P54618 Regulating Spring 1
7 P54617 Regulating Assembly 1
8 P54619 Bolt 2
8
8
7
6
5
4
3
1
2
ASSEMBLY 12 - CONTROL
No. Part No. Description Qty.
1 P54401 Muffler Assembly 1
2 P54402 Cover, Outer Muffler 1
3 P54412 Bracket, Muffler 1
4 P54422 Bolt 1
5 P54404 Bolt 2
6 P54422 Bolt 5
7 P54426 Gasket, Exhaust Outlet 1
8 P54403
Spark Arrestor
Assembly
1
10 P54246 Nut 2
ASSEMBLY 13 - MUFFLER
62
3
4
6
1
8
10
5
7
To Next Page
