3736

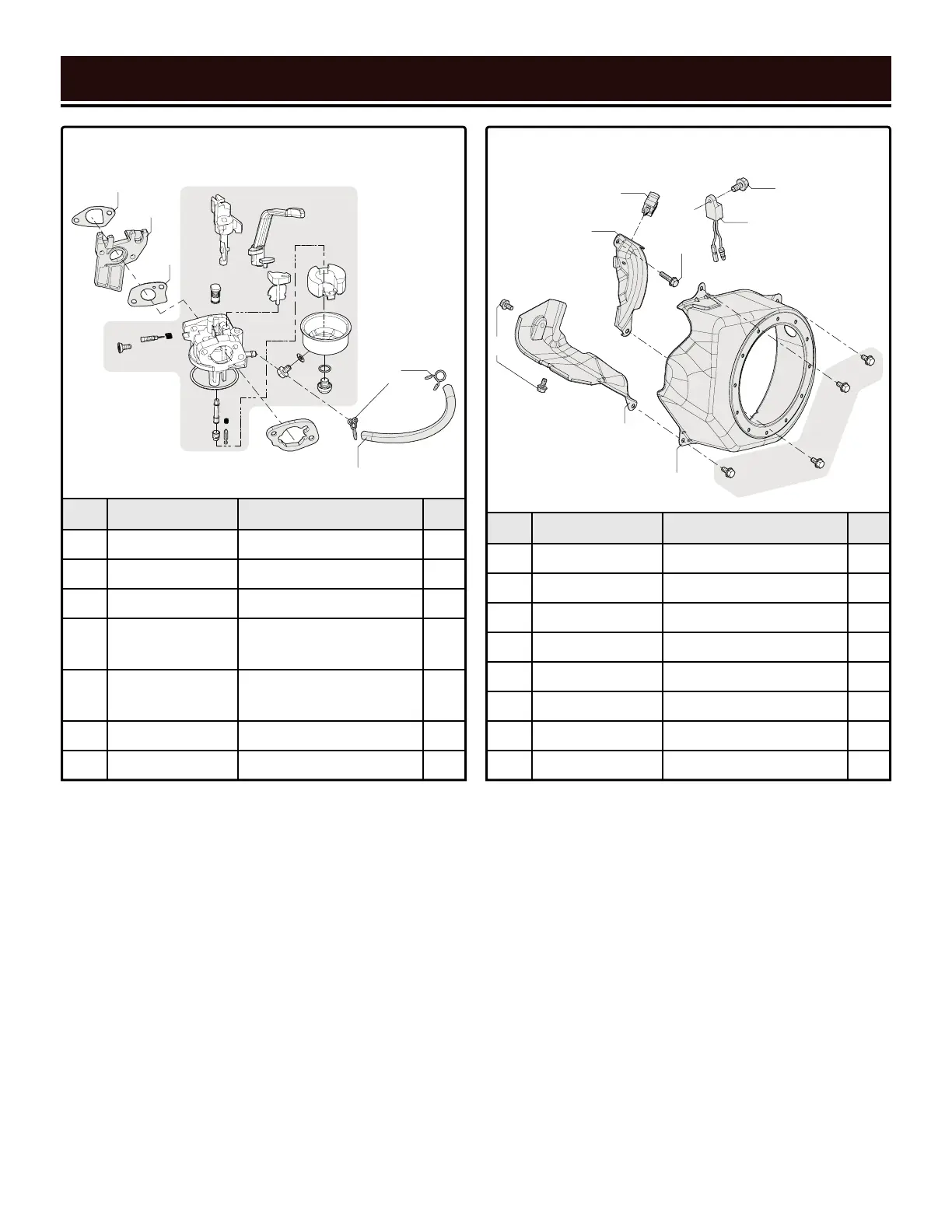

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 P54668 Fan Hood Assembly 1
2 P54044 Wind Cover 1
3 P54596 Lower Shield 1
4 P54612 Diode 1
5 P54040 Bolt, M6x12 4
6 P54040 Bolt, M6x12 3
7 P54596-1 Collar 1
8 P54186 Bolt, M6x24 1
5
1
3
7
6
8
4
2
6
ASSEMBLY 15 - SHROUD
No. Part No. Description Qty.
1 P54173 Carburetor Assembly 1
2 P54168 Air Cleaner Gasket 1
3 P54166 Carburetor Gasket 1
4 P54164
Carburetor Insulator
Plate
1
5 P54162
Carburetor Insulator
Gasket
1
28 P54388 Fuel Tube 1
29 P54390 Hose Clamp 2
3
4
5
28
29
1
ASSEMBLY 14 - CARBURETOR
To Next Page
