KNOW YOUR INVERTER GENERATOR

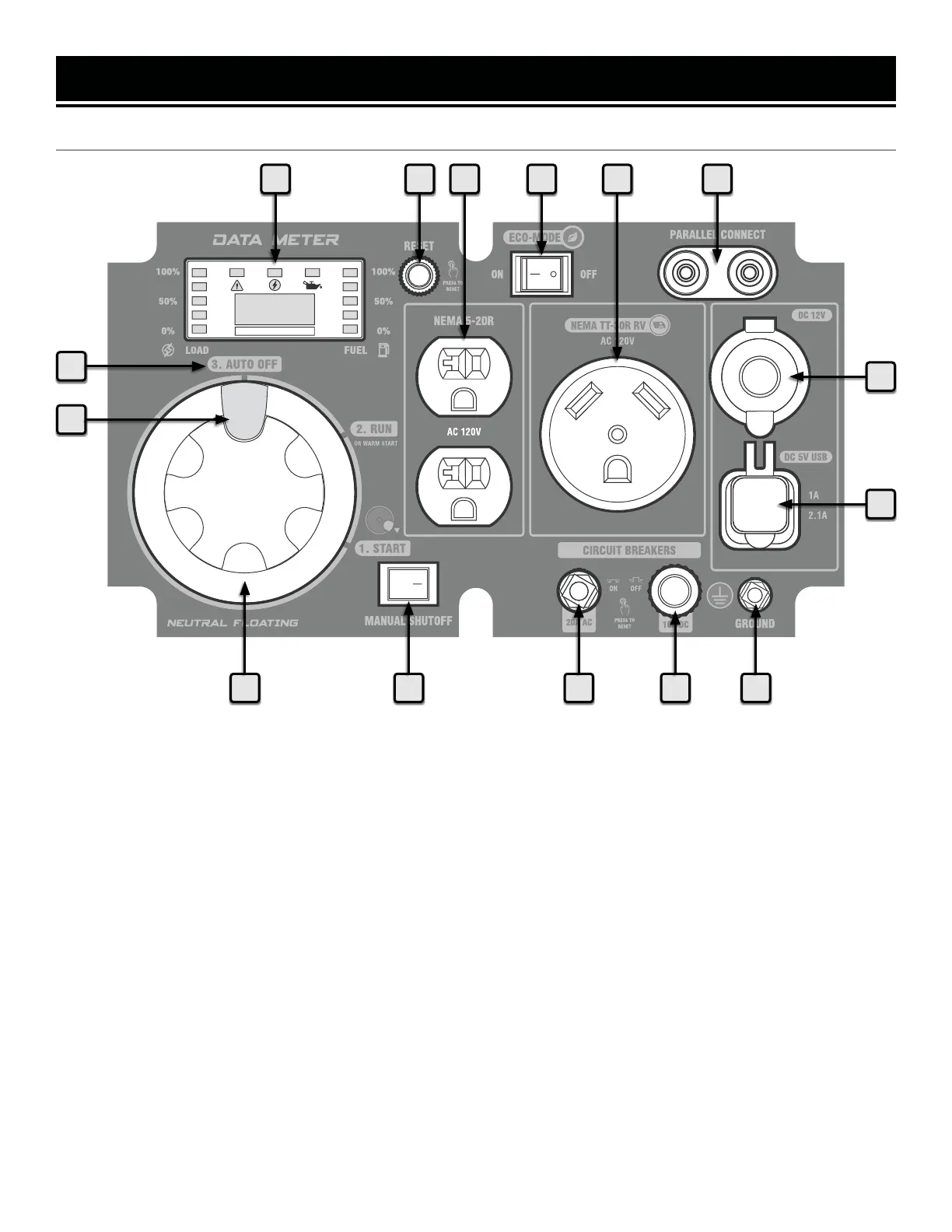

CONTROL PANEL
1 3 4 65
7
8
910111213
15
1. Data Meter with Indicator Lights
2. Reset Button
Push button to reset the circuit (see page 25)
3. AC 120V NEMA 5-20 Duplex Receptacles (20A)
4. Eco-Mode Switch
Turn ON to increase fuel economy and runtime when the
load is below 2625W (75% load)
5. AC 120V NEMA TT-30 Receptacle (29.1A)
6. Parallel Connection Port
Connect two WEN inverter generators through a parallel
connection kit for a higher output.
7. DC 120V Cigarette-Lighter Style Receptacle
8. DC 5V USB Outlet
9. Grounding Nut
Ground generator to reduce risk of electric shock
10. DC Circuit Breaker (10A)
11. AC Circuit Breaker for NEMA 5-20R (20A)
12. Manual Shutoff Button
Push down for 10 seconds to shutoff generator manu-
ally (see page 27)
13. 3-in-1 Switch
Turn switch to start, run, and automatically shut off the
generator
14. Engine Start Button
Turn switch to "Start" and press button to ignite the en-
gine (see page 20)
15. Auto OFF / Fuel Shutoff
Automatically shuts off generator after fuel in the carbu-
retor is consumed (see page 27)
11
2
14
To Next Page
