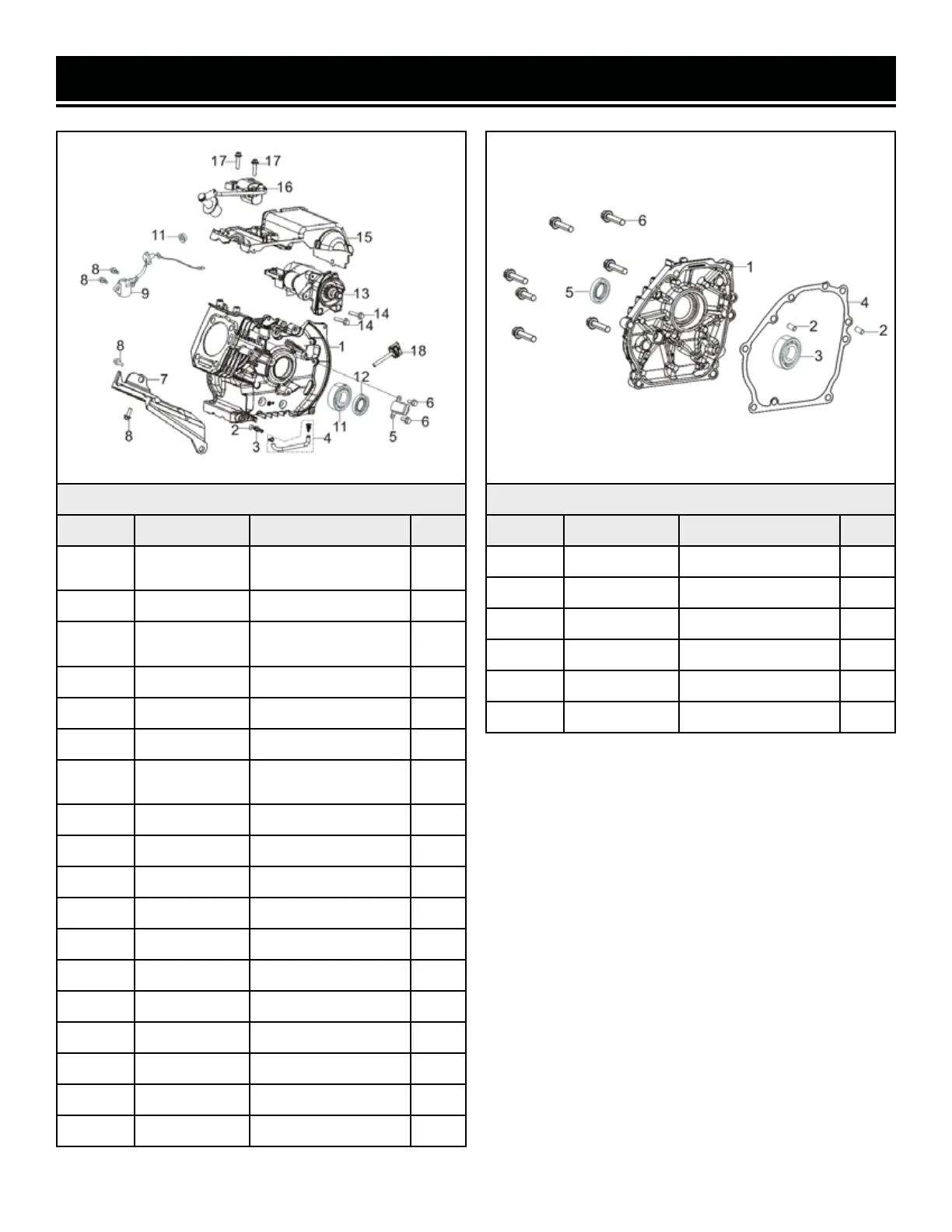

Fig. 1 - Crankcase Assembly

No. Part No. Description Qty.

1-1 56380i-0101

Crankcase

Subassembly

1-2 56380i-0102 Flat Washer 1

1-3 56380i-0103

Connector,

Oil Drain Hose

1-4 56380i-0104 Oil Drain Hose 1

1-5 56380i-0105 Trigger 1

1-6 56310i-1106 Bolt 2

1-7 56380i-0107

Crankcase Side

Shield

1-8 56310i-1201 Bolt 4

1-9 56310i-0211 Engine Oil Sensor 1

1-10 56310i-0210 Nut 1

1-11 56380i-0111 Bearing 1

1-12 56310i-0306 Oil Seal 1

1-13 56380i-0113 Starter Motor 1

1-14 56380i-0114 Bolt 2

1-15 56380i-0115 Protective Cover 1

1-16 56380i-0116 Ignition Coil 1

1-17 56380i-0117 Bolt 2

1-18 56380i-0118 Oil Dipstick 1

Fig. 2 - Crankcase Cover Assembly

No. Part No. Description Qty.

2-1 56380i-0201 Cover, Crankcase 1

2-2 56200-0803 Pin 2

2-3 56380i-0203 Ball Bearing 1

2-4 56380i-0204 Gasket, Crankcase 1

2-5 56310i-0306 Seal, Oil 1

2-6 56310i-0307 Bolt 6

EXPLODED VIEW & PARTS LIST

Wen 56455i User Manual
