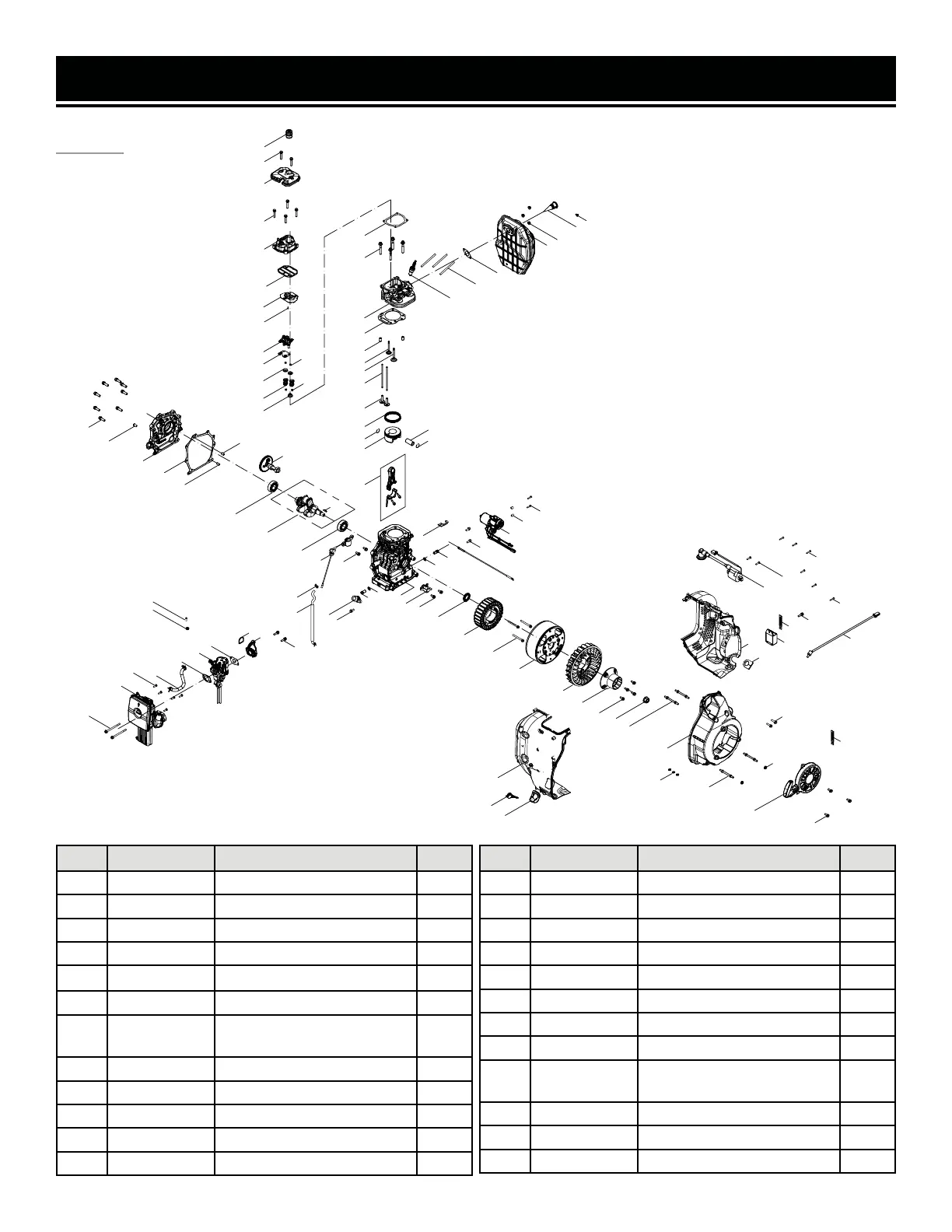

EXPLODED VIEW & PARTS LIST
ENGINE
NO. PART NO. DESCRIPTION QTY.
1 56477i-101 Bolt, M6x14 3
2 56477i-102 Bolt, M6x85 2
3 56477i-103 Air Filter Assembly 1
4 56477i-104 Bolt, M5x12 5
5 56477i-105 Breather Hose 1
6 56477i-106 Air Filter Gasket 1
7 56480iX-107
Carburetor and Stepper Motor
Assembly
1
8 56477i-108 Carburetor Gasket 1
9 56480iX-109 Screw, M4x8 2
10 56480iX-110 Nut, M4 1
11 56477i-111 Self-tapping Screw, ST4.8x20 2
12 56360iX-087 Self-tapping Screw, ST4.2x25 6
NO. PART NO. DESCRIPTION QTY.
13 56360iX-084 Clip 2
14 56360iX-082 Clip 3
15 56477i-115 Spark Arrestor 1
16 56477i-116 Intake Manifold Gasket 1
17 56477i-117 Intake Manifold 1
18 56360iX-029 Clamp 1
19 56477i-119 Fuel Hose 1
20 56477i-120 Bolt, M8x30 8
21 56477i-121
Bushing,
12x16.8-8.5x6.5
1
22 56477i-122 Crankcase Cover 1
23 56477i-123 Crankcase Gasket 1
24 56477i-124 Pin, 8x14 2
22
23
25
26
25
24
24
28
27
6
8
7
5
3
63
61
59
62
60
59
58
57
56
55
54
53
52
51
50
49
45
44
43
42
41
40
35
30
66
65
68
69
75
69
68
66
86
85
84
83
82
78
9
10
90
39
32
16
17
73
29
79
38
11
47
31
81
46
88
67
36
91
4
48
33
37
80
87
19
18
71
71
70
21
2
64
76
77
74
12
72
12
14
15
89
73
34
13
94
93
95
96
97
98
13
92
34
35
