Wen 56480iX

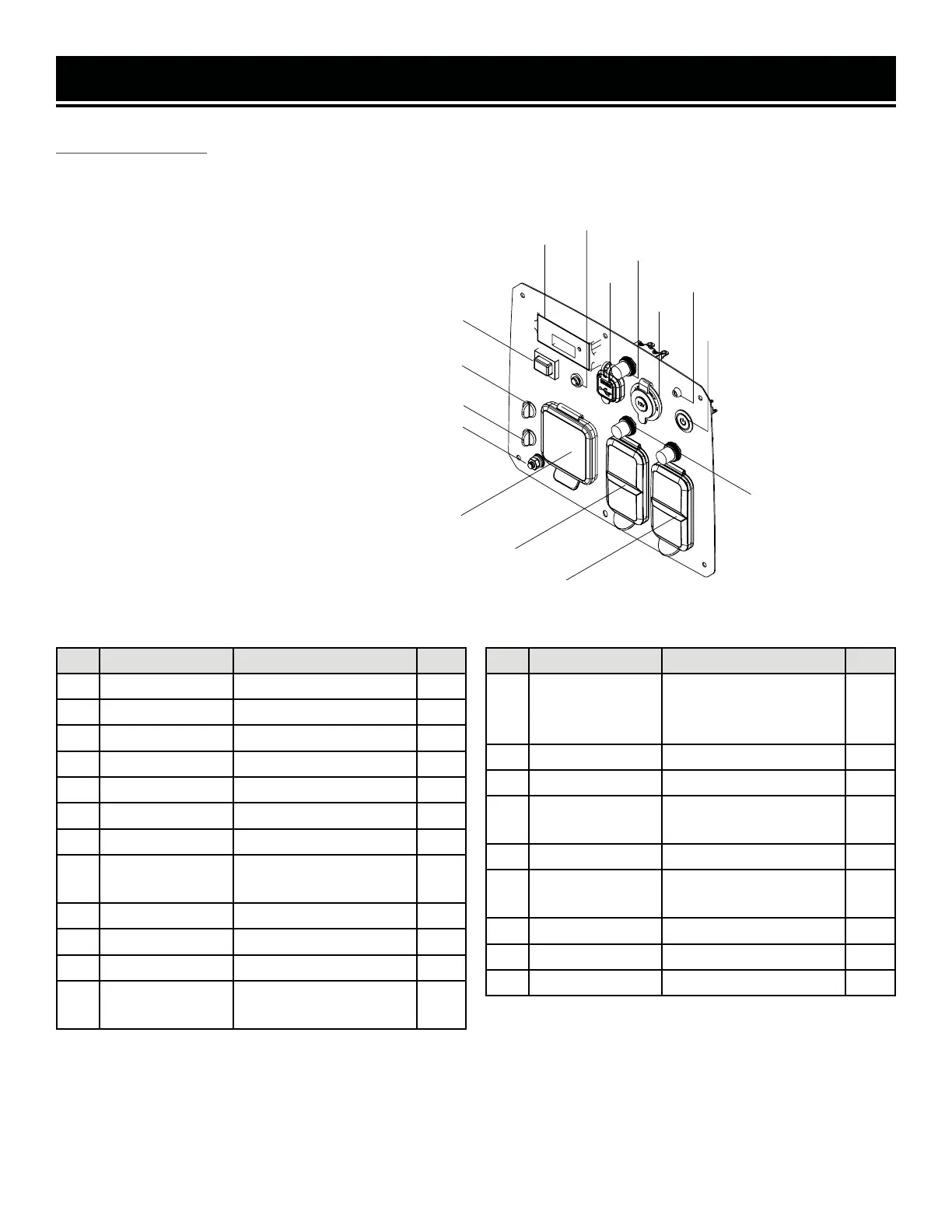

EXPLODED VIEW & PARTS LIST
CONTROL PANEL
NO. PART NO. DESCRIPTION QTY.
1 56203i-005.4 Eco-Mode Switch 1
2 56203i-005.14R Parallel Socket, Red 1
3 56203i-005.14B Parallel Socket, Black 1
4 56360iX-205 Nut, M6 1
5 56203i-005.11 Lock Washer, 6mm 1
6 56203i-005.12 Flat Washer, 6mm 1
7 56360iX-208 Grounding Stud 1
8 56360iX-209
Toothed Lock Washer,
6mm
1
9 56360iX-210 Flat Washer, 5mm 1
10 56360iX-211 Lock Washer, 5mm 1
11 56360iX-212 Nut, M5 1
12 DG4500iX-207
NEMA TT-30R 120V
30A AC Receptacle
1
NO. PART NO. DESCRIPTION QTY.
13 DG4500iX-208
NEMA 5-20R 120V
20A AC Duplex
Receptacle
2
14 56477i-214 Multi-Meter 1
15 56477i-215 Reset Button 1
16 56477i-216
USB Receptacle
(2.1A / 1A)
1
17 56477i-217 DC Breaker, 8A 1
18 56477i-218
12V DC Automotive
Outlet
1
19 56235iX-005.19 CO Sensor LED 1
20 56480iX-220 Start Button 1
21 56500-208 AC Breaker, 20A 2
4,5,6,7,8,9,10,11
1
2
3
12
13
13
14
15
16
17
18
19
20
21
37
