SQUARE THE TABLE
To ensure accurate end sanding, the work tables must be square
to the sanding surfaces prior to using the tables for disc sanding.

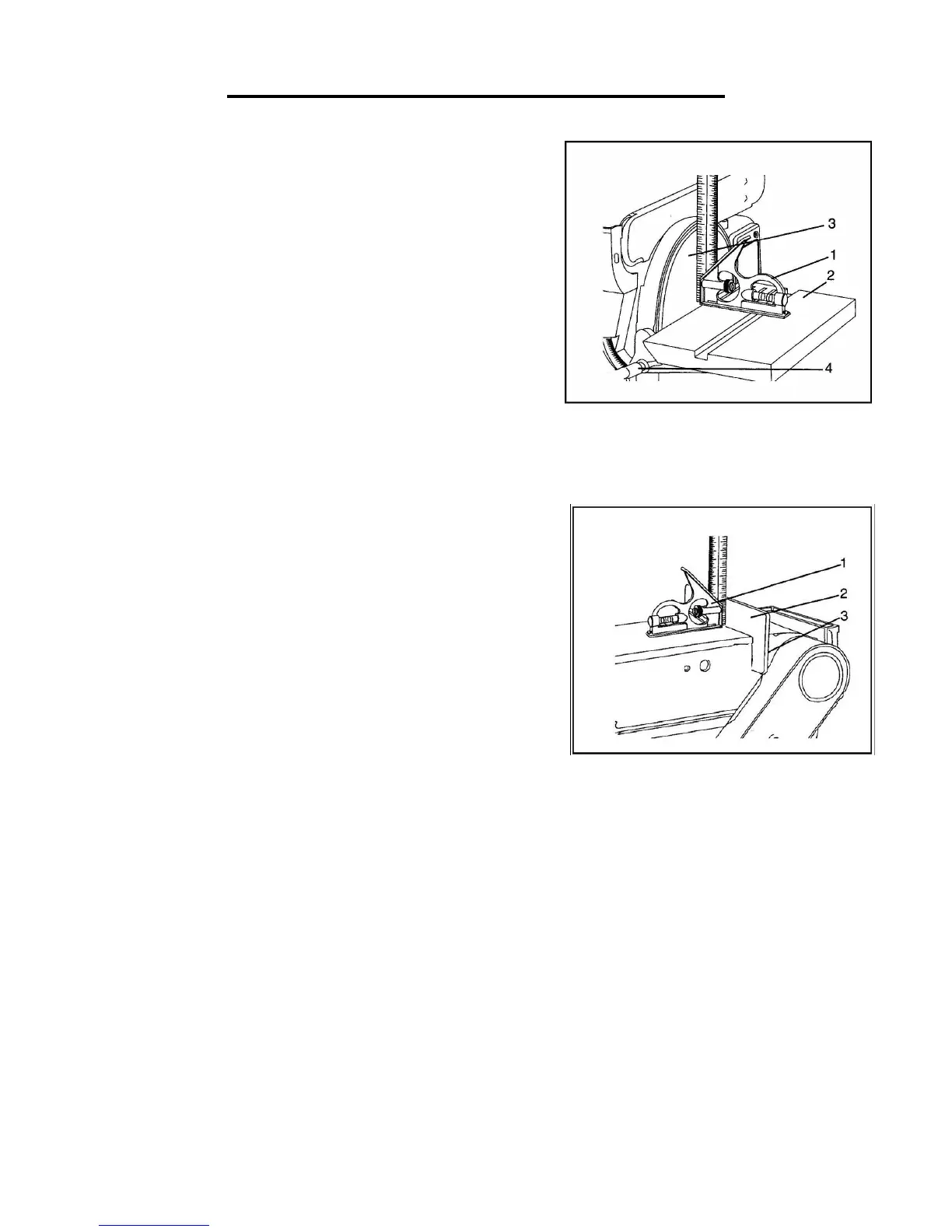

1. Adjust the table to be 90° with the sanding surface.
2. Using a combination square (1), place one end on the table
with the ruler end against the sanding surface (3). Check that the
table is 90° to the sanding surface.
3. If the table is not 90° to the sanding surface, loosen the han-
dle (4), adjust the table, tighten the handle and recheck with the
square.
SQUARE THE WORK SUPPORT
The work support (2) must be square to the sanding belt when
using the belt sander in a horizontal position. To keep the work-
piece from being carried along the belt:
1. Make sure the sanding belt is tight; also check that the tension
lever is fully tightened.
2. Place the combination square (1) on the belt with the ruler
against the work support (2).
3. Adjust by loosening the work support locking screw (3), square
the work support.
4. Tighten the work support locking screw (3).
ASSEMBLY AND ADJUSTMENTS
