6
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
4.3 A 18 gauge 16 gauge 16 gauge 14 gauge
CHECK with a licensed electrician or service personnel if you do not completely understand the grounding
instructions or whether the tool is properly grounded.
USE ONLY THREE-WIRE EXTENSION CORDS that h a v e
three-pronged plugs and outlets that accept the tool’s plug as
shown in Fig. A. Repair or replace a damaged or worn cord im-
mediately.
CAUTION: In all cases, make certain the outlet in question is
properly grounded. If you are not sure, have a licensed electri-
cian check the outlet.
WARNING: This tool is for indoor use only. Do not expose to rain or use in damp locations.
Guidelines for using extension cords
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one
heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. The table below shows the correct size to be used ac-
cording to cord length and nameplate ampere rating. When in doubt, use a heavier cord. The smaller the
gauge number, the heavier the cord.
Make sure your extension cord is properly wired and in good condition. Always replace a damaged exten-
sion cord or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and should be
protected with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the
switch is in the OFF position and the electric current is rated the same as the current stamped on the motor
nameplate. Running at a lower voltage will damage the motor.
WARNING: This tool must be grounded while in use to protect the operator from electric shock.
ELECTRICAL INFORMATION

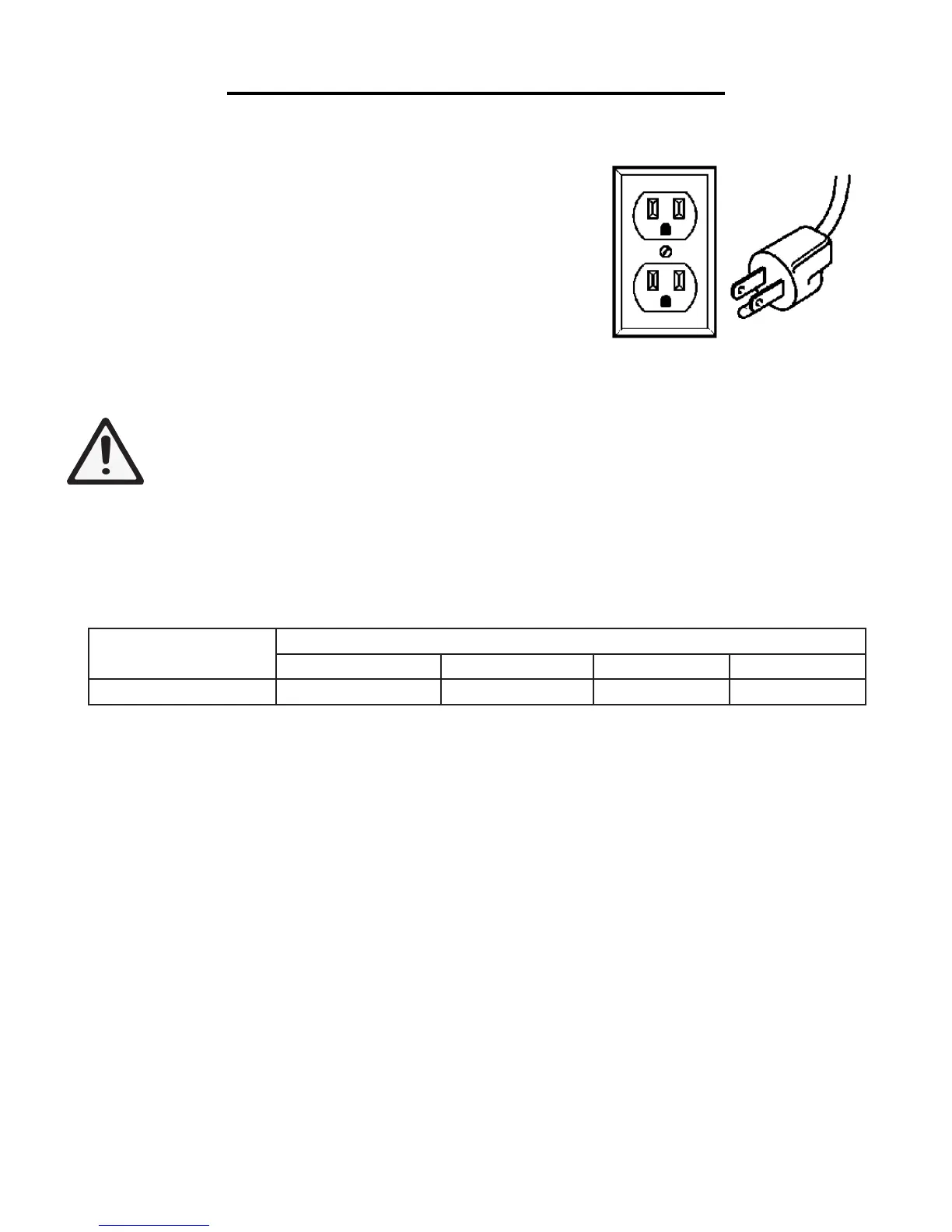

FIGURE A
