No. Part No. Description Qty.
1-1 56200-0901
Crankcase
Subassembly
1
1-2 56200-0902 Oil Seal 2
1-3 56200-0903 Ball Bearing, 6204 2
1-4 56200-0904 Crankcase Gasket 1
1-5 56200-0905
Positioning Pin,
Type A
2
1-6 56200-0906 Oil Dipstick 1
1-7 DF250i-0117 Crankcase Cover 1
1-8 56200-0908 Bolt, M6x22 7

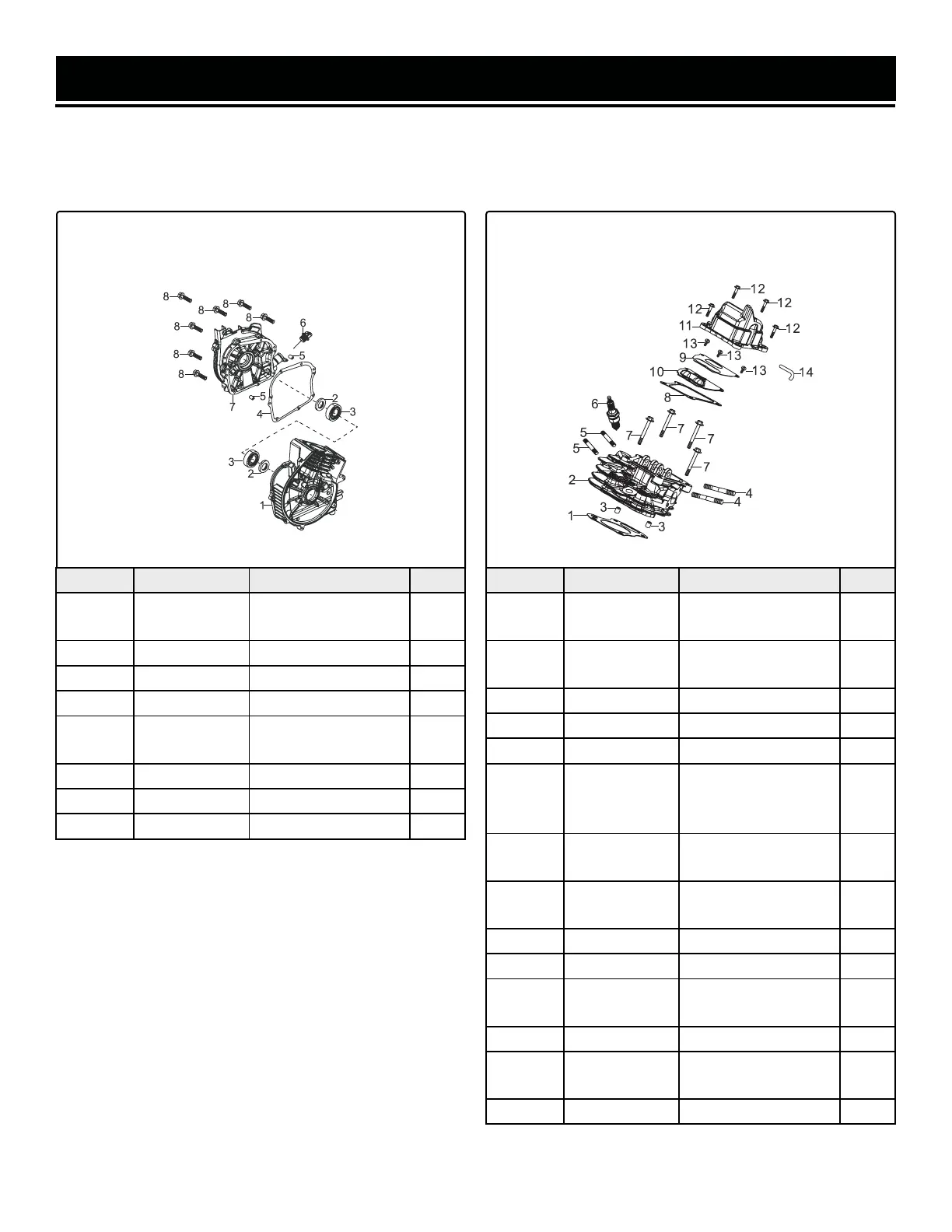

EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-(800)
232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by
the three-year warranty. Not all parts may be available for purchase.
FIG. 1 - CRANKCASE &
COVER SUBASSEMBLIES
No. Part No. Description Qty.
2-1 56200-0801
Cylinder Head
Gasket
1
2-2 DF250i-0201
Cylinder Head
Subassembly
1
2-3 56200-0803 Positioning Pin 2
2-4 56200-0804 Stud Bolt (M6) 2
2-5 56200-0805 Stud Bolt (M6) 2
2-6 56200-0806
Spark Plug
(Torch A5RTC /
NGK CR5HS)
1
2-7 56200-0807
Cylinder Head Bolt,
M6x50
4
2-8 56200-0808
Cylinder Head
Cover Gasket
1
2-9 56200-0809 Breather Plate 1
2-10 56200-0810 Breather Gasket 1
2-11 56200-0811
Cylinder Head Cover
Subassembly
1
2-12 56200-0812 Bolt, M6x16 4
2-13 56200-0813
Phillips Head
Screw, M6x8
3
2-14 56200-0814 Breather Tube 1
FIG. 2 - CYLINDER HEAD
SUBASSEMBLY & SPARK PLUG
38
