Wen DF250i

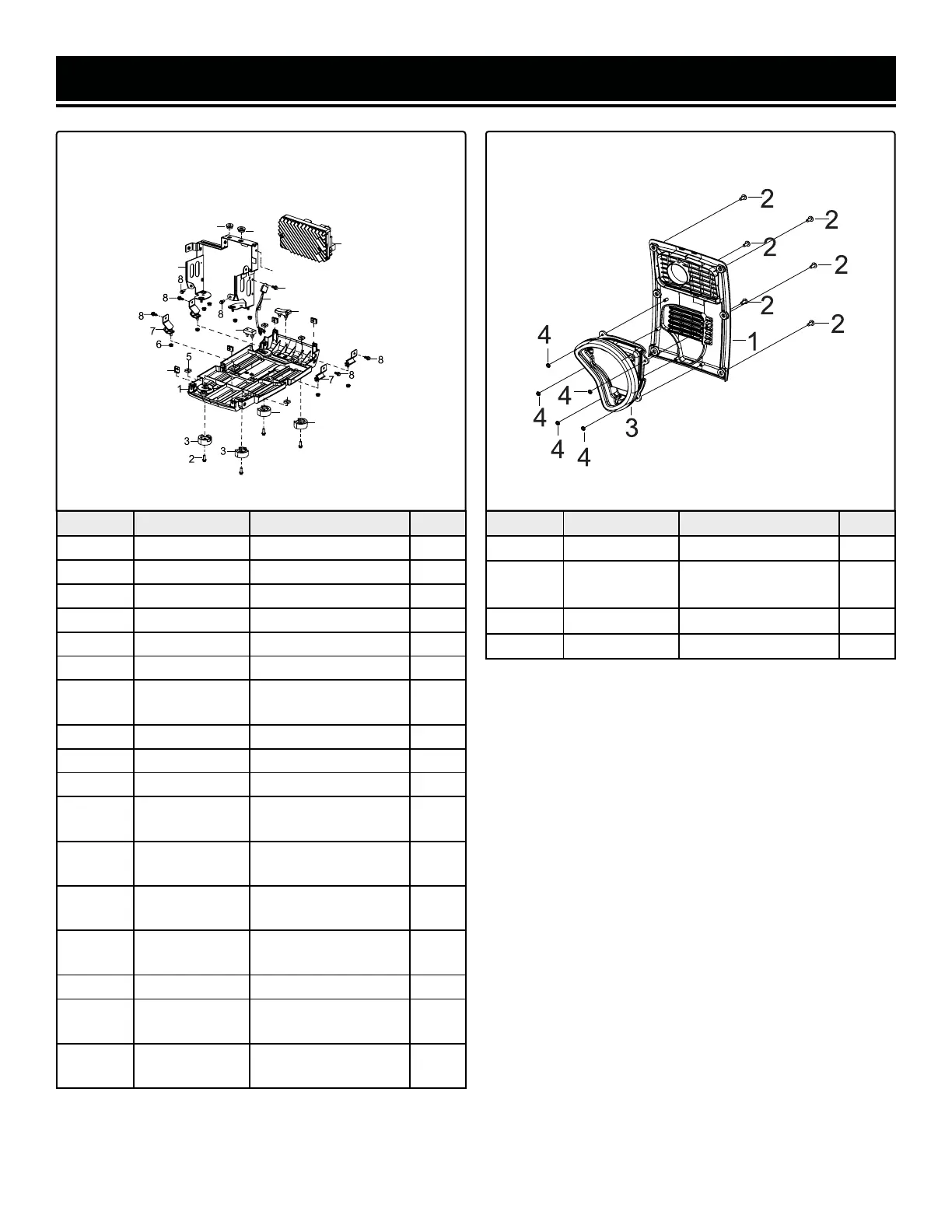

EXPLODED VIEW & PARTS LIST
FIG. 14 - BOTTOM PLATE,
FRAME, & INVERTER
No. Part No. Description Qty.
14-1 56200-0501 Bottom Plate 1
14-2 56200-0502 Bolt, M6x14 4
14-3 56200-0503 Frame Seat 2
14-4 56200-0504 Frame Seat 2
14-5 56200-0505 Square Nut, M6 4
14-6 56200-0506 Flanged Hex Nut, M6 8
14-7 56200-0507
Engine Frame
Cushion
4
14-8 56200-0508 Bolt, M6x12 6
14-9 DF250i-1409 Inverter 1
14-10 56225i-0519 Voltage Regulator 1
14-11 56200-0510
Cushioning Rubber
Bracket
1
14-12 56200-0509
Cushioning Rubber
Bracket
1
14-13 56200-0515
Fuel Tank Rubber
Sleeve
1
14-14 56200-0516
Fuel Tank Rubber
Sleeve
1
14-15 56200-0518 Clip Nut 4
14-16 DF250i-1416
Inverter Mounting
Bracket
1
14-17 56200-0629
Flanged Hex Bolt,
M6x14
1
FIG. 15 - MUFFLER SIDE COVER
No. Part No. Description Qty.
15-1
DF250i-1501 Muffler Side Cover 1
15-2 56200-0302
Washer and Screw,
M5x16
6
15-3 56200-0303 Cover Cushion 1
15-4 56200-0304 Spring Clip 5
45
14
13
15
4
4
9
10
11
12
16
17
