KNOW YOUR GENERATOR

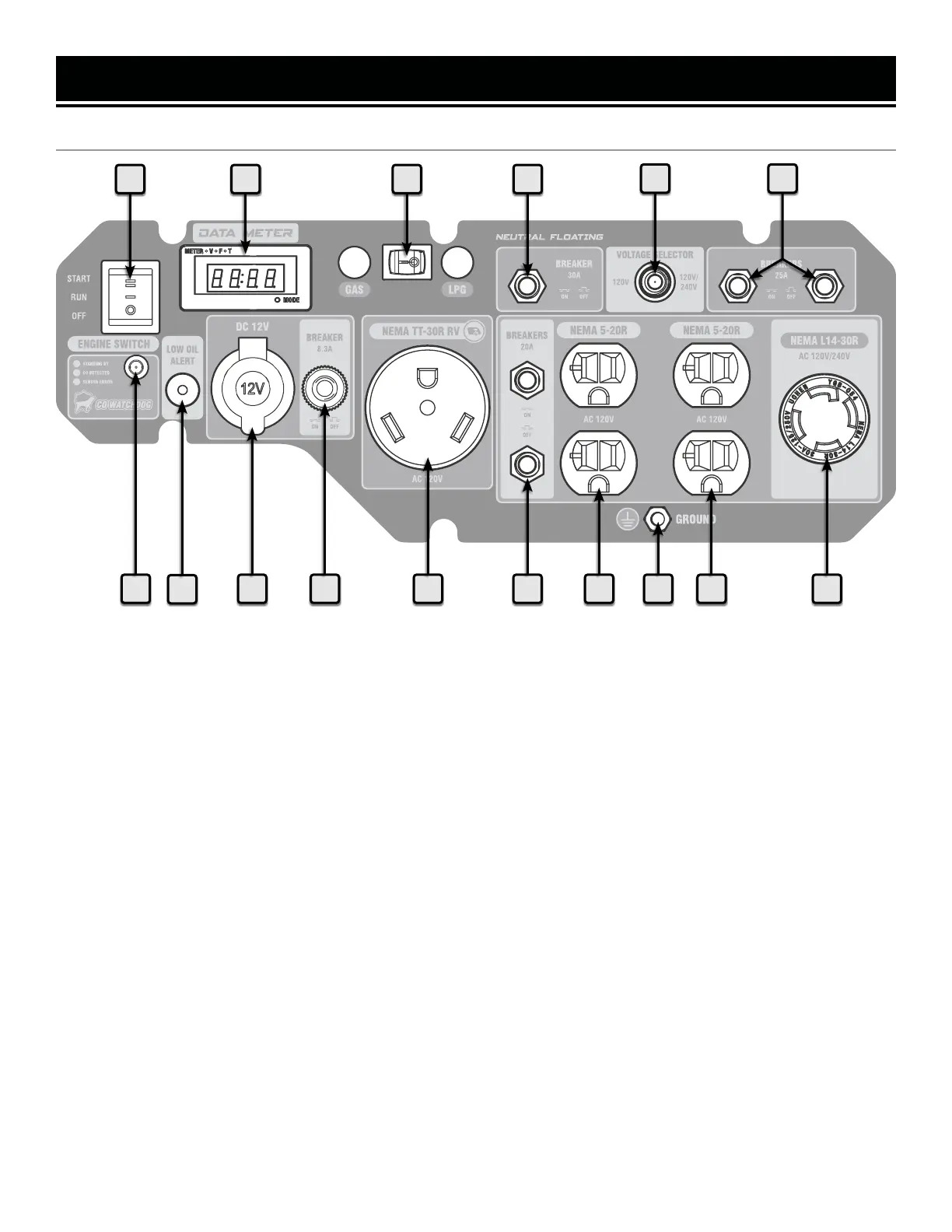

CONTROL PANEL
1 4
1. Engine Switch
Start the engine using this switch.
2. Data Meter
Displays voltage, frequency, total runtime (HHHH), and
session runtime (HH:MM). Press the MODE button to
switch between displays.
3. Fuel Selector Switch
Easily switch between gasoline or LPG before or during
operation. See p. 24 for more information.
4. Circuit Breaker (30A)
5. Voltage Selector Switch
Switch between 120V and 240V outlets. When the
switch is set to "120V", the 120V outlets are active; when
the switch is set to "120V/240V", the L14-30R outlet is
active.
6. Circuit Breakers (25A)
7. NEMA L14-30R
AC 120V/240V split-phase. Only active when "120V/240V"
is selected.
2 3
5
8. AC 120V NEMA 5-20R Duplex Receptacles (20A)
Standard household outlets provide 120V 60Hz power.
9. Grounding Nut
Ground generator to reduce risk of electric shock.
10. Circuit Breakers (20A)
11. AC 120V NEMA TT-30R RV Receptacle (30A)
Standard RV connector.
12. Circuit Breaker (8.3A)
13. DC 12V Cigarette-Lighter Style Receptacle
14. Low Oil Alert
Illuminates if the oil level is too low.
15. CO WATCHDOG Carbon Monoxide Monitor
Measures the accumulation of poisonous CO gas while
the generator is running. If the level of CO gas gets too
high, the CO Watchdog system will automatically shut
down the generator. See p. 26 for more information.
7
6
881011 91213
14
15
