TOOL PURPOSE
Resurface boards, flatten workpieces, and much more with your WEN Jointer. Refer to the diagram
below to become familiarized with the parts and controls of your jointer.

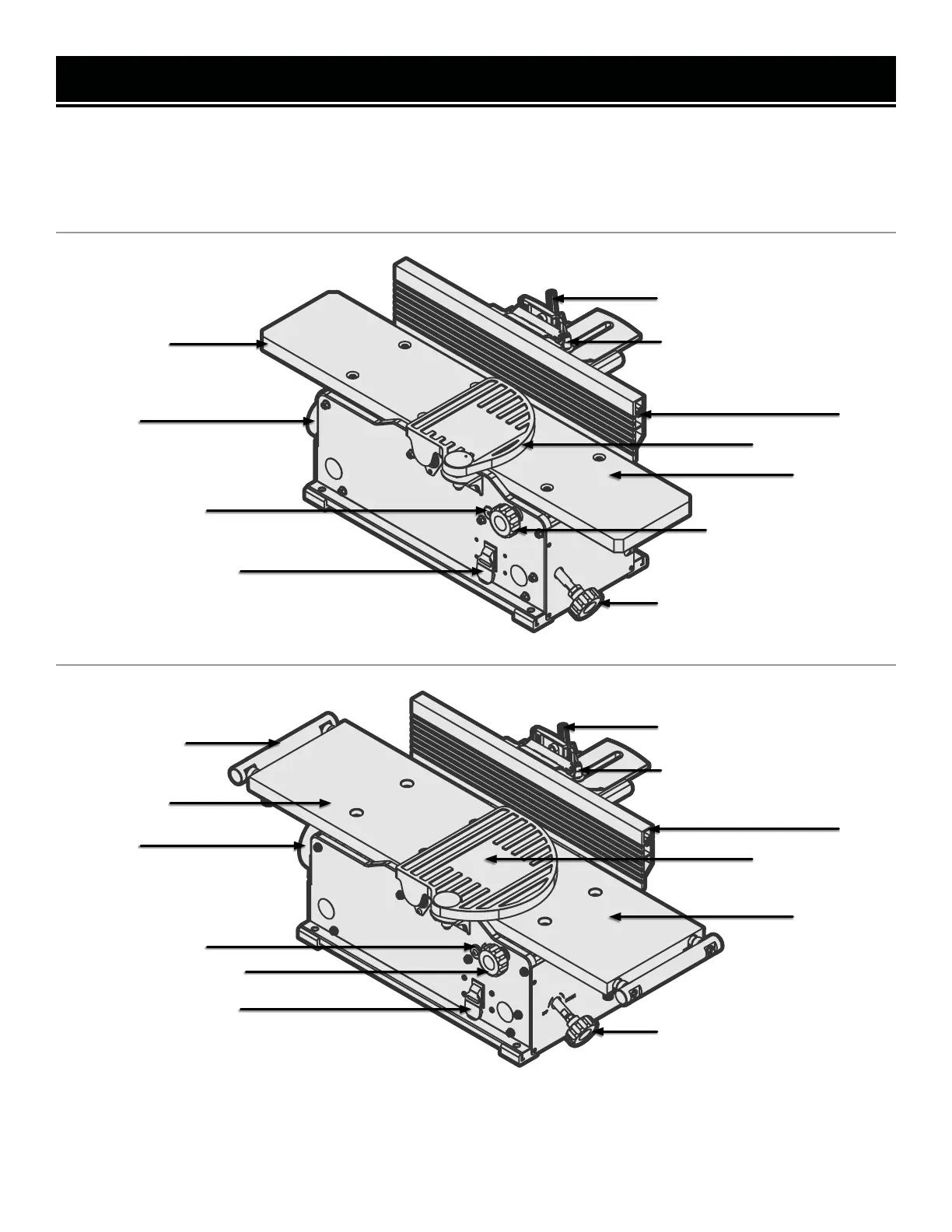

KNOW YOUR JOINTER
10
ON / OFF Safety Switch
NOTE: A protective coating of lubricating oil has been applied during assembly to protect against rust. Wipe down
all components thoroughly. Apply a light coat of good-quality paste wax to the table and fence to protect the sur-
faces and make boards slide smoothly.
JT630H
JT833H
Dust Port
Outfeed Table
Infeed Table
Fence
Cutterhead Guard
Depth of Cut Adjustment Knob
Depth of Cut Lock Knob
Depth of Cut Scale
Fence Support Locking Handle
Fence Bracket Locking Handle
Outfeed Table
Dust Port
Depth of Cut Scale
ON / OFF Safety Switch
Depth of Cut Adjustment Knob
Depth of Cut Lock Knob
Infeed Table
Cutterhead Guard
Fence
Fence Bracket Locking Handle
Fence Support Locking Handle
Extension Arms
