7

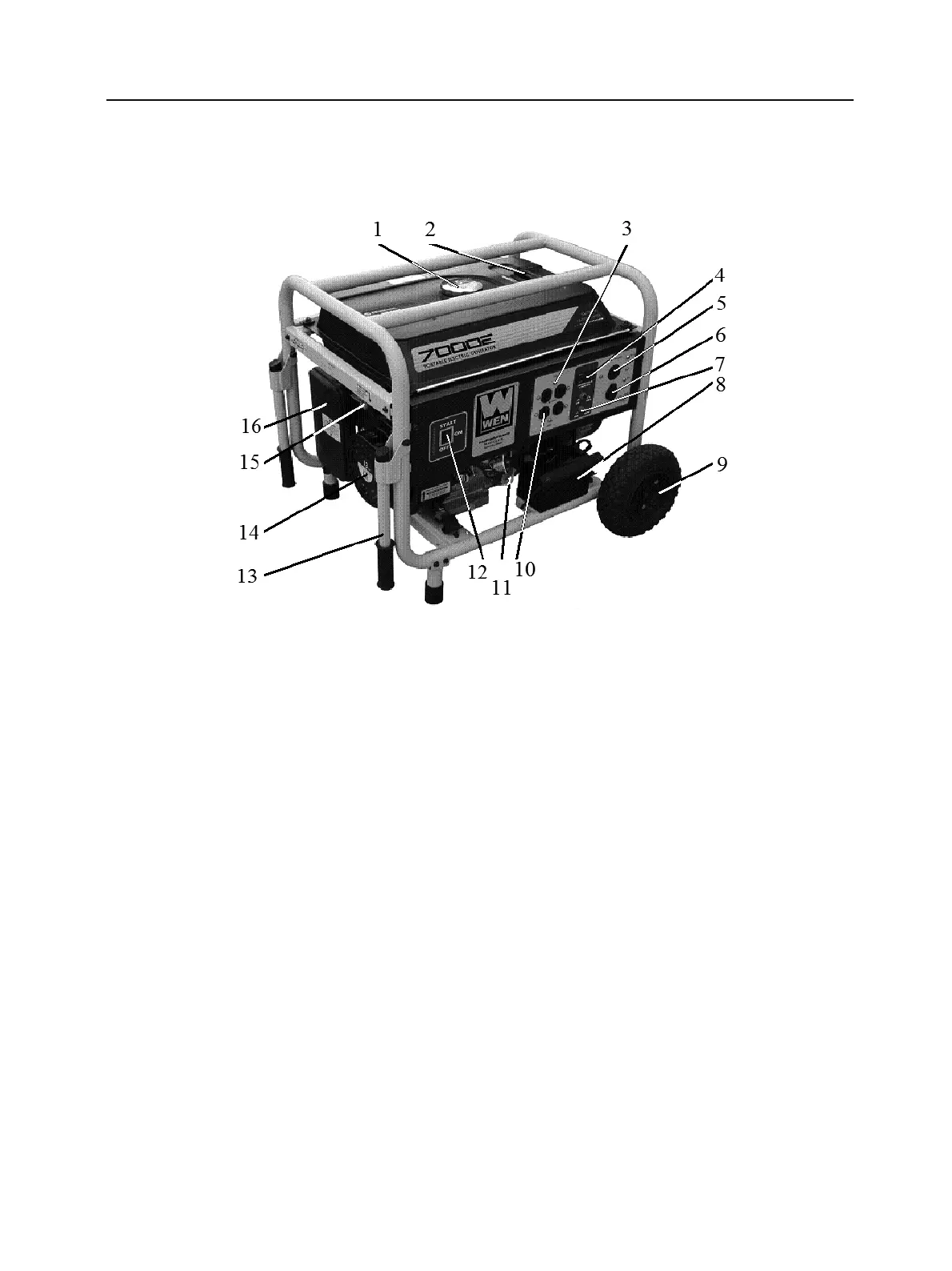

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and controls
of your generator.
.
(1) Fuel Cap- Access to the fuel tank for adding
fuel.
(2) Fuel Gauge- Indicates the amount of fuel in the
tank.
(3) Power Indicator-Green lights that turn on to
indicate the output of power to each receptacle.
(4) Digital Engine hour counter
(5) 240/120 Volt AC Receptacle- To connect
electrical devices that run 120 and/or 240 Volt,
60 Hz, single phase, AC current.
(6) 12V Cigarette lighter Style DC Receptacle
(7) Circuit Reset Buttons- Reset buttons that
protect the generator from electrical overload.
(8) 12V Battery
(9) 10" Never Flat Wheels- For easy transport.
(10) 120 Volt AC Duplex Receptacle- To connect
electrical devices that run 120 Volt, 60 Hz,
single phase, AC current.
(11) Oil Fill and Dipstick- Location for checking and
filling engine oil.
(12) Engine Switch- Used to start/stop engine.
(13) Handles- For easy transport.
(14) Recoil Starter- Pull-cord for starting engine.
(15) Fuel Valve- Allows fuel to enter engine.
(16) Air Cleaner- a removable, cleanable, sponge-like
element that limits the amount of dirt pulled into the
engine.
