Wenger 100 - OPERATION - PANEL DESCRIPTION; Panel Description

5
OPERATION

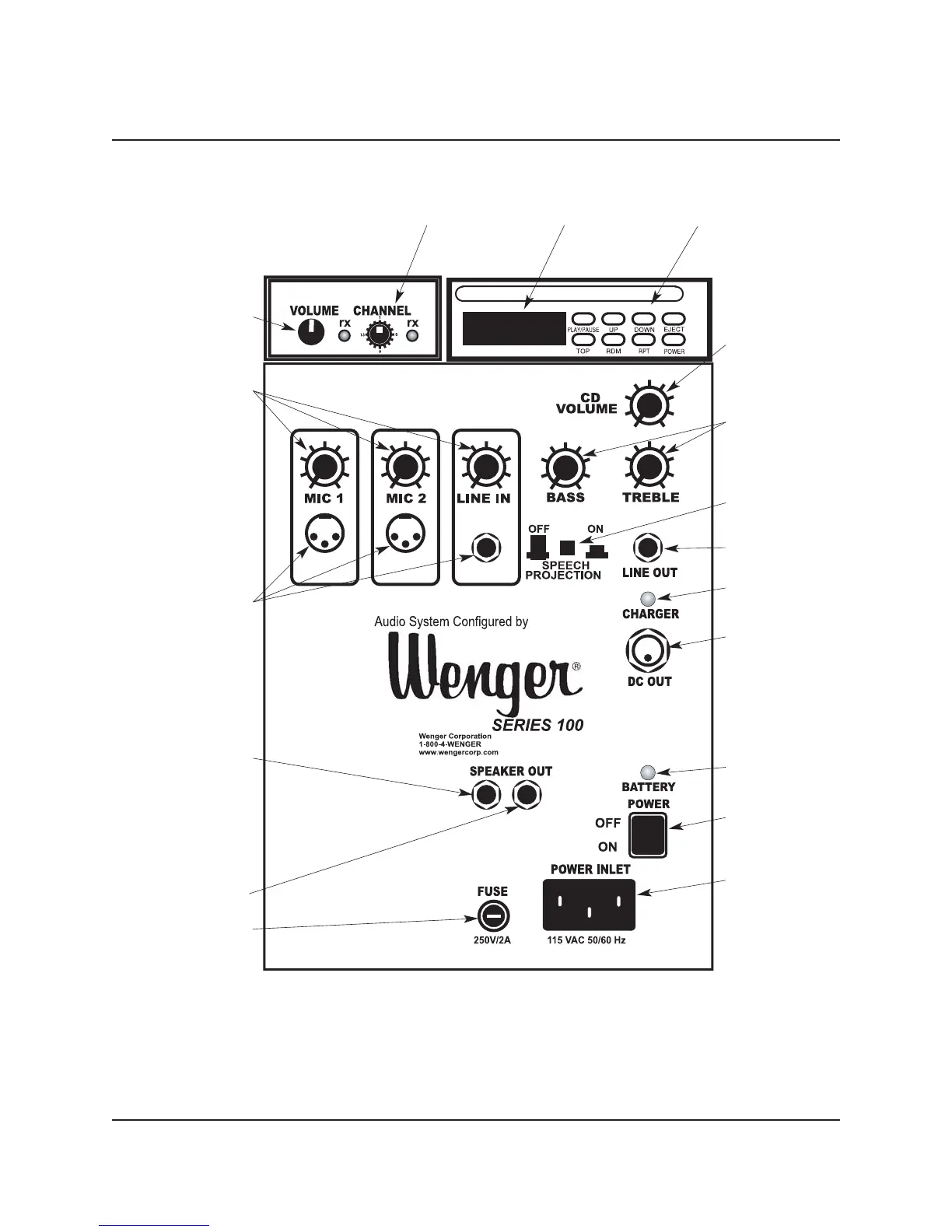

PANEL DESCRIPTION
Input Level Control
Input Connectors
CD Level Control
Tone Controls
Speech Projection
Switch
Line Out Connector
Battery Charger
LED
12 VDC Output
Connector
Input Connectors
Unswitched Speaker
Output Connector
Switched Speaker
Output Connector
250VAC /2 Ampere
Slow Blow Fuse
Battery Charge
Level LED
On Off Power
Switch
120 VAC Grounded
Power Connector
Wireless Channel
Selector
Wireless Level
Control
CD Player
Display Panel
CD Player Control
Push Buttons
Note: All audio connections must be made with shielded cable to avoid hum, buzzing and radio
interference.
MIC 1 MIC 2 . . . . . . . .Balanced XLR, low impedance connectors for use with balanced microphones.
They are +12 VDC condenser microphone power to use with condenser type
microphones.
Illustration is not to scale.
