5

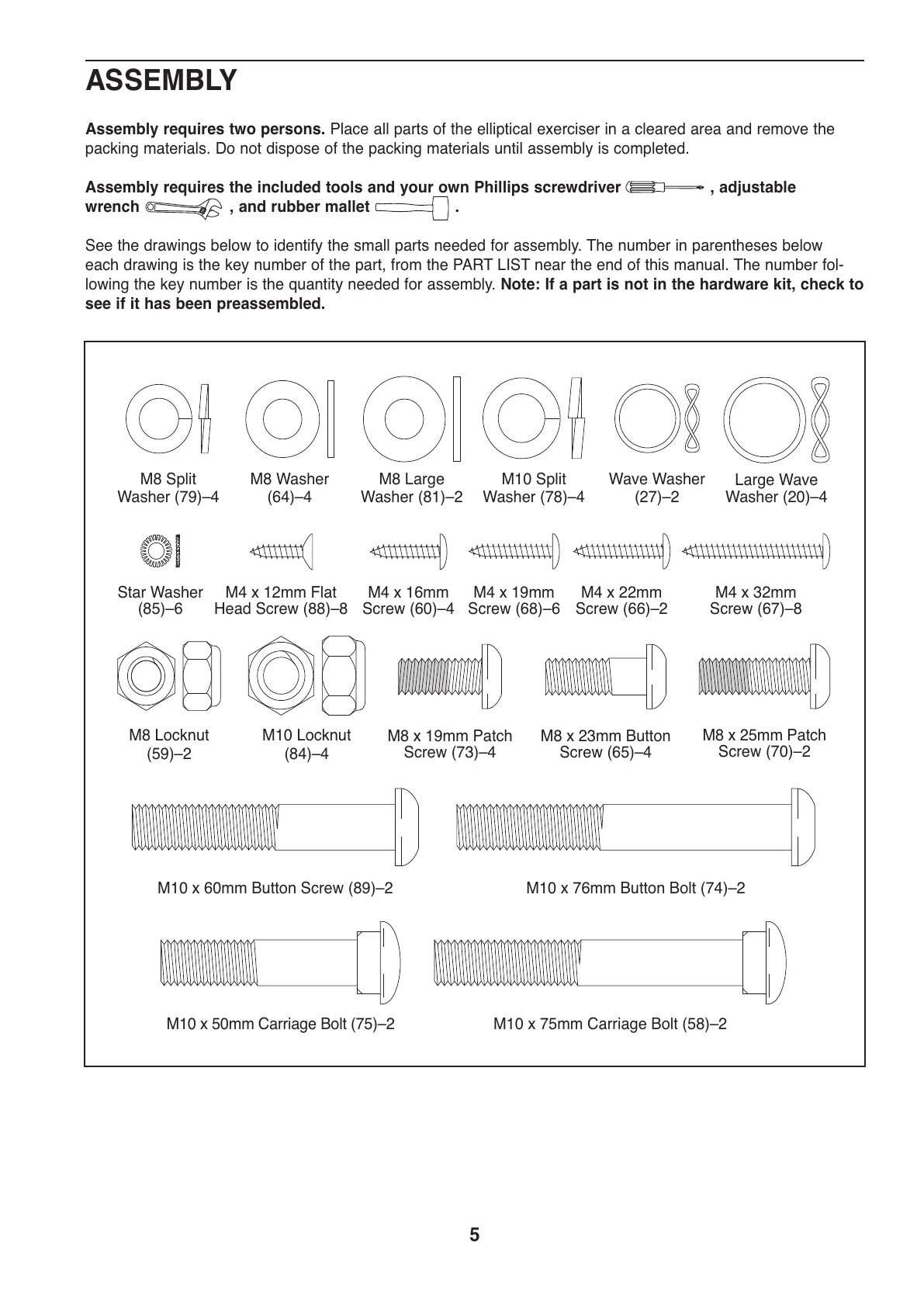

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to
see if it has been preassembled.
M8 Split
Washer (79)–4
M8 Washer
(64)–4
M10 Split
Washer (78)–4
M4 x 16mm
Screw (60)–4
Large Wave
Washer (20)–4
M8 x 25mm Patch
Screw (70)–2
M8 x 19mm Patch
Screw (73)–4
M8 Locknut
(59)–2
M10 Locknut
(84)–4
M8 x 23mm Button
Screw (65)–4
Wave Washer
(27)–2
M4 x 19mm
Screw (68)–6
M8 Large
Washer (81)–2
M4 x 32mm
Screw (67)–8
M4 x 12mm Flat
Head Screw (88)–8
Star Washer
(85)–6
M10 x 76mm Button Bolt (74)–2M10 x 60mm Button Screw (89)–2
M10 x 50mm Carriage Bolt (75)–2 M10 x 75mm Carriage Bolt (58)–2
M4 x 22mm
Screw (66)–2
