6

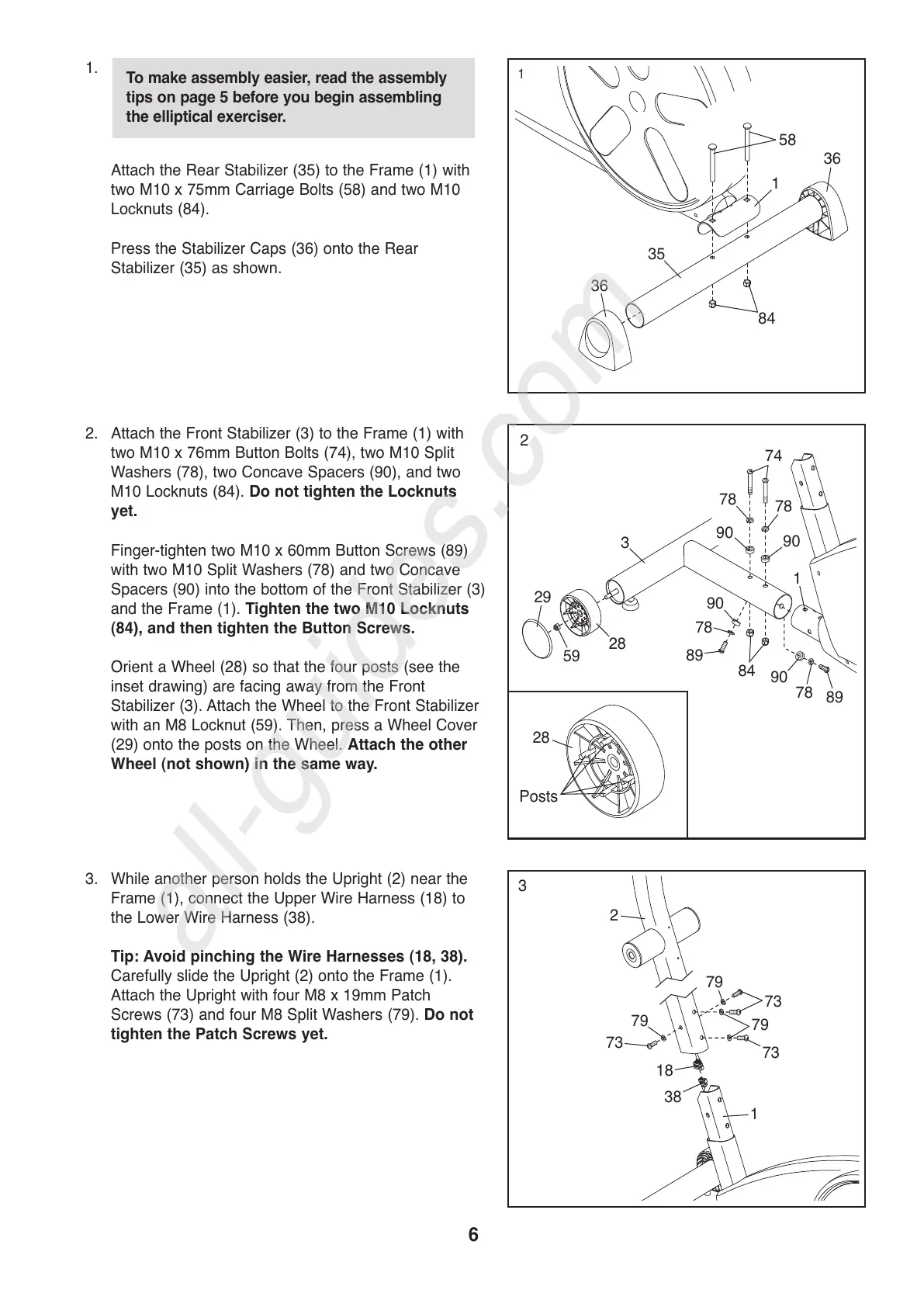

1.
Attach the Rear Stabilizer (35) to the Frame (1) with
two M10 x 75mm Carriage Bolts (58) and two M10
Locknuts (84).
Press the Stabilizer Caps (36) onto the Rear
Stabilizer (35) as shown.
2. Attach the Front Stabilizer (3) to the Frame (1) with
two M10 x 76mm Button Bolts (74), two M10 Split
Washers (78), two Concave Spacers (90), and two
M10 Locknuts (84). Do not tighten the Locknuts
yet.
Finger-tighten two M10 x 60mm Button Screws (89)
with two M10 Split Washers (78) and two Concave
Spacers (90) into the bottom of the Front Stabilizer (3)
and the Frame (1). Tighten the two M10 Locknuts
(84), and then tighten the Button Screws.
Orient a Wheel (28) so that the four posts (see the
inset drawing) are facing away from the Front
Stabilizer (3). Attach the Wheel to the Front Stabilizer
with an M8 Locknut (59). Then, press a Wheel Cover
(29) onto the posts on the Wheel. Attach the other
Wheel (not shown) in the same way.
84
35
1
84
3
78
78
90
90
89
90
78
89
1
36
36
28
29
74
78
90
59
3. While another person holds the Upright (2) near the
Frame (1), connect the Upper Wire Harness (18) to
the Lower Wire Harness (38).
Tip: Avoid pinching the Wire Harnesses (18, 38).
Carefully slide the Upright (2) onto the Frame (1).
Attach the Upright with four M8 x 19mm Patch
Screws (73) and four M8 Split Washers (79). Do not
tighten the Patch Screws yet.
3
2
73
73
1
73
79
38
18
79
79
58
1
To make assembly easier, read the assembly
tips on page 5 before you begin assembling
t
he elliptical exerciser.
2
28
Posts
To Next Page
