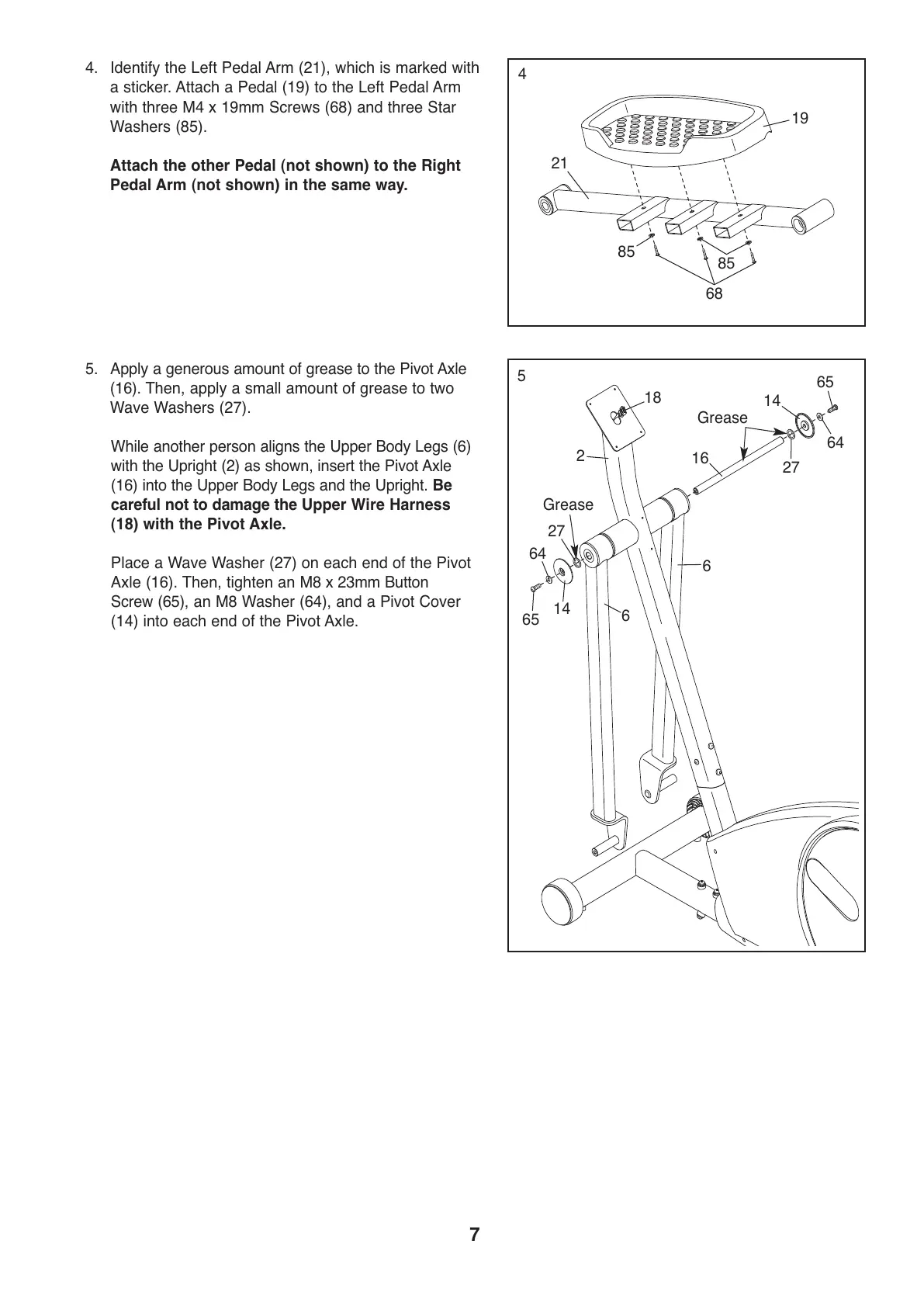

4. Identify the Left Pedal Arm (21), which is marked with
a
sticker. Attach a Pedal (19) to the Left Pedal Arm
with three M4 x 19mm Screws (68) and three Star
Washers (85).
Attach the other Pedal (not shown) to the Right
Pedal Arm (not shown) in the same way.
19
21
68
85
85
5. Apply a generous amount of grease to the Pivot Axle
(16). Then, apply a small amount of grease to two
Wave Washers (27).
While another person aligns the Upper Body Legs (6)
with the Upright (2) as shown, insert the Pivot Axle
(16) into the Upper Body Legs and the Upright. Be
careful not to damage the Upper Wire Harness
(18) with the Pivot Axle.
Place a Wave Washer (27) on each end of the Pivot
Axle (16). Then, tighten an M8 x 23mm Button
Screw (65), an M8 Washer (64), and a Pivot Cover
(14) into each end of the Pivot Axle.
5
14
27
6
2
18
6
65
64
14
64
27
16
Grease
Grease
65
