Weslo 8.25 - The Elliptical Exerciser

8
73
7. Attach the Left Pedal Arm (21) to the left Upper
Body Leg (6) with an M8 x 23mm Button Screw
(65), an M8 Washer (64), and a Pedal Leg Cover
(23).
Apply grease to a Large Wave Washer (20) and
slide it onto the Left Crank Arm (42). Then, attach
the Left Pedal Arm (21) to the Left Crank Arm with
an M8 x 25mm Patch Screw (70) and an M8 Large
Washer (81).
Repeat this step for the other side of the elliptical
exerciser.
See step 3. Tighten the four M8 x 19mm Patch
Screws (73).
7
Grease
20
81
70
23
64
21
6
65
42

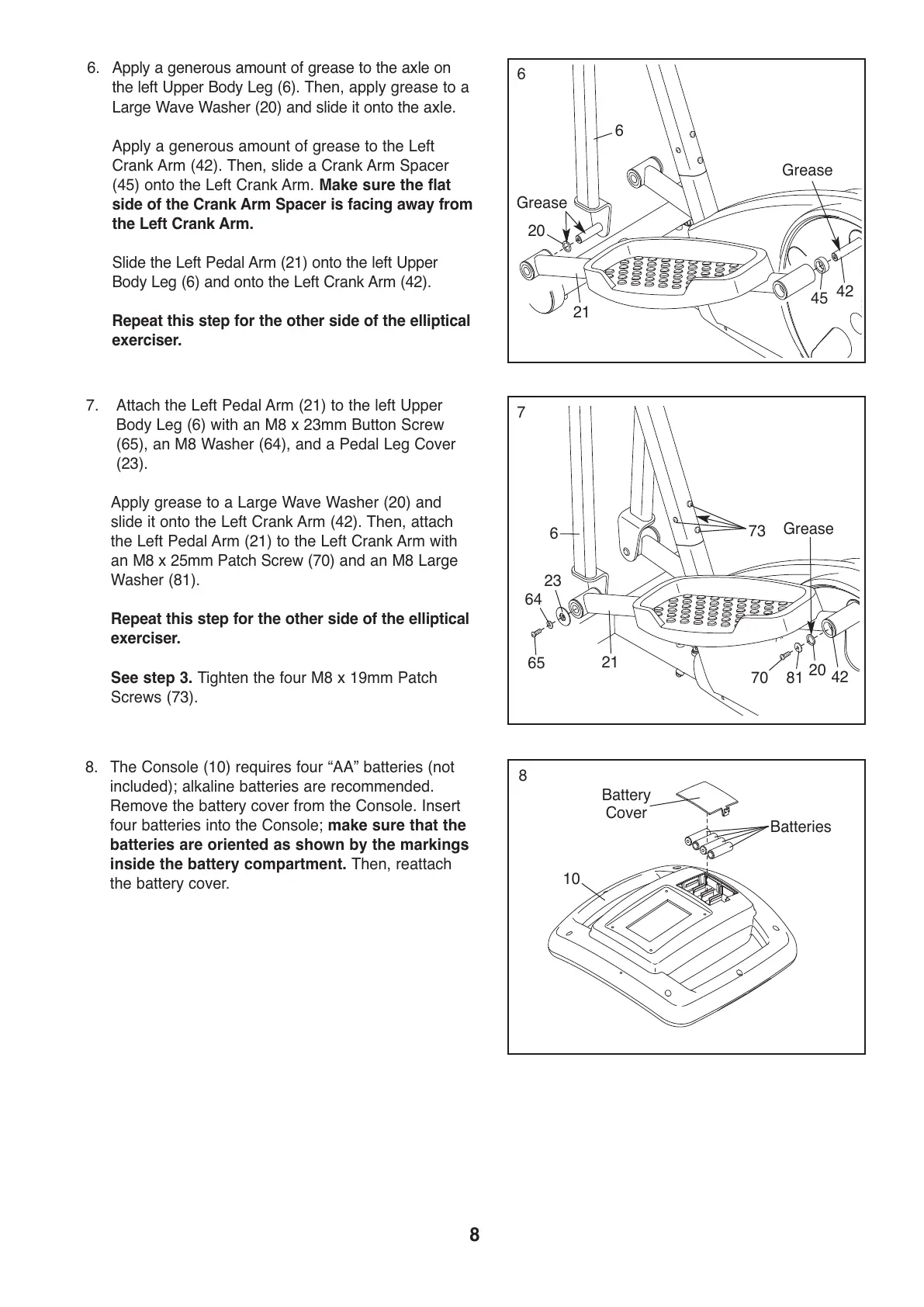

6. Apply a generous amount of grease to the axle on
t
he left Upper Body Leg (6). Then, apply grease to a
Large Wave Washer (20) and slide it onto the axle.
Apply a generous amount of grease to the Left
Crank Arm (42). Then, slide a Crank Arm Spacer
(45) onto the Left Crank Arm. Make sure the flat
s
ide of the Crank Arm Spacer is facing away from
the Left Crank Arm.
Slide the Left Pedal Arm (21) onto the left Upper
Body Leg (6) and onto the Left Crank Arm (42).
Repeat this step for the other side of the elliptical
exerciser.
6
6
21
20
G
rease
Grease
45
8
8. The Console (10) requires four “AA” batteries (not
included); alkaline batteries are recommended.
Remove the battery cover from the Console. Insert
four batteries into the Console; make sure that the
batteries are oriented as shown by the markings
inside the battery compartment. Then, reattach
the battery cover.
10
Batteries
Battery
Cover
42
