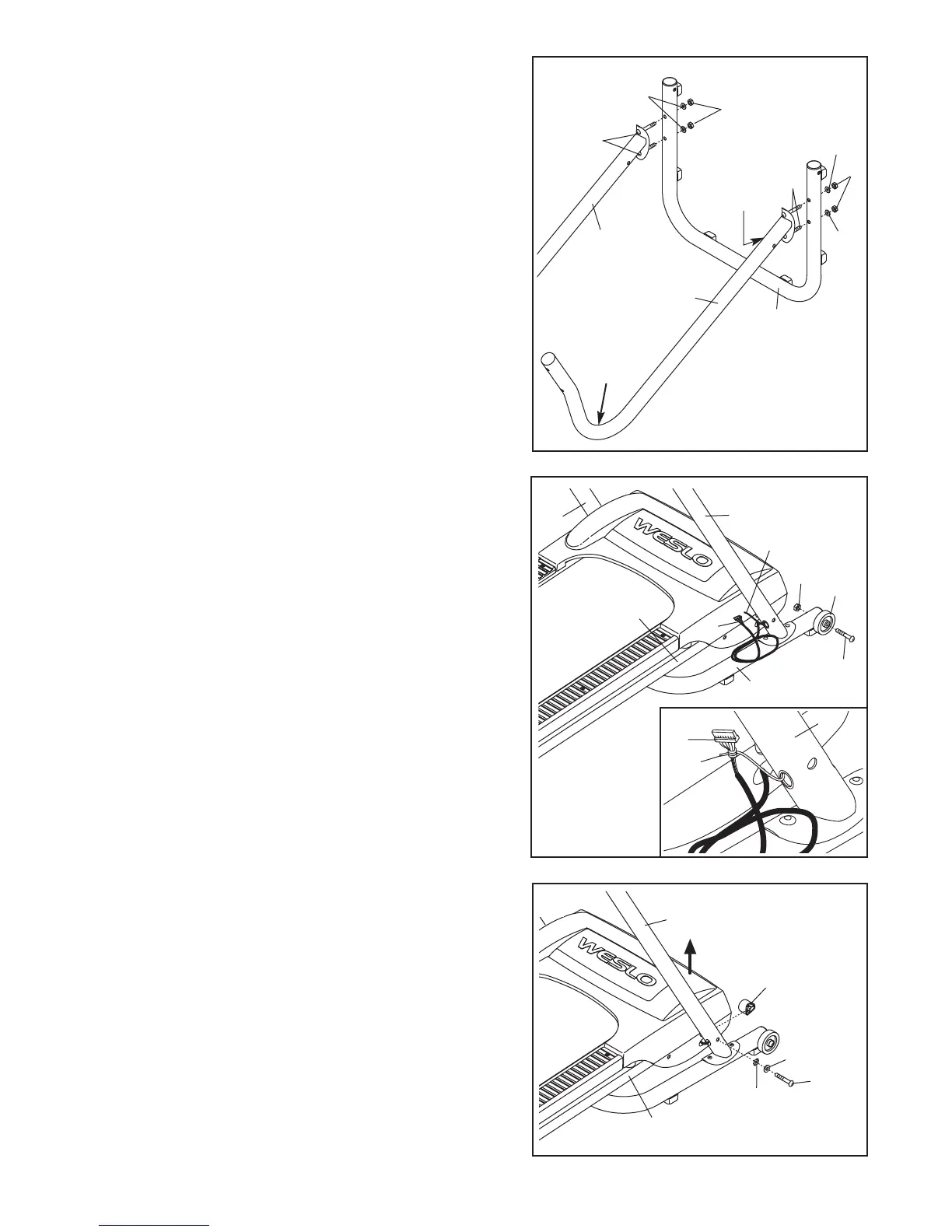

2. Have a second person hold the Base (71) in the position
shown.
Identify the Right Handrail (6) which has a large hole near
t
he lower end.
Hold the Right Handrail (6) so that the bend is in the
position shown. Insert two Handrail Bolts (12) into the
bracket on the Right Handrail. Attach the Right Handrail
to the Base (71) with the Handrail Bolts, two Handrail
Washers (30) and two Nuts (17). Do not tighten the
Nuts yet.
Attach the Left Handrail (7) to the Base (71) in the same
way.
2
6
7
71
17
1
2
1
7
30
30
30
12
Large
Hole
Bend
4. Have a second person lift and hold the front end of the
Frame (55). Hold a Frame Spacer (13) between the Right
Handrail (6) and the Frame. Attach the Right Handrail to
the Frame with a Frame Bolt (10), a Handrail Washer
(30), and a Handrail Star Washer (60).
Repeat this step on the left side of the treadmill.
13
55
60
10
30
6
3. With the help of a second person, raise the Handrails
(6, 7) so the Base (71) is flat on the floor as shown.
Attach the Wheels (15) to the outer sides of the Base
(71) with two Wheel Bolts (14) and two Wheel Nuts (A)
as shown.
Do not overtighten the Nuts; the Wheels
should turn freely.
Position the front of the treadmill Frame (55) between the
Handrails (6, 7) as shown. Next, locate the long wire in-
side of the lower end of the Right Handrail (see the inset
drawing). Tie the end of the wire securely to the end of
the Wire Harness (22). Then, use the the opposite end of
the wire to pull the Wire Harness through the Right
Handrail until the Wire Harness extends from the upper
end of the Right Handrail.
22
71
A
15
14
6
55
3
22
6
Wire
Wire
4
7
7
To Next Page
