6
ASSEMBLY
T
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Do not remove the long wire inside the Right
Handrail until instructed. Note: The underside of the treadmill walking belt is coated with high-performance lubri-
cant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping
carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own phillips screwdriver , adjustable
wrench , and wire cutters .

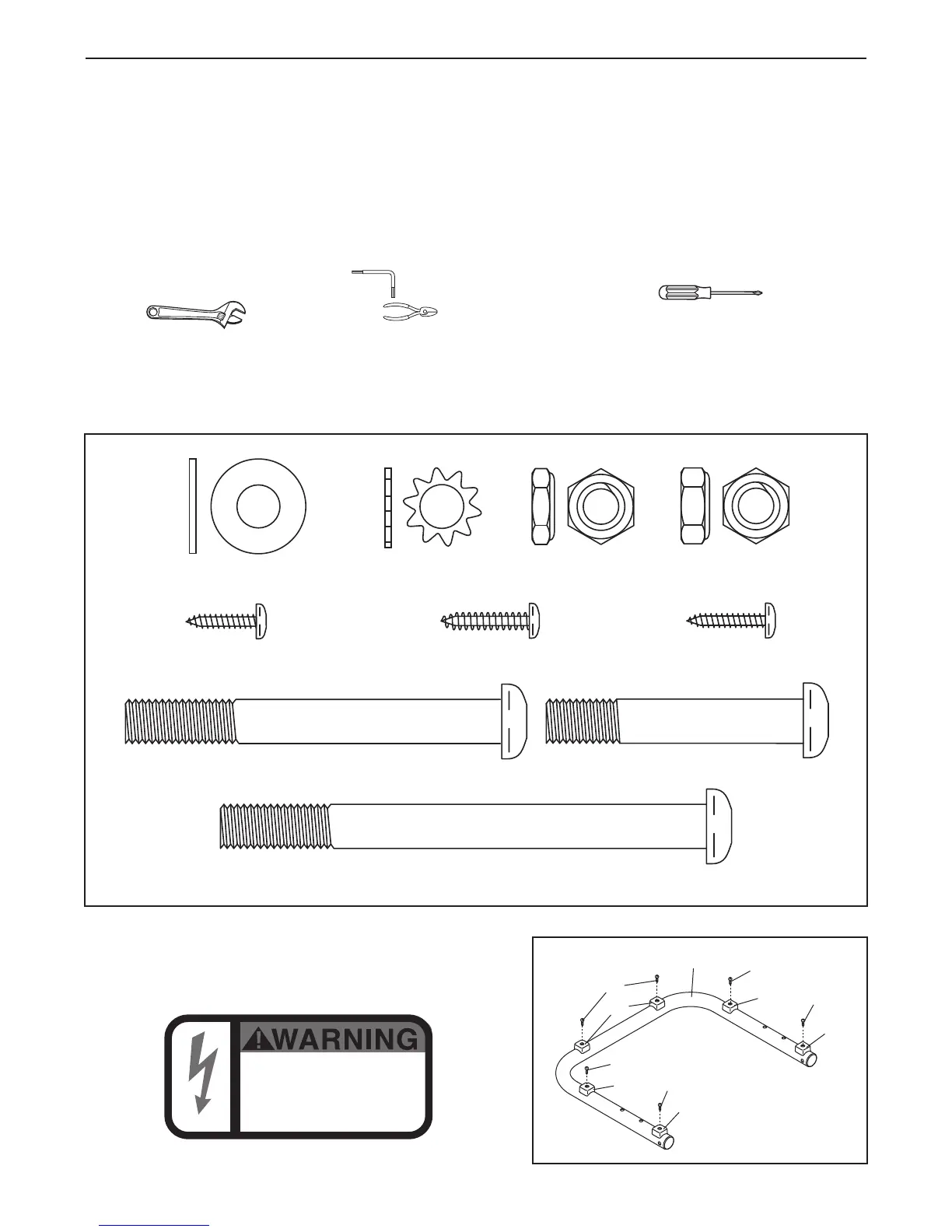

Use the part drawings below to identify the small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 21. The second number is the quantity
needed for assembly.
Note: Some parts may be preassembled. To avoid damaging plastic parts, do not use
power tools for assembly.
Frame Bolt (10)–2
Wheel Bolt (14)–2
Console Screw
(70)–4
Nut (17)–4
Base Pad
Screw (42)–6
Handrail Star
Washer (60)–2
Handrail Washer (30)–6
Handrail Bolt (12)–4
16mm Screw
(58)–6
Wheel Nut
(A)–2
1. Attach the six Base Pads (19) to the bottom of the Base
(71) with six Base Pad Screws (42). Note: The Base
Pads may be preassembled.
71
42
42
19
19
1
42
42
19
42
19
19
¥Hazardous Voltage
¥Risk of Electric Shock
¥Unplug Treadmill before Assembly
/Disassembly.
