7
65
65
1
B
oss
B
oss
B
attery
Access
16
4
22
9. Make sure that all parts used in assembly are properly tightened before you use the treadmill. Keep the
included allen wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 13). To
protect the floor or carpet, place a mat under the treadmill.

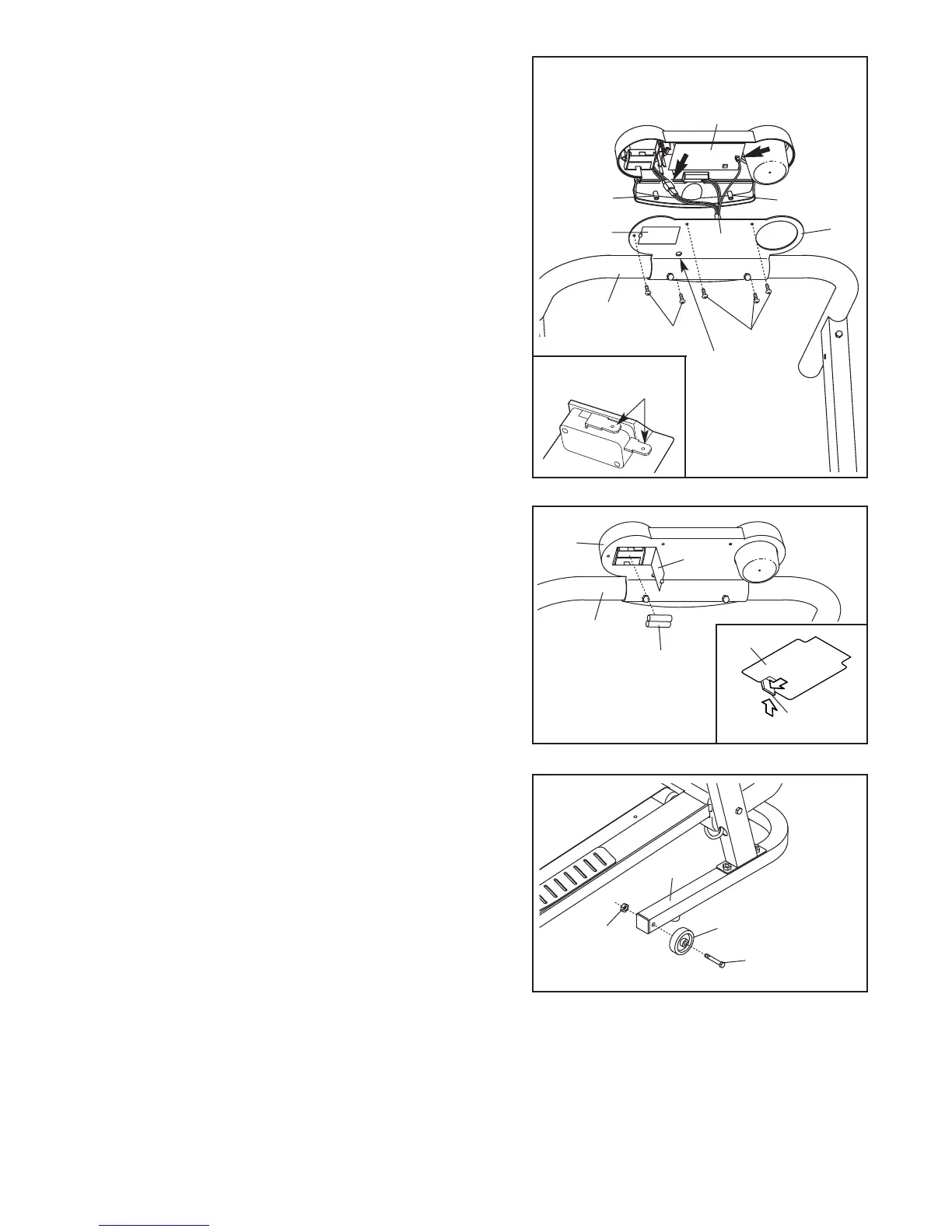

6. Hold the Console (1) near the Console Plate (4). Touch
the Handrail (16) to discharge any static.
Locate the two wires in the Wire Harness (22) that have
L
-shaped connectors on the ends. Press the connectors
onto the two tabs on the switch shown in inset drawing
6a. Connect the other two wires in the Wire Harness to
the back of the Console (1) in the locations shown by the
arrows in drawing 6.
If the connectors do not fit to-
gether easily, rotate them and then connect them.
Set the Console (1) on the Console Plate (4). IMPOR-
TANT: Keep the Wire Harness (22) away from the bat-
tery access opening and the indicated bosses. Make
sure that no wires are pinched.
Finger tighten the five 3/4” Screws (65) into the Console
Plate (4) and the Console (1) only in the locations shown
and not in the indicated hole. IMPORTANT: Make sure
that no wires are damaged by the Screws.
After all five
Screws have been started, firmly tighten them.
6a
Tabs
14
15
28
36
8. Attach a Wheel (15) to each side of the Base (28) with a
Wheel Bolt (14) and a Nut (36).
No
Screw
6
8
7. Note: The Console (1) requires two "AA" batteries (not in-
cluded). Alkaline batteries are recommended.
Before inserting batteries into the Console (1), touch
the Handrail (16) to discharge any static. Next, open
the Battery Cover (8). Press two batteries into the battery
compartment, with the negative (–) ends of the batteries
touching the springs. Then, close the battery cover, push
up on the tab, and push the tab forward as shown in the
inset drawing. Make sure that the tab locks into place.
Tab
8
Batteries
16
8
7
1
To Next Page
