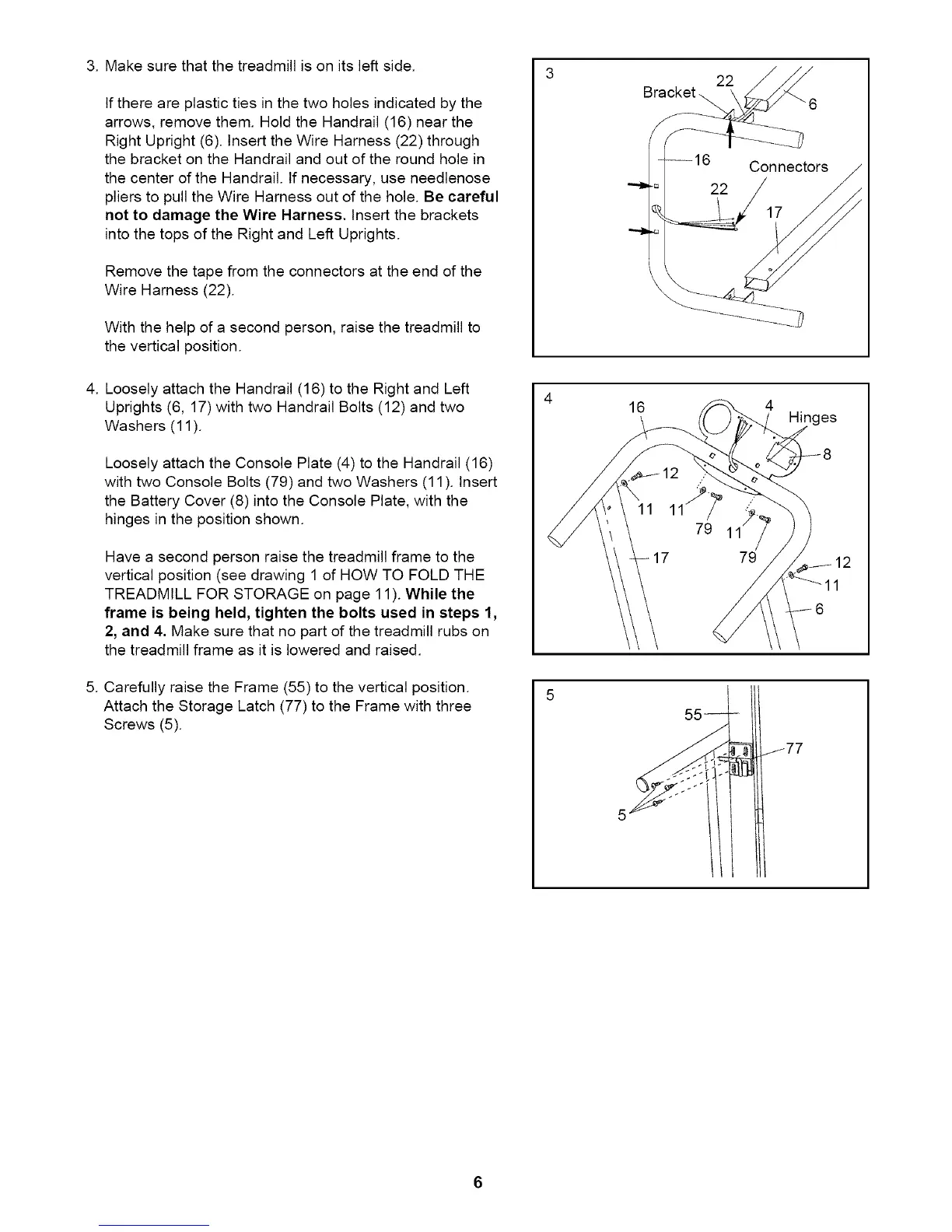

3.Makesurethatthetreadmillisonitsleftside.
Ifthereareplastictiesinthetwoholesindicatedbythe
arrows,removethem.HoldtheHandrail(16)nearthe
RightUpright(6).InserttheWireHarness(22)through
thebracketontheHandrailandoutoftheroundholein
thecenteroftheHandrail.Ifnecessary,useneedlenose
pliersto pulltheWireHarnessoutofthehole.Becareful
notto damagetheWireHarness.Insertthebrackets
intothetopsoftheRightandLeftUprights.
Removethetapefromtheconnectorsattheendofthe
WireHarness(22).
Withthehelpofasecondperson,raisethetreadmillto
theverticalposition.
4.LooselyattachtheHandrail(16)totheRightandLeft
Uprights(6,17)withtwoHandrailBolts(12)andtwo
Washers(11).
LooselyattachtheConsolePlate(4)totheHandrail(16)
withtwoConsoleBolts(79)andtwoWashers(11).Insert
theBatteryCover(8)intotheConsolePlate,withthe
hingesinthepositionshown.
Haveasecondpersonraisethetreadmillframetothe
verticalposition(seedrawing1ofHOWTOFOLDTHE
TREADMILLFORSTORAGEonpage11).Whilethe
frameis beingheld,tightentheboltsusedinsteps1,
2,and4.Makesurethatnopartof thetreadmillrubson
thetreadmillframeasitisloweredandraised.
5.CarefullyraisetheFrame(55)totheverticalposition.
AttachtheStorageLatch(77)totheFramewiththree
Screws(5).
