8

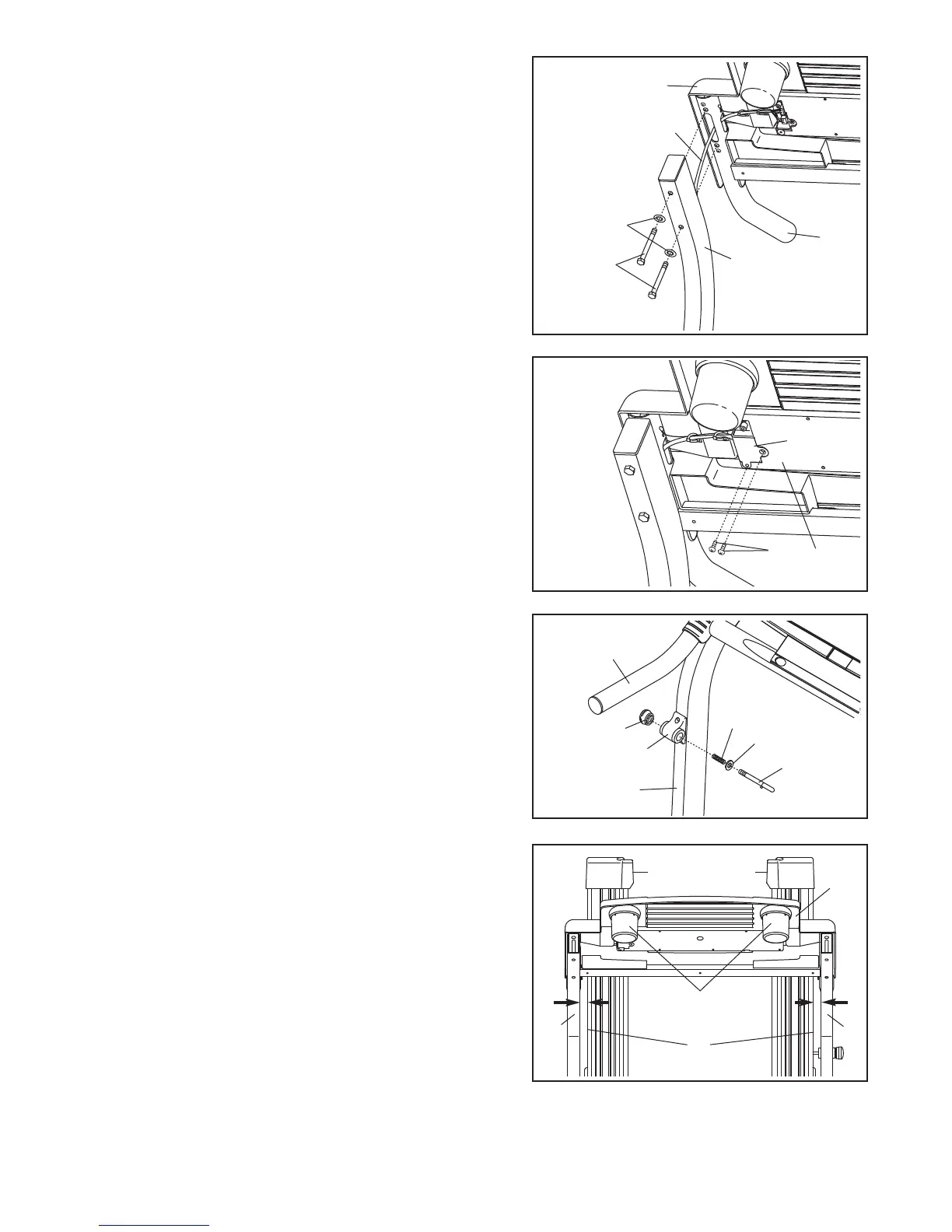

8. Hold the Connector Cover (110) on the Console Base
(87) in the position shown. Attach the Connector Cover
to the Console Base with two 3/4” Screws (68).
68
110
87
9. Remove the Lock Knob (105) from the Lock Pin (11).
Make sure that the Lock Pin Collar (14) and the Spring
(56) are on the Lock Pin as shown. Insert the Lock Pin
into the Storage Latch (77) and tighten the Lock Knob
onto the Lock Pin.
77
9
85
14
56
11
9
8
105
7. Insert the excess Wire Harness (17) down into the Right
Upright (10) as you set the right Handrail (85) on the Right
Upright.
Hand tighten two 4” Bolts (89) with Star Washers
(A) through the Right Upright and into the right Handrail. Be
c
areful not to pinch the Wire Harness. Do not tighten
the Bolts yet.
Attach the left Handrail to the Left Upright (not shown) in
the same way. Note: There is not a wire harness in the
Left Upright.
89
10
A
8
7
85
17
7
11.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrench in a secure place; the allen wrench is used to adjust the walking
belt (see page 23). To protect the floor or carpet from damage, place a mat under the treadmill.
10.
Lower the Uprights (9, 10) until the Handrails (not
shown) are touching the floor. Make sure that the tread
-
mill Frame (12) is centered between the Uprights. See
step 3. Firmly tighten the four 3” Bolts (47). See step 7.
Firmly tighten the four
4” Bolts (89). Raise the Uprights
back to the vertical position.
Make sure that the two Cup Holders (118) are pressed
into the round holes on top of the Console Base (87).
9
10
12
Top View
10
87
118
To Next Page
