10
12. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place. The large hex key is used to adjust the walking belt (see page 17). To protect the floor or
carpet, place a mat under the treadmill.

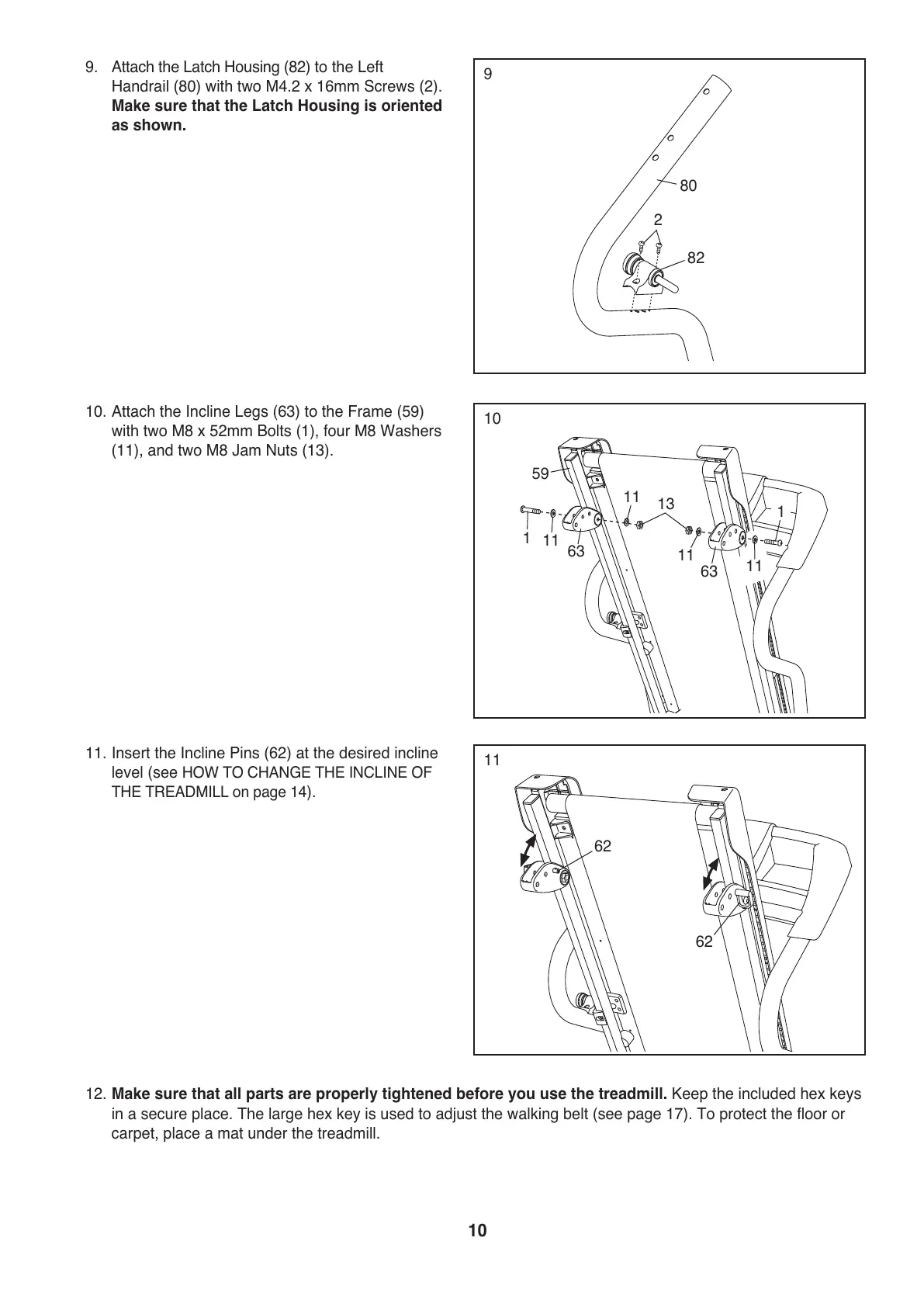

9. Attach the Latch Housing (82) to the Left
Handrail (80) with two M4.2 x 16mm Screws (2).
Make sure that the Latch Housing is oriented
as shown.
9
8
0
82
2
10. Attach the Incline Legs (63) to the Frame (59)
with two M8 x 52mm Bolts (1), four M8 Washers
(11), and two M8 Jam Nuts (13).
10
59
11. Insert the Incline Pins (62) at the desired incline
level (see HOW TO CHANGE THE INCLINE OF
THE TREADMILL on page 14
).
11
1
11
63
11
13
11
63
11
1
62
62
