9

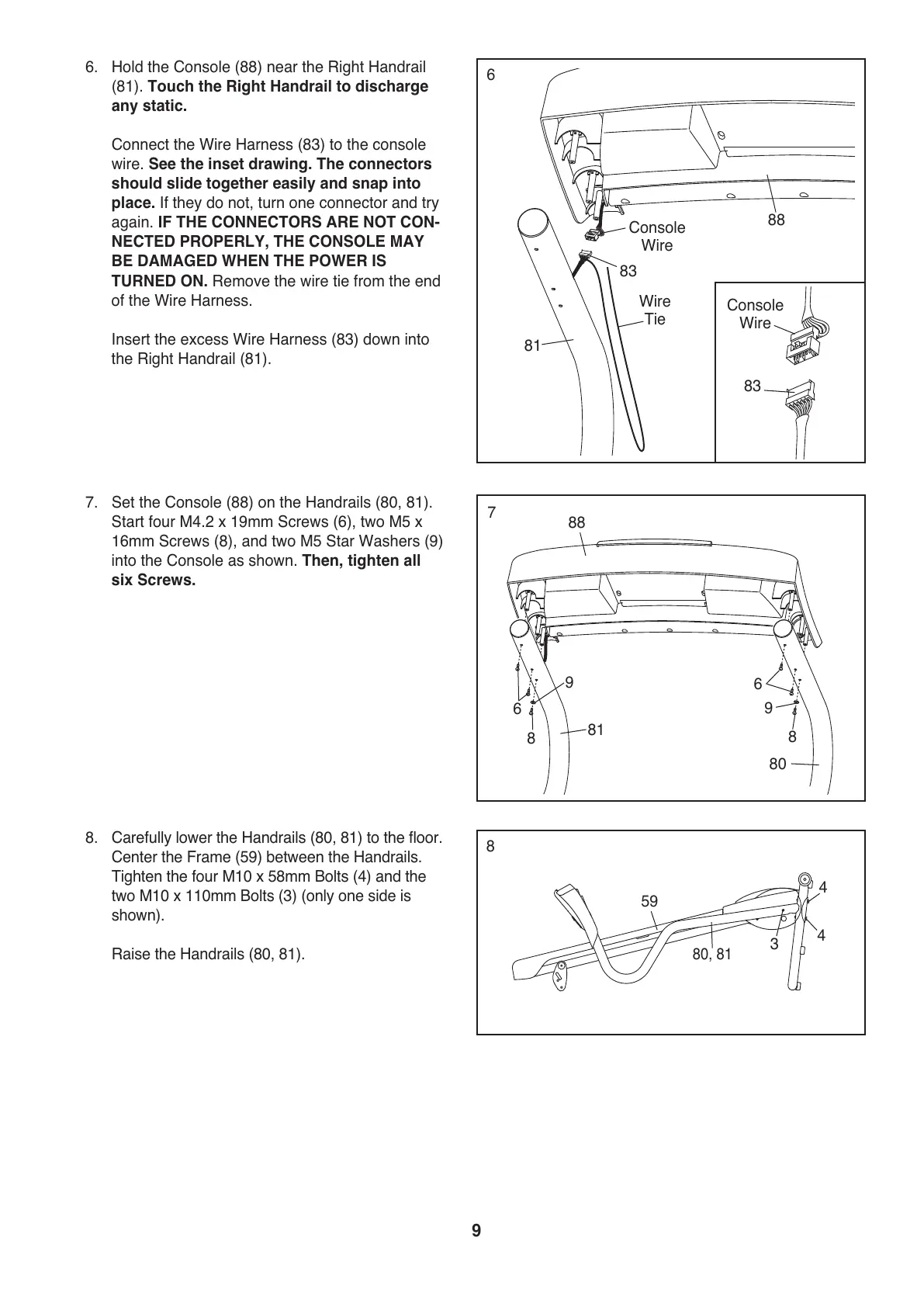

6. Hold the Console (88) near the Right Handrail
(81). Touch the Right Handrail to discharge
a
ny static.
Connect the Wire Harness (83) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
a
gain. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the wire tie from the end
of the Wire Harness.
Insert the excess Wire Harness (83) down into
the Right Handrail (81).
8
8
81
83
6
83
7. Set the Console (88) on the Handrails (80, 81).
Start four M4.2 x 19mm Screws (6), two M5 x
16mm Screws (8), and two M5 Star Washers (9)
into the Console as shown. Then, tighten all
six Screws.
88
81
6
7
8. Carefully lower the Handrails (80, 81) to the floor.
Center the Frame (59) between the Handrails.
Tighten the four M10 x 58mm Bolts (4) and the
two M10 x 110mm Bolts (3) (only one side is
shown).
Raise the Handrails (80, 81).
59
80, 81
8
Wire
Tie
Console
Wire
Console
Wire
6
9
8
9
8
80
4
4
3
