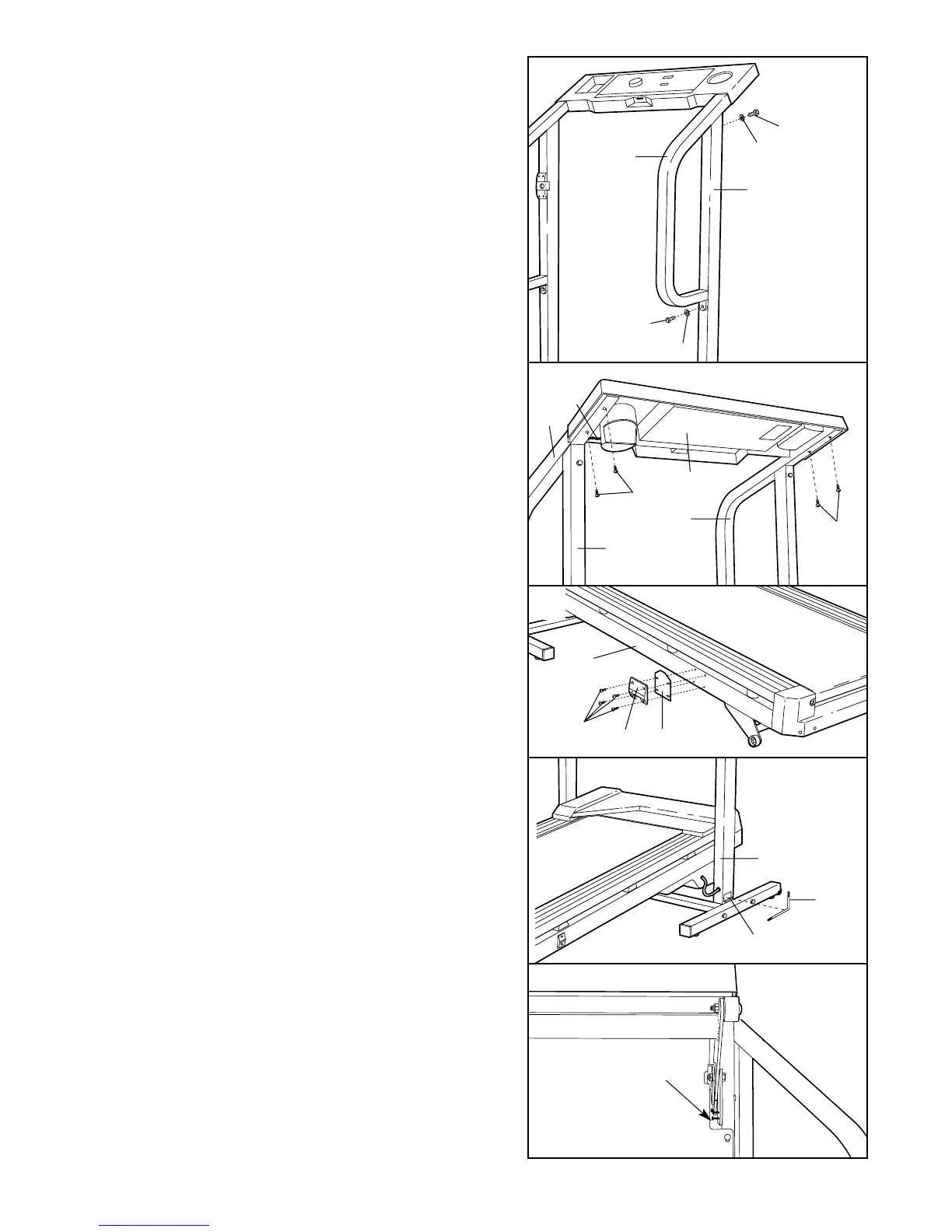

4. Thread a 1/4” x 1” Bolt (23) with a 1/4” Washer (22)
two turns into the upper end of the right Upright (31)
and the Right Handrail (32). Do not tighten the
Bolt yet.
Thread a 1/4” x 1” Bolt (23) with a 1/4” Washer (22)
two turns into the lower end of the Right Handrail
(32) and the right Upright (31). Do not tighten the
Bolt yet.
5. Set the Console Base (12) on the Handrails (30, 32).
Make sure that the Wire Harness (28) is out of the
way as you loosely thread four Console Base
Screws (91) into the Handrails and the Console
Base. Next, push the Wire Harness down the right
Upright (31). It may be necessary to pull the Wire
Harness out the bottom of the right Upright.
Tighten all parts used in steps 2 and 5. Then,
tighten the Console Base Screws (91) used in
this step.
8. Make sure that all parts are tight before you use
the treadmill. Note: The ratchet screws shown at
the right are factory set and should not be adjust-
ed.
Some parts may be left over after assembly is com-
pleted. To protect the floor or carpet from damage,
place a mat under the treadmill.
7
22
23
23
22
31
32
4
91
28
12
91
30
31
32
5
8
Ratchet
Screws
6. Attach the Frame Guide (94) and the Frame Guide
Spacer (96) to the left side of the Frame (76) with
four Screws (48). Note: Be careful not to over-
tighten the Screws. Make sure that the thick end
of the Frame Guide is at the bottom.
96
48
76
94
31
90
51
7
7. Remove the backing from the Wrench Clip (51).
Press the Wrench Clip onto the base of the right
Upright (31) in the indicated location. Press the Allen
Wrench (90) into the Wrench Clip.
6
