5. Set the Console Base (87) on the Handrails (4, 32).
Route the Wire Harness (53) as shown. Attach the
Wire Harness to the Right Handrail with the Wire
Harness Clip (13) and a Console Screw (5); do not
tighten the Console Screw yet. Then, loosely thread
the other three Console Screws (5) into the Handrails
and the Console Base. After all four Console Screws
are threaded, firmly tighten them; be careful not to
overtighten the Console Screws. Insert the excess
Wire Harness into the Right Handrail.
Tighten the four Handrail Bolts (1) used in step 4.
6. The Console (87) requires two "AA" batteries (not
included); alkaline batteries are recommended.
Open the Battery Cover (7) as shown. Press two bat-
teries into the battery compartment, with the negative
(–) ends of the batteries touching the springs. Close
the battery cover, push up on the battery cover tab,
and then push the tab forward as shown in the inset
drawing. Be sure that the tab locks into place.
7. Make sure that all parts are tight before you use the treadmill. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
6
6
87
7
Batteries
Battery Cover Tab
5
87
32
4
5
53
13
5

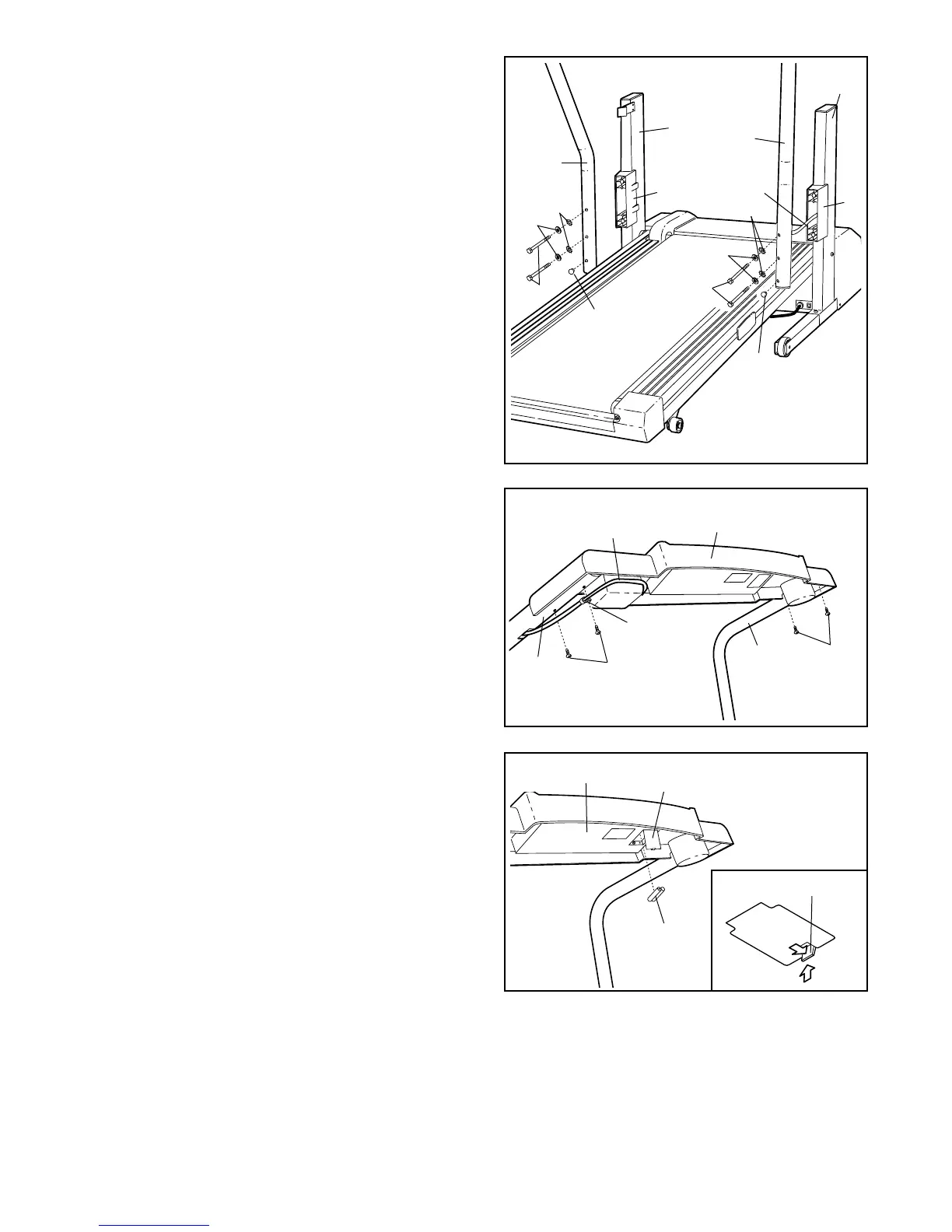

4. Attach the Left Handrail (4) to the left Handrail Spacer
(3) and the left Upright (38) with two Handrail Bolts (1),
two Handrail Washers (80), and two Internal Washers
(2) as shown. Do not tighten the Handrail Bolts yet.
Note: If you are 5’ 8” or taller, use the lower two
holes in the Left Handrail; if you are shorter than 5’
8”, use the upper two holes.
Refer to drawing 5. Have a second person hold the
Console Base (87) near the Right Handrail (32). Feed
the excess Wire Harness (53) into the upper end of
the right Handrail, while pulling the excess from the
bottom of the Handrail. Then, insert the excess Wire
Harness into the right Upright (38) (see drawing 4).
Attach the Right Handrail (32) to the right Handrail
Spacer (3) and the right Upright (38) as described
above. Do not tighten the Handrail Bolts (1) yet.
Insert a Handrail Cap (70) into the unused hole in
each Handrail (4, 32).
80
70
1
4
32
3
38
38
3
53
2
80
70
1
2
4
