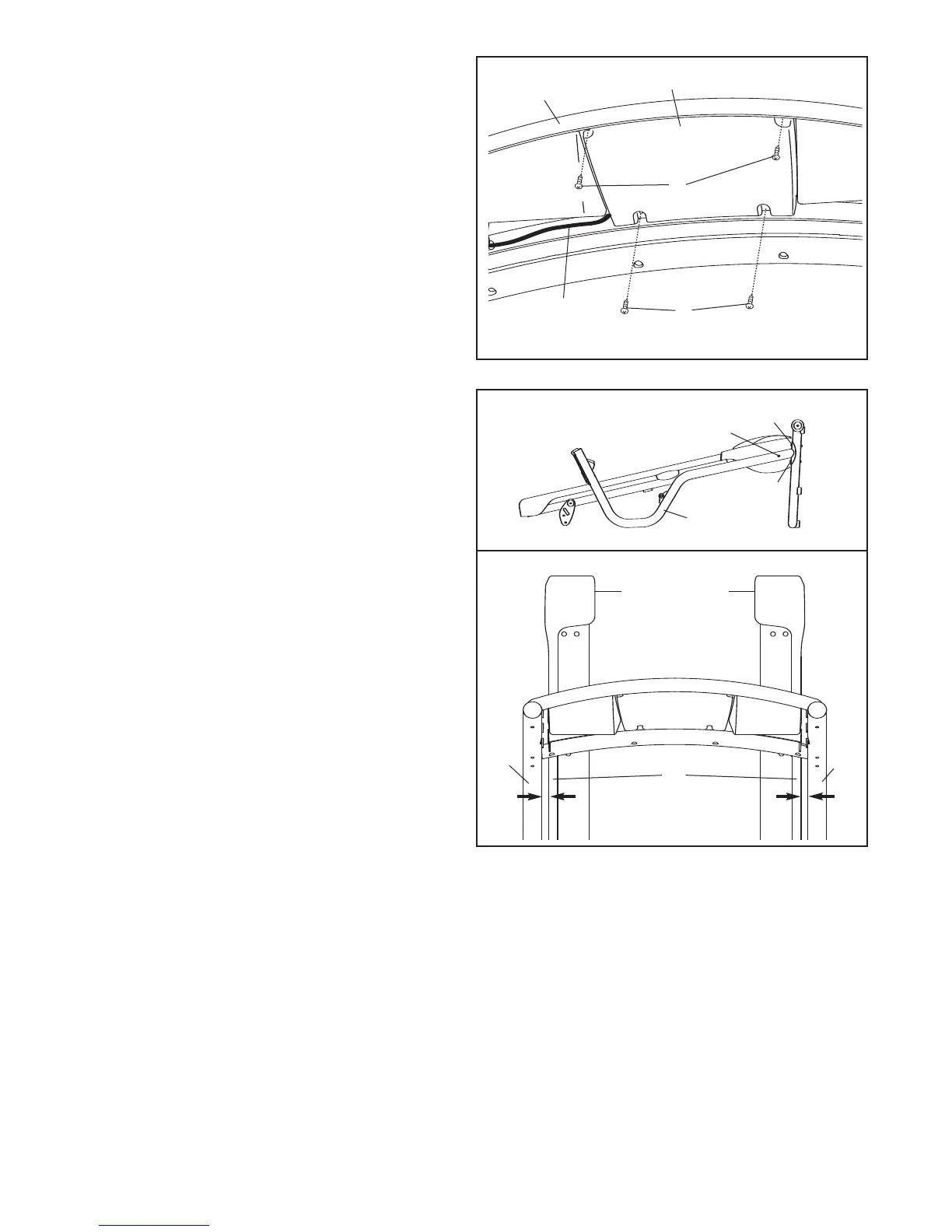

. Attach the Console Back (93) to the Console
Assembly (91) with four Console Back Screws
(4). Note that there is a slot in the side of the
Console Back for the Wire Harness (98).
Make
s
ure that no wires are pinched.
6
9
3
98
4
4
9
1
7.
Carefully lower the Handrails (53, 54) until they
are touching the floor.
See the lower drawing. Position the Handrails
(53, 54) so that the treadmill Frame (51) is cen-
tered between the Handrails.
Firmly tighten the four Handrail Bolts (2) and the
two Frame Pivot Bolts (1).
Be careful not to
overtighten the Frame Pivot Bolts.
7
2
2
53, 54
1
53
51
54
Top View
To Next Page
