7

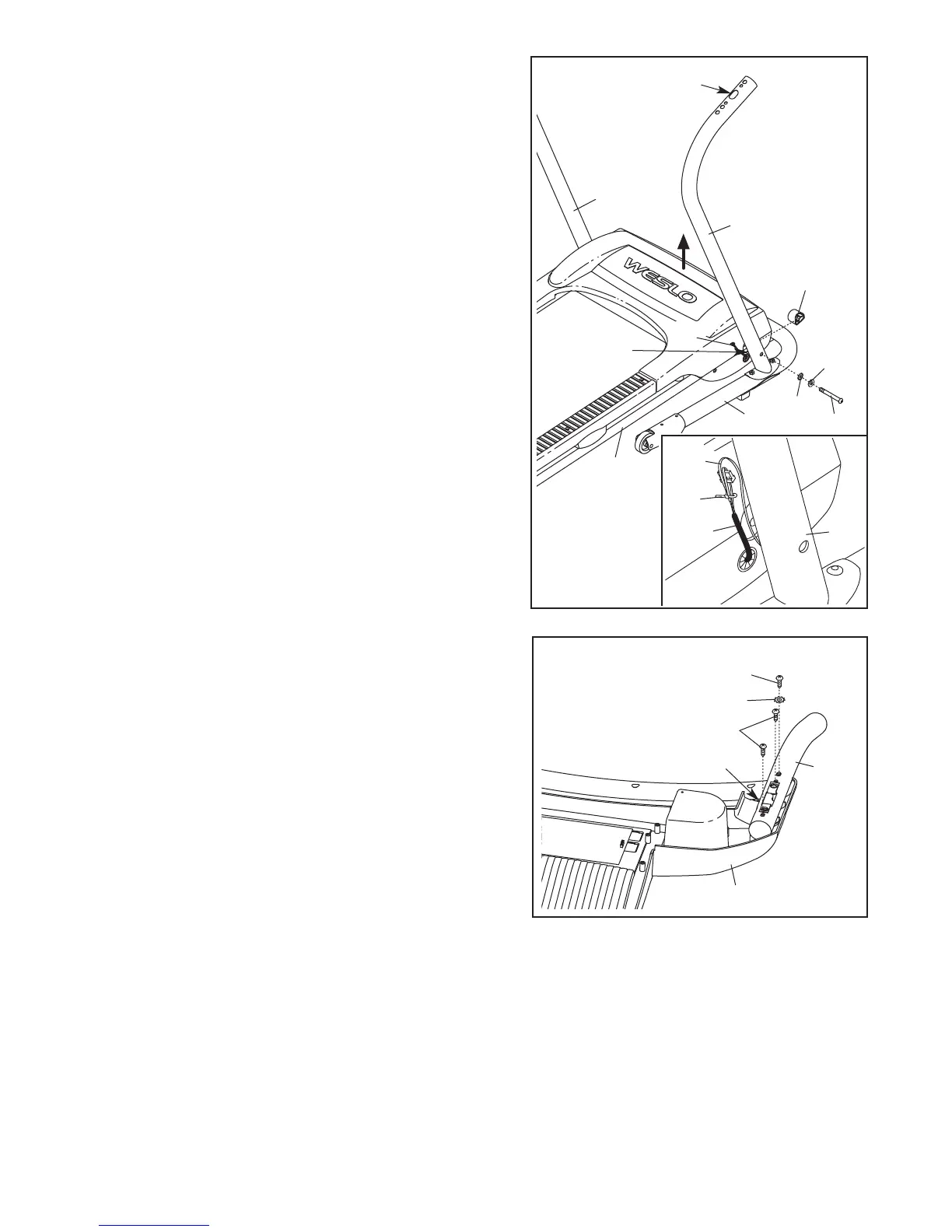

3. With the help of a second person, raise the Uprights
(53, 54) so the Base (52) is flat on the floor as shown.
N
ext, position the front of the treadmill Frame (51) between
the Uprights.
See the inset drawing. Locate the wire inside of the lower
end of the Right Upright (54). Secure the wire to the Wire
Harness (98) using the included plastic tie. Then, pull the
upper end of the wire until the end of the Wire Harness is
extending from the indicated hole in the upper end of the
Right Upright.
Have a second person lift and hold the front end of the
Frame (51). Hold a Frame Spacer (111) between the Right
Upright (54) and the Frame. Attach the Right Upright and
the Frame Spacer to the Frame with a Frame Bolt (1), a
Frame Washer (14), and a Frame Star Washer (9).
Repeat this step on the left side of the treadmill.
9
111
52
14
1
5
4
51
Large
Hole
H
ole
3
53
98
54
Tie
98
4. Turn the Console Assembly (91) face-down. Be careful
not to scratch the face of the Console Assembly.
Identify the Right Handrail (55), which has a large hole in
one side.
Attach the Right Handrail (55) to the Console Assembly
(91) with two Console Screws (4), a Crossbar Screw (5),
and a Crossbar Star Washer (12).
12
91
4
Large Hole
5
55
4
Wire
To Next Page
