9. Carefully lower the Handrails (55, 56) to the floor. Center
the Frame (51) between the Handrails, and tighten the
four Upright Bolts (2). Then, raise the Handrails back to
the vertical position.
See the inset drawing. Attach the Latch Assembly (108) to
the Left Upright (53) with two Latch Screws (7).
Make
sure that the Latch Assembly is oriented as shown.
See HOW TO CHANGE THE INCLINE OF THE TREAD-
MILL on page 14
. Adjust the incline of the treadmill as de-
sired.
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt
(see page 18). To protect the floor or carpet, place a mat under the treadmill.
108
53
7

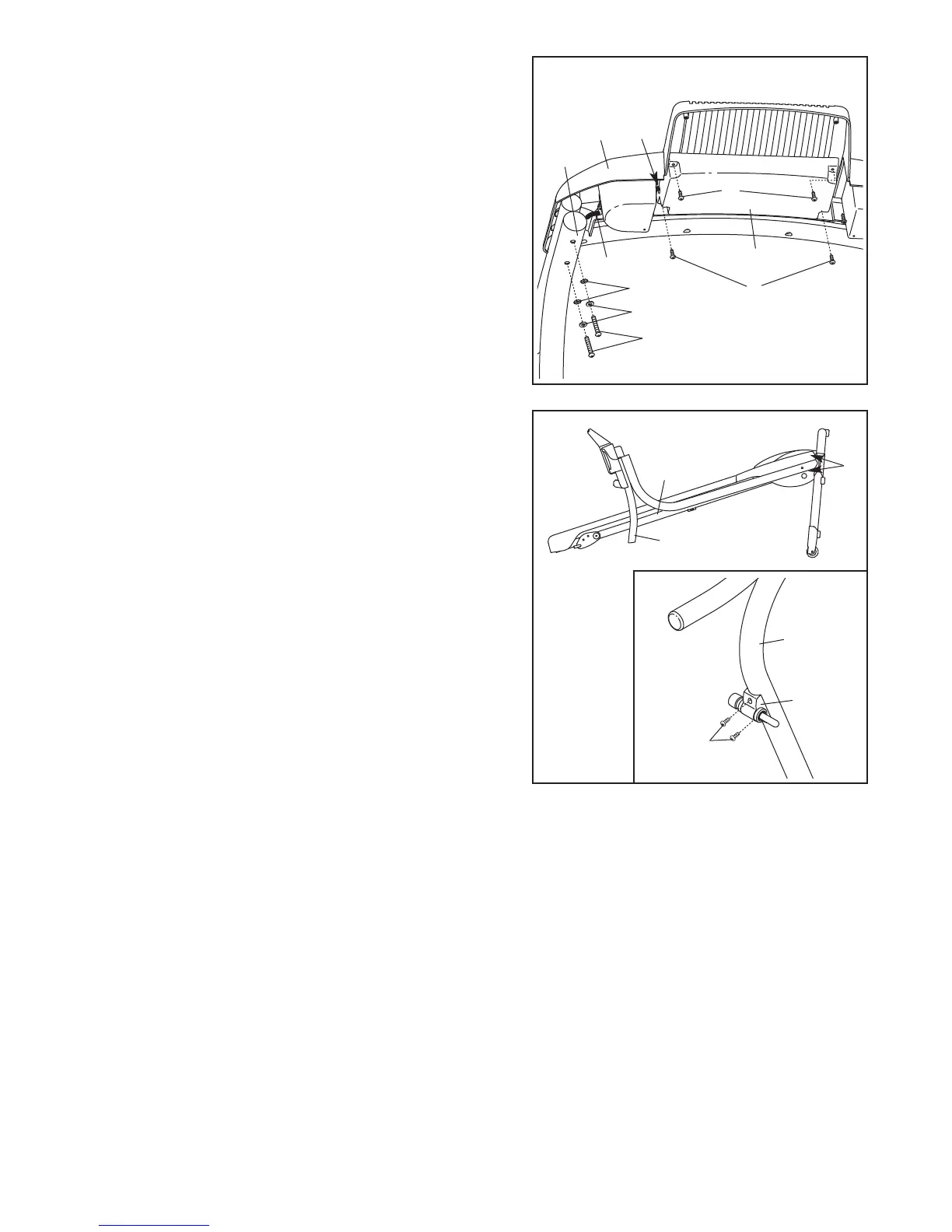

8. Set the Console Assembly (91) on the Right Upright (54)
and the Left Upright (not shown). Next, start four Handrail
B
olts (3) with four Handrail Washers (13) and four
Handrail Star Washers (10) (only two of each are shown)
i
nto the Right Upright and the Left Upright. T
hen, tighten
all four Handrail Bolts.
Insert the slack in the Wire Harness (98) down into the
Right Upright (54).
Attach the Console Back (93) to the Console Assembly
(91) with four Console Back Screws (7).
Make sure that
the Wire Harness (98) is in the indicated slot in the
Console Back and that no wires are pinched.
9
1
54
7
7
10
98
Slot
13
3
93
8
9
55, 56
51
2
