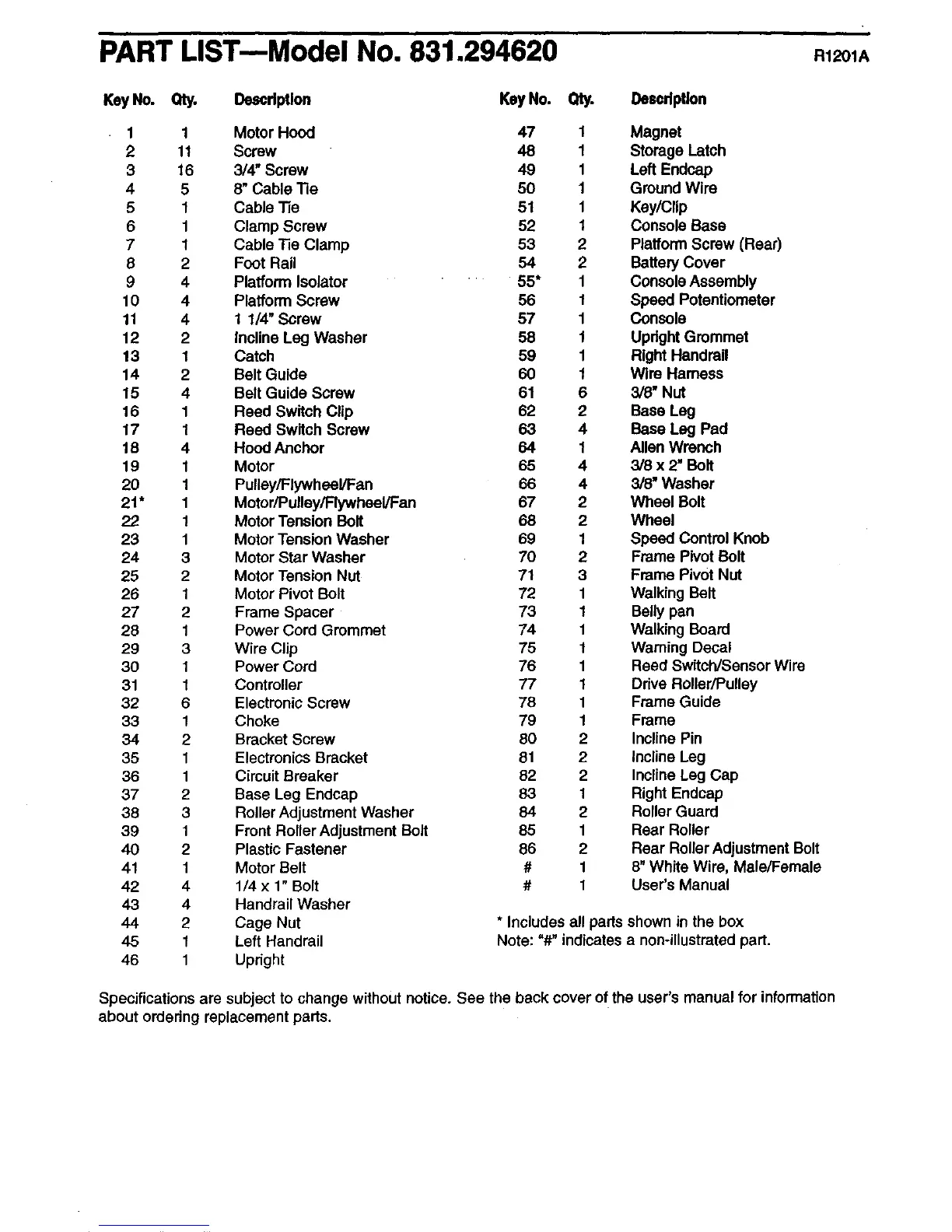

PART LIST-Model No. 831.294620 R12O1A
Key No. Qty. Description Key No. Qty. Description
1 1 Motor Hood 47 1 Magnet
2 11 Screw 48 1 Storage Latch
3 16 3/4" Screw 49 1 Left Endcap
4 5 8" Cable Tie 50 1 Ground Wire
5 1 Cable Tie 51 1 Key/Clip
6 1 Clamp Screw 52 1 Console Base
7 1 Cable Tie Clamp 53 2 Platform Screw (Rear)
8 2 Foot Rail 54 2 Battery Cover
9 4 Platform Isolator •• 55* 1 Console Assembly
10 4 Platform Screw 56 1 Speed Potentiometer
11 4 1 1/4" Screw 57 1 Console
12 2 Incline Leg Washer 58 1 Upright Grommet
13 1 Catch 59 1 Right Handrail
14 2 Belt Guide 50 1 Wire Harness
15 4 Belt Guide Screw 61 6 3/8" Nut
16 1 Reed Switch Clip 62 2 Base Leg
17 1 Reed Switch Screw 63 4 Base Leg Pad
18 4 Hood Anchor 64 1 Allen Wrench
19 1 Motor 65 4 3/8 x 2" Bolt
20 1 Puney/Flywheel/Fan 66 4 3/8" Washer
21" 1 Motor/Pulley/Flywheel/Fan 67 2 Wheel Bolt
22 1 Motor Tension Bolt 68 2 Wheel
23 1 Motor Tension Washer 69 1 Speed Control Knob
24 3 Motor Star Washer 70 2 Frame Pivot Bolt
25 2 Motor Tension Nut 71 3 Frame Pivot Nut
26 1 Motor Pivot Bolt 72 1 Walking Belt
27 2 Frame Spacer 73 1 Belly pan
28 1 Power Cord Grommet 74 1 Walking Beard
29 3 Wire Clip 75 1 Warning Decal
30 1 Power Cord 76 1 Reed Switch/Sensor Wire
31 1 Controller 77 1 Drive Roller/Pulley
32 6 Electronic Screw 78 1 Frame Guide
33 1 Choke 79 1 Frame
34 2 Bracket Screw 80 2 Incline Pin
35 1 Electronics Bracket 81 2 Incline Leg
36 1 Circuit Breaker 82 2 Incline Leg Cap
37 2 Base Leg Endcap 83 1 Right Endcap
38 3 Roller Adjustment Washer 84 2 Roller Guard
39 1 Front Roller Adjustment Bolt 85 1 Rear Roller
40 2 Plastic Fastener 86 2 Rear Roller Adjustment Belt
41 1 Motor Belt # 1 8" White Wire, Male/Female
42 4 1/4 x 1" Bolt # 1 User's Manual
43 4 Handrail Washer
44 2 Cage Nut * Includes all parts shown in the box
45 1 Left Handrail Note: "#" indicates a non-illustrated part.
46 1 Upright
Specifications are subject to change without notice. See the back cover of the user's manual for information
about ordering replacement parts.
